Help CenterCoil Slitting Machine Automatic Paper and Aluminum Slitting Rewinder 150 M/min Production Capacity 1000mm 600mm 700mm
Related Products
-
Automatic Paper Reel Cutting MachineNegotiableMOQ: 1 -
DP-1300 Slitter Rewinder for Roll Plastic FilmsNegotiableMOQ: 1
-
Aluminum Foil High Speed Die Cutting Slitting MachineNegotiableMOQ: 1
-
Insulation Paper Slitting Rewinding Machine Dp-650NegotiableMOQ: 1
-
Nonwoven Fabric Cutting MachineNegotiableMOQ: 1
aluminum coil slitting machine with waste discharge
Suitable for paper , PE, PET, double-sided tape, release paper and many other adhesive and non-adhesive materials.
Advantages:
Automatic Rewinding machine with waste discharge
- A. aluminum coil slitting machine Summarize:
This machine is used for laminating and slitting materials, with meter counter, length setting equipment, it will stop automatically. Photoelectric track and rectification system are used to control unwind and rewind tension. Main machine is of frequency conversion speed to regulation, magnetic powder Brake constant torque tension control the pulling/ waste discharge , double shaft to rewinding , rewinding pneumatic power knitted, fast speed loading and unload etc excellent feature . Enjoying characteristics such as fast slitting speed , high precision, easy operation and maintenance. It is indispensable equipment for industries such as electronic, insulation material , packing etc.
- B. aluminum coil slitting machine Main Technical parameters :
2.1 Max feeding width 700mm
2.2 Max rewinding diameter 600mm
2.3 Slitting speed 80m/min
2.4 Slitting precision ±0.2mm
2.5 Main Power 2.2KW
- C. aluminum coil slitting machine Introduction to the structure and working principle
3.1 The machine consists of unwinding , gas-liquid auto-correction , transmission, pulling and laminating, slitting, rolling, waste agencies, tension control device and electrical control components.

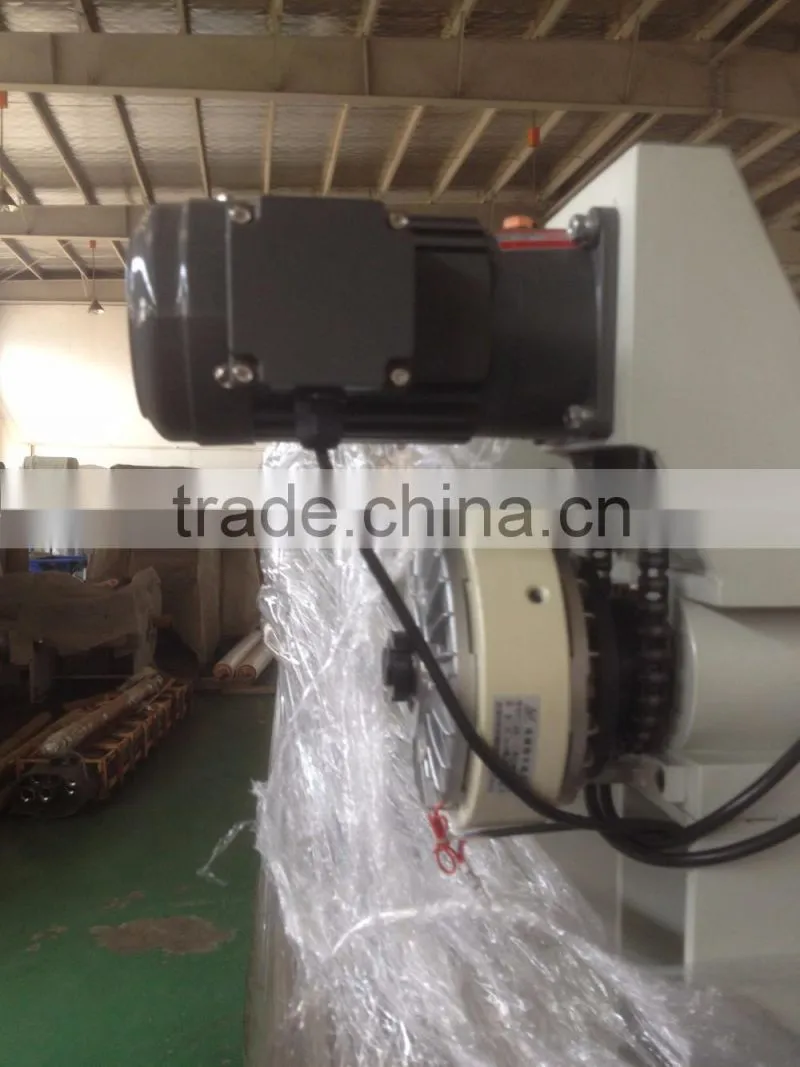

3.2 Function:Laminate the raw material with another material, and then slit to number of independent unit. The working principle is fix the raw material at the unwinding shaft, there is a magnetic powder cluth at one side of the unwinding shaft to control the raw material tension, Use a pair of rubble roller to laminating and pulling the raw material and the need laminating material, through the knife cutting to number of unit, through the guide bars pulling to the rewinding shaft, and rewinding the finished products. When A shaft full, then use the B shaft. Or A and B rewinding together .
| Model | 700 aluminum coil slitting machine |
| Max Feeding Width ( mm ) | 700 |
| Main Engine Power ( KW ) | 2.2 |
| Speed (M/M ) | 80 |
| Size ( mm ) | 2500*1700*1600 |
| Weight ( KG ) | 1000 |
| Rewinding Diameter (mm ) | 600 |
| Winding Diameter ( mm ) | 450 |
| Precision ( mm ) | ±0.10 |
| Power | 220V 50Hz |

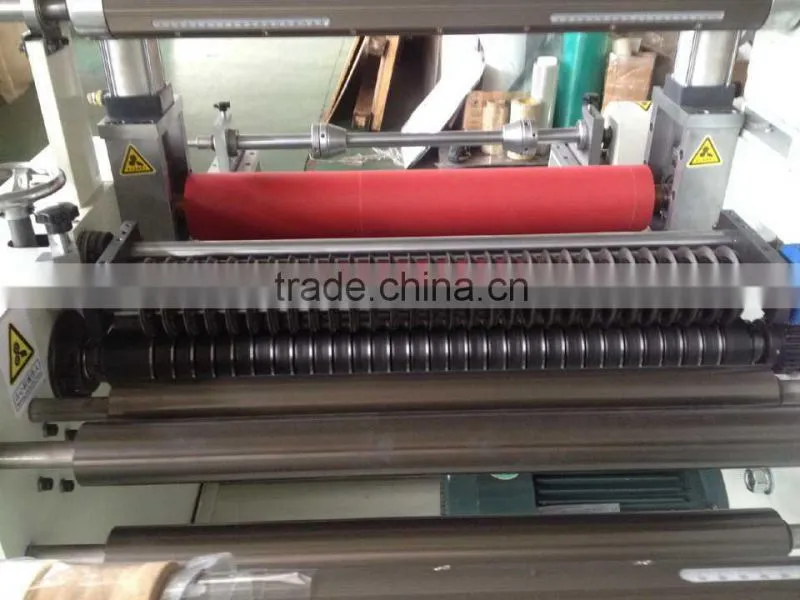

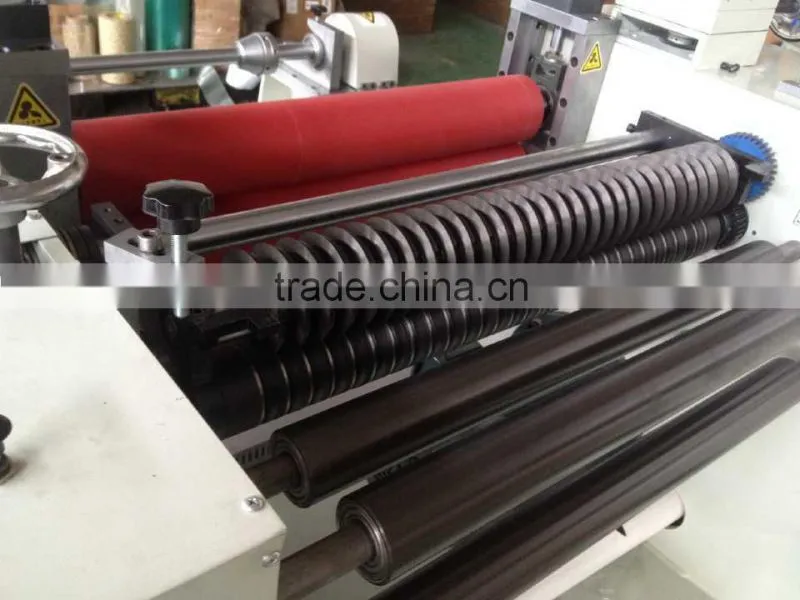

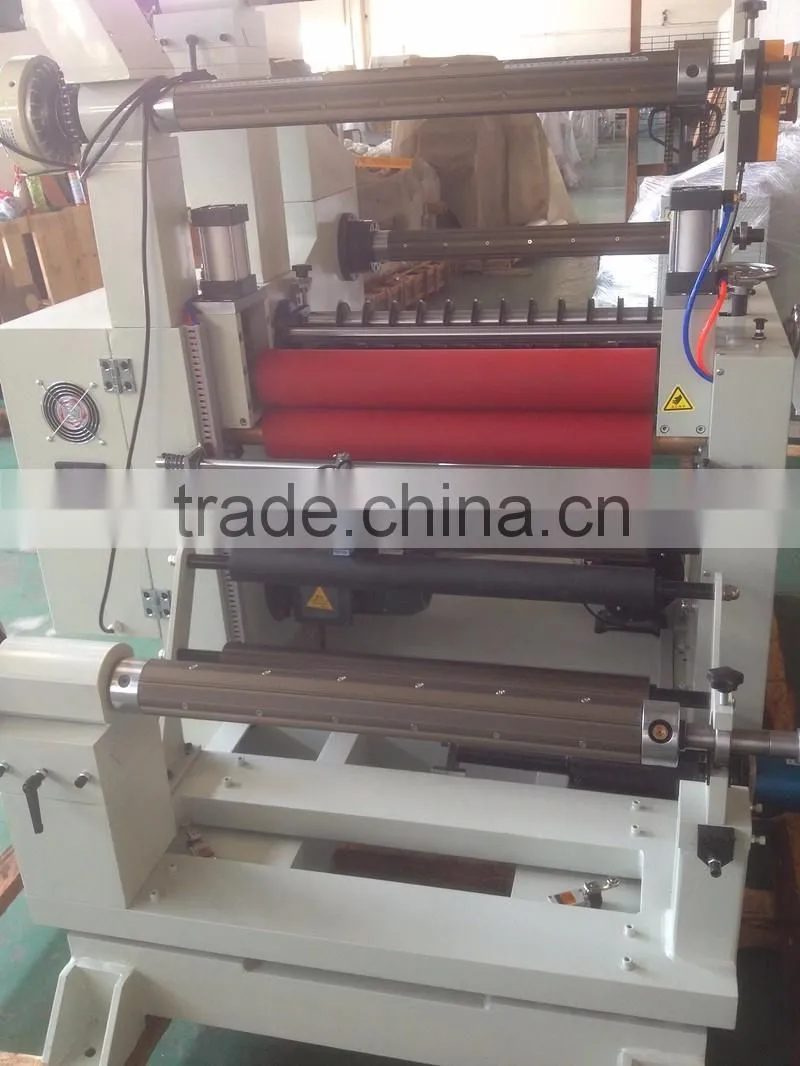

with 30 pcs round slitting knife :

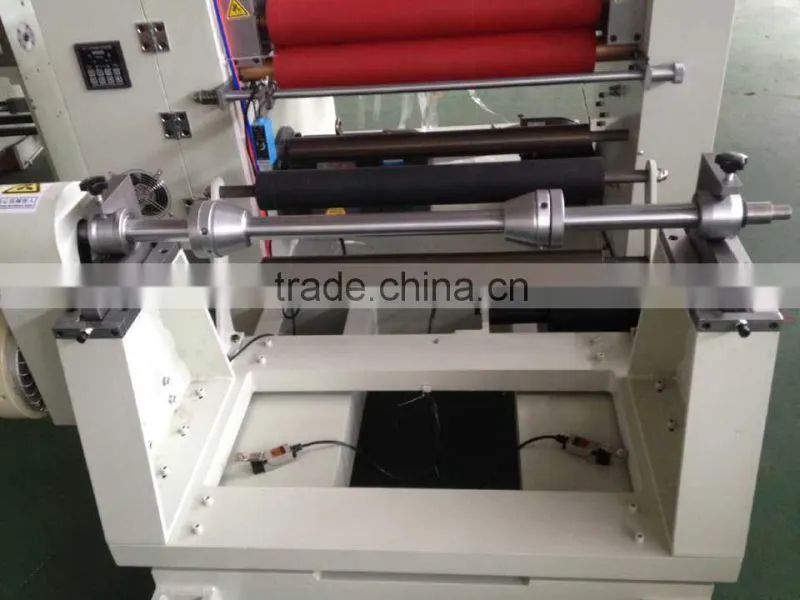

Special 38mm steel mechanical type unwinding shaft :
