Cloth /Fabric Laminating and Slitting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2000
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DP-1600 Bopp Adhesive Tape Jumbo Roll Slitting Rewinder Machine PackingNegotiableMOQ: 1 -
Electric Fabric and Non Woven Fabric Roll Slitting MachineNegotiableMOQ: 1
-
DP-1300 Automatic Nonwoven Fabric /Thermal Paper Roll Slitting MachineNegotiableMOQ: 1
-
Automatic Working Width 1300mm Fabric Cutting Paper Slitting and Rewinding MachineNegotiableMOQ: 1
-
Aluminium Foil, Copper Foil , PET Film Slitting MachineNegotiableMOQ: 1

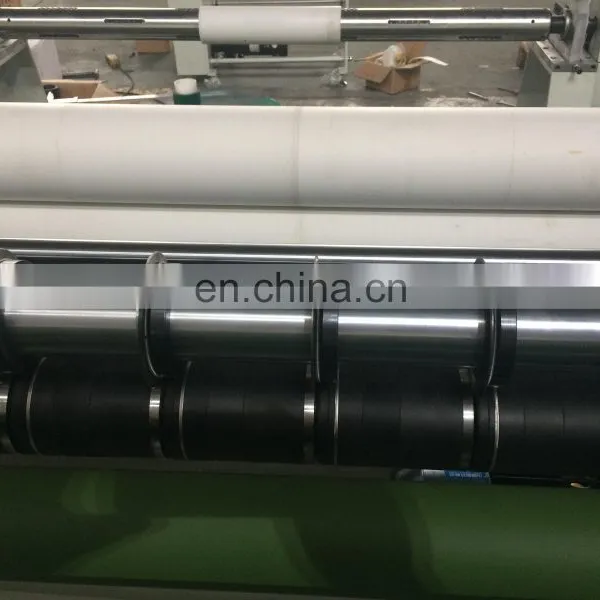

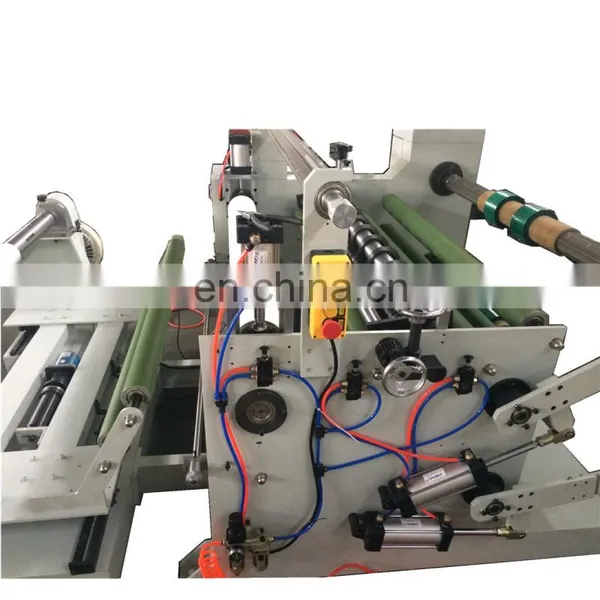

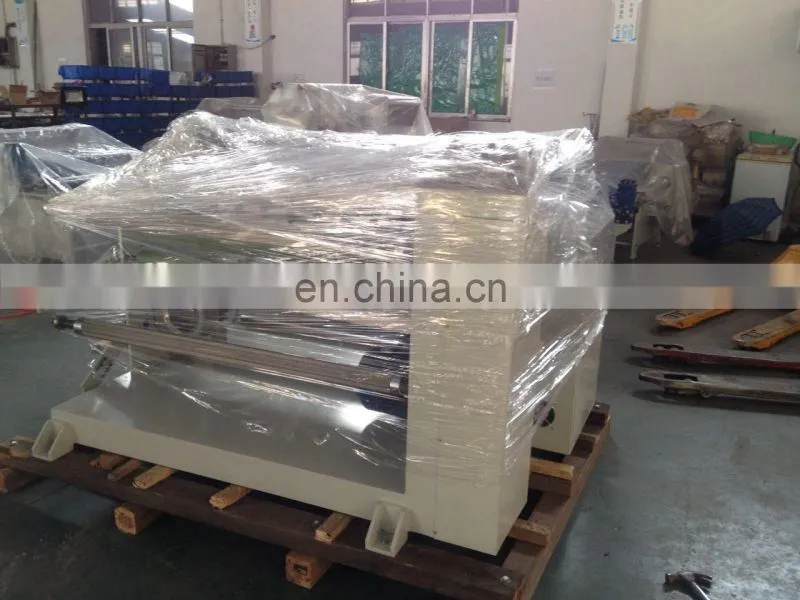

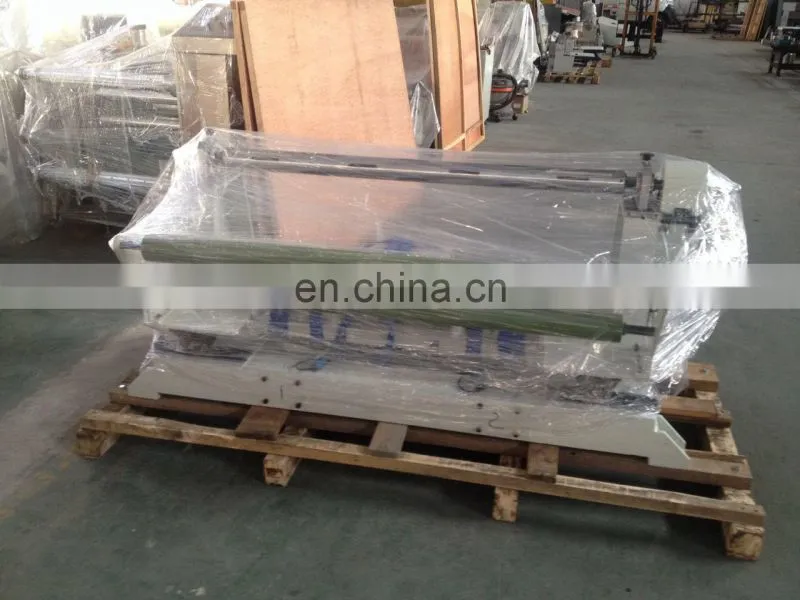

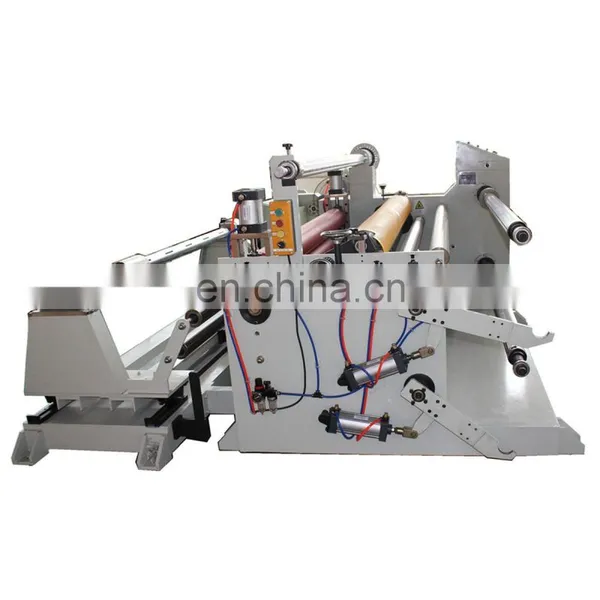

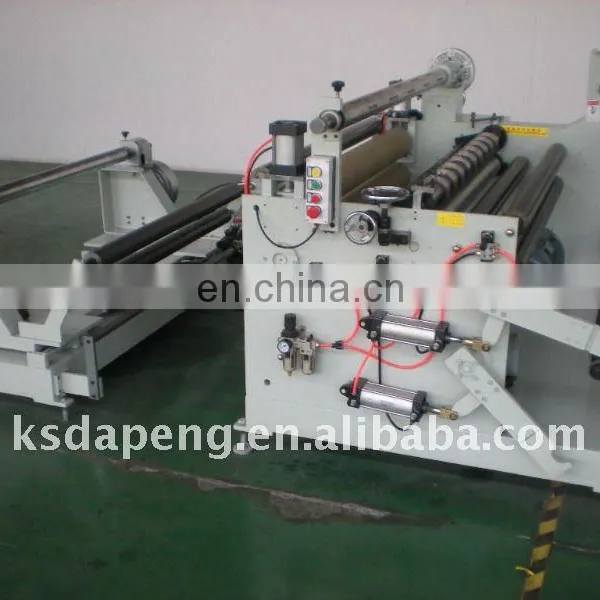

Colth/Fabric laminating and slitting machine
| Funcional characteristics: |
| This machine is sticking and slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials. |
| Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling, |
| with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized. |
| It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. |
| Purpose: |
| It is applicable for the slitting tooling of industrial adhesive tape, cellophane tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. |
| This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc. |
| Model | 1300 multifunction sticking slitting machine | 1600 multifunction sticking slitting machine |
| Max Feeding Width ( mm ) | 1300 | 1600 |
| Main Engineer Power ( KW ) | 6 | 6 |
| Speed (T/M ) | 80 | 80 |
| Size ( mm ) | 2400*2000*1300 | 2400*2300*1300 |
| Weight (kg) | 1200 | 1500 |
| Feeding diameter ( mm ) | 600 | 800 |
| Rewinding diameter ( mm ) | 450 | 450 |
| precision ( mm ) | ±0.10 | ±0.10 |
| Power | 380V 50HZ | 380V 50HZ |
