label slitter rewinder machine
DP-650 SLITTING MACHINE
Application
Apply to the longitudinal cutting and all kinds of industrial tape, electronic adhesive tape, PP, PET, PVC, composite film paper, protective film , all kinds paper and other composite materials, electronic material processing is, printing, packaging, food, pharmaceutical and other industries essential equipment.
Functional Characteristics:
This machine enjoys photoelectric track and rectification system,
and the magnetic powder clutch is adopted to control the feeding and receiving tension.
Main machine is of frequency conversion speed regulation,
and the movement of the rubber covered roller is controlled by the cylinder.
Lamination and slitting can be done at one time, and also can be done solely.
Enjoying characteristics such as fast slitting speed , ease of opertion and maintenance.
| Model | 650 multifunction slitting machine/ label slitter rewinder machine |
| Max Feeding Width ( mm ) | 650 |
| Main Engine Power ( KW ) | 2.2 |
| Speed (M/M ) | 80 |
| Size ( mm ) | 2400*1700*1300 |
| Weight ( KG ) | 1000 |
| Rewinding Diameter (mm ) | 600 |
| Winding Diameter ( mm ) | 450 |
| Precision ( mm ) | ±0.10 |
| Power | 220V 50Hz |
Remark:We offer 12 month after sale service , wear and tear items excluded
Delivery time : 5 days after received the deposit .
Payment terms: 100% paid off before shipment
standard machine can be delivery within 7 working days
have 3 standard machine in stock now

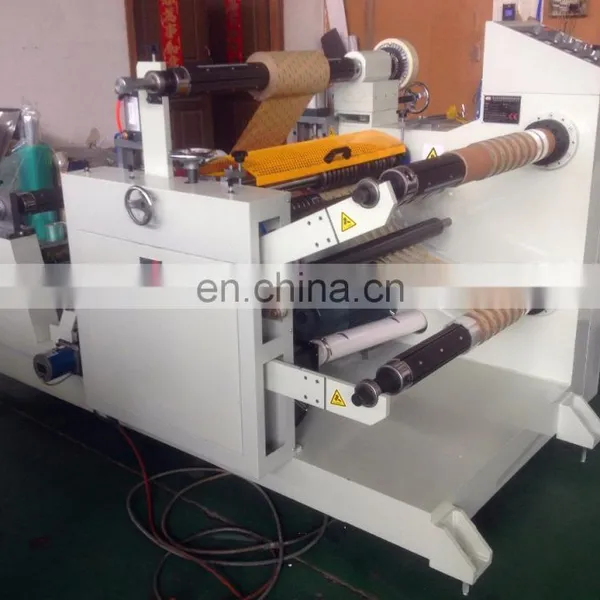

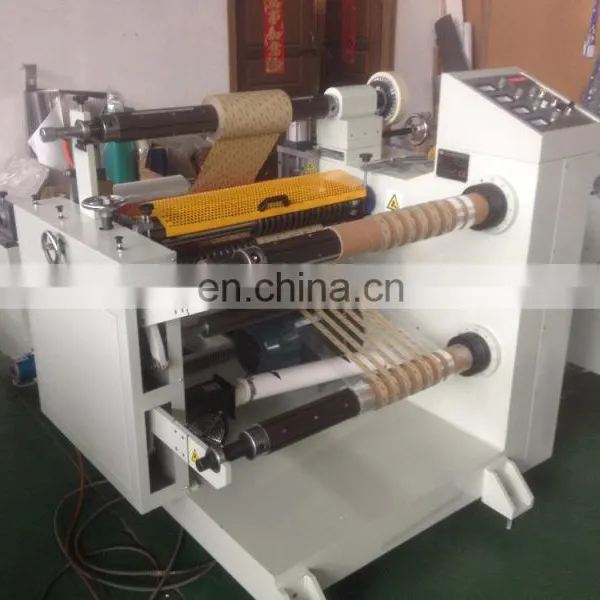

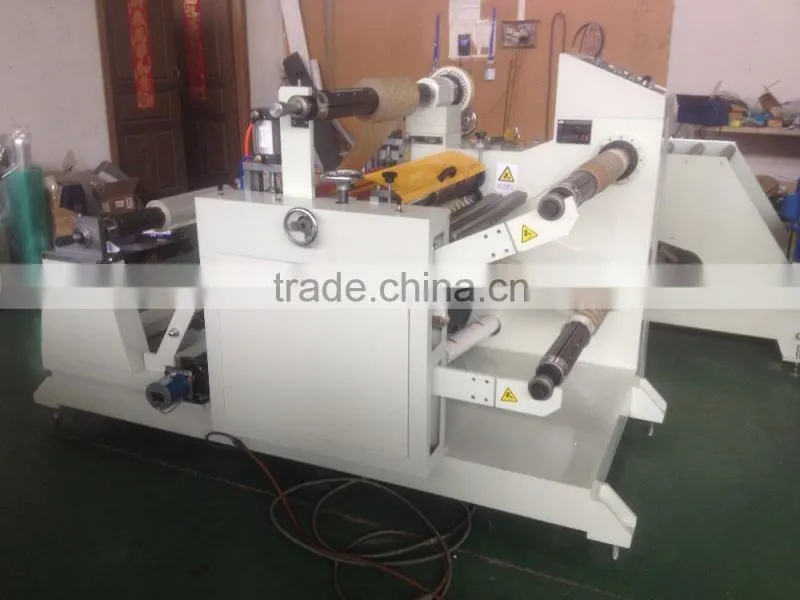

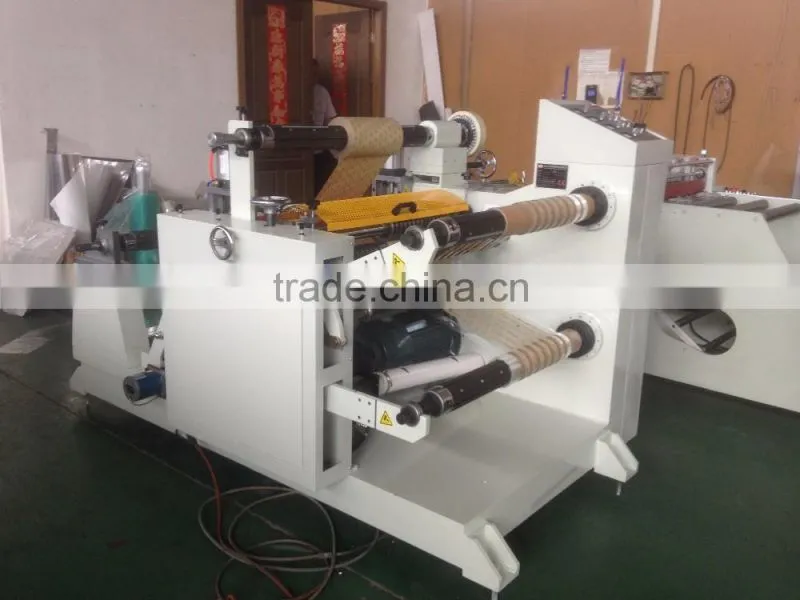

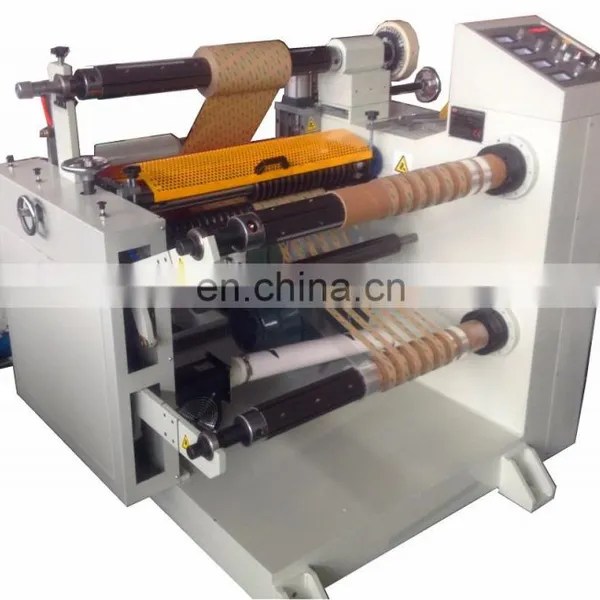

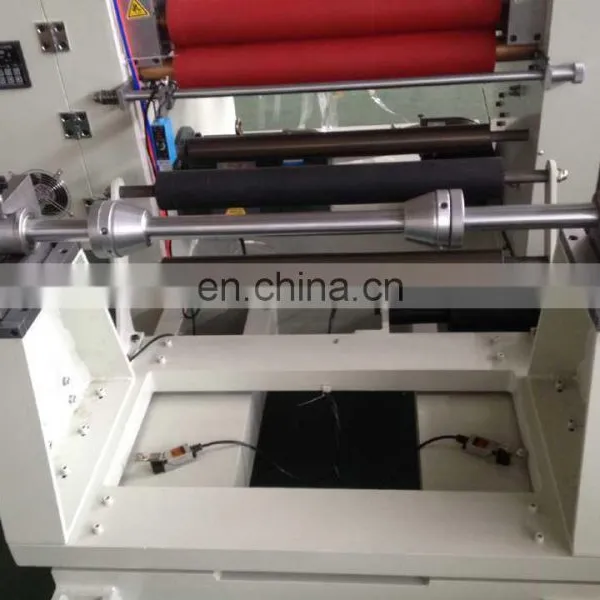

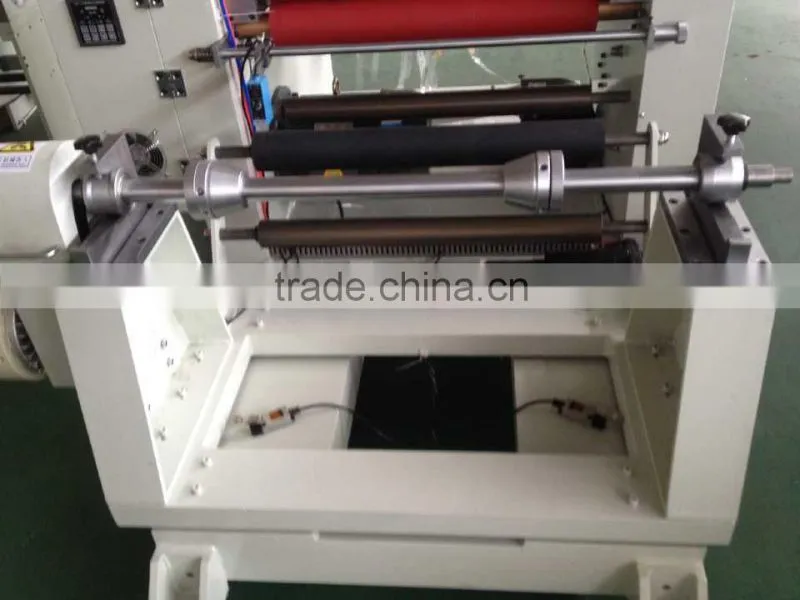

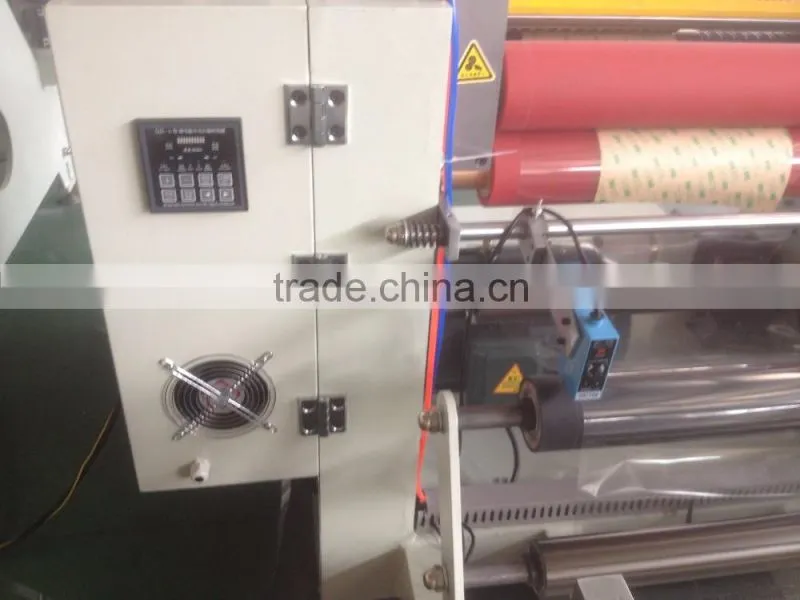

Machine Picture and configuration list as below
2, Feeding Device
Feeding Air Expansion Shaft (3”Pad Shaft) 2 Sets
magnetic powder brake 25N 1 Set
Film release Magnetic Powder Brake 25N 1 Set
Feeding Tension Control System 2 Sets
Correction System 1 set
3, Renewal Material Laminating Part :
Upper Laminating COTS Dia.80(PU) 1 Set
Under Laminating COTS Dia.80(PU) 1 Set
Aluminum guide roller(hard Oxygen surface treatment) 1 Set
Pressure roller pneumatic type top and bottom system adjustable : 1 Set
electronic counter 1 Set
Film Release tensioning adjustable system
4. Reeling end
Receiving Flatulence axis(3″Pad shaft) 2 Sets
magnetic powder clutch 25N 2 Sets
he receiving tension control system 2 Sets
Main electrical machine (double motor) 1 Set
Main Power inverter 1 Set
Winding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set
5. Operator control box 1 Set
6.Electric control panel 1 Set
