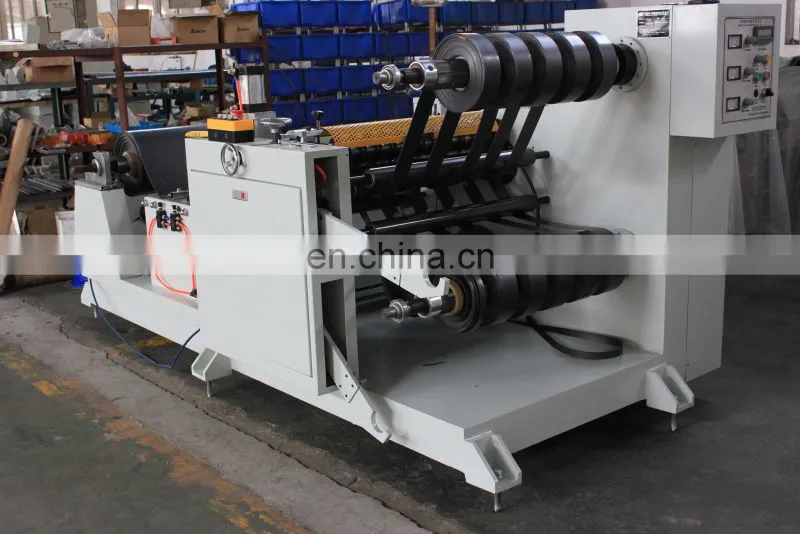

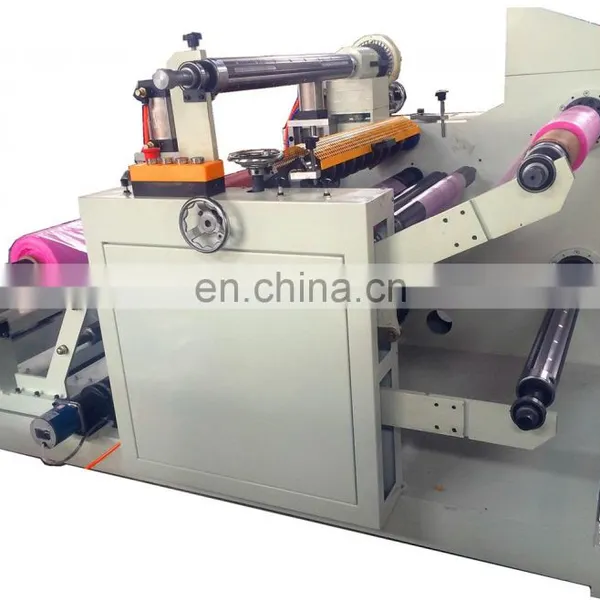

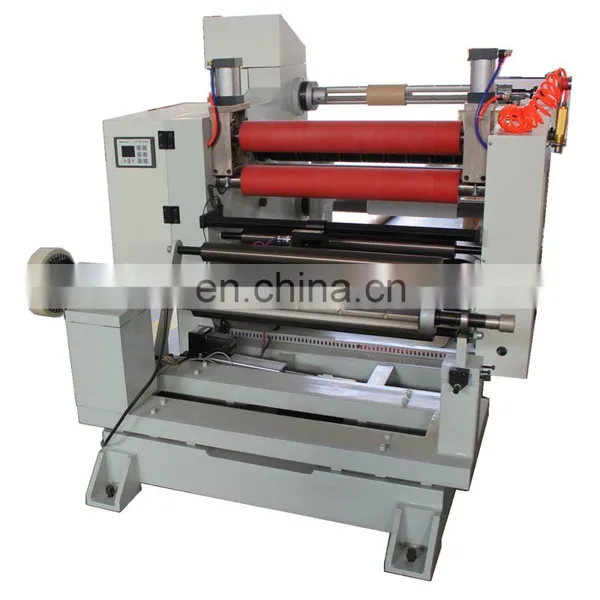

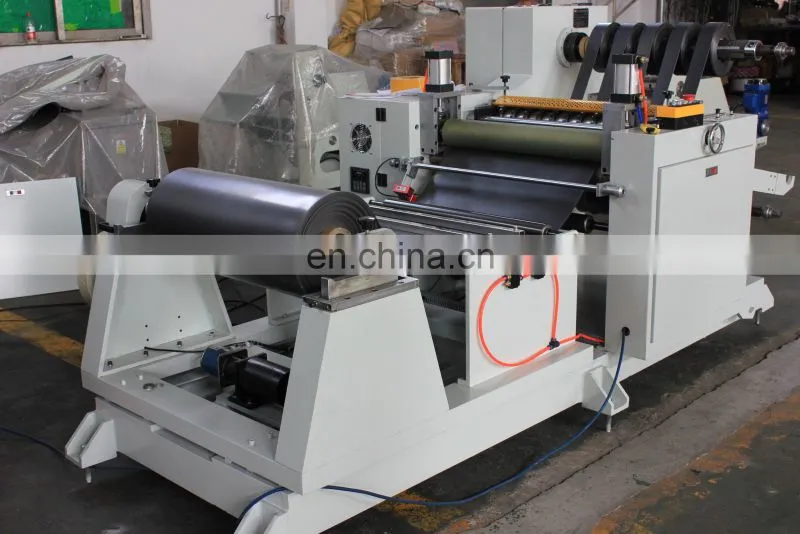

DP-650 PVC Film and Adhesive Tape Slitter Laminator
Features:
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-10mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
Charatertistics and Functions:
1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension. 3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
rectification controller gas sensitive device to rectify deviation the direction .
slitting knife ,could be adjust to slit diferent width .
1. Warranty : 3 years (not includes consumable parts )
2. 24 Hours online service ,any technical problem could be solved timely.
3.Engineers available to service machinery overseas ,for Training and Maintenance .
4.Delivery time: 15-30 working days according to order quantity and model.
5.Payment term: 100%TT ,Westion Union ,Cash are all available .
6.All operation manual, operation interface offered in English.
7.If our machines can't well meet your requirment ,we support customized machine .
Package and shipping PVC film slitter cutting machine
The package for machine is plywood case .it's strong enough to prevent from damage when transporation .
Why choose us ?
1.We are factory for more than 10 years .We have steady and loyal supplier .So our components are high quality with low cost.
2.Our sales territory
Our machines have been exported to more than 40 countries .We have agent in South Korea .
Get quotation from us :
| Items | Information needed . |
| Material name | .......... |
| Sheet or roll | sheet /roll |
| Number of layers | 1/2/3 |
| Size |
diameter *width*thickness/ length*width *thickness |
| Function you would like to realize. | cutting /kiss cutting /die cutting /slitting /laminating |
| Remark : | ............. |
| DP-650 Laminating and Slitting Machine | DP-1300 Laminating and Slitting Machine | DP-1600 Laminating and Slitting Machine | |
| Max Feeding Width ( mm ) | 650 | 1300 | 1600 |
| Main Engineer Power ( KW ) | 2.2KW | 3KW | 6KW |
| Speed (m/min ) | 60 | 60 | 60 |
| Size ( mm ) | 1400*1200*1300 | 1650*1450*1300 | 1650*1450*1300 |
| Weight (kg) | 800 | 1500 | 1800 |
| Feeding diameter ( mm ) | 600 | 600 | 800 |
| Rewinding diameter ( mm ) | 450 | 450 | 450 |
| Precision ( mm ) | ± 0.10 | ± 0.10 | ± 0.10 |
| Power | 220V 50HZ | 380V 50HZ | 380V 50HZ |
With informations above ,quotation could be sent ASAP .
