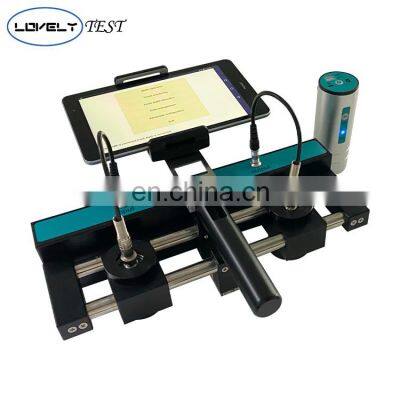

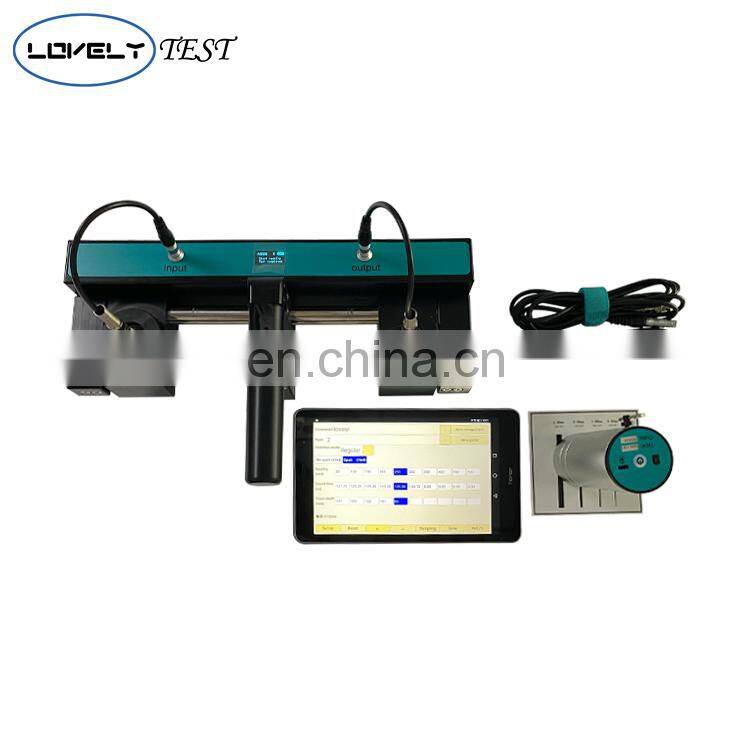

Concrete Crack Camera Ultrasonic Detector Crack Depth Width Testing Equipment
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Concrete Crack Detector Crack Width Camera Ultrasonic Crack Depth Testing EquipmentNegotiableMOQ: 1 -
Concrete Reinforced Steel Bar Detector Steel Tube Locator ScannerNegotiableMOQ: 1
-
Road Base Plate Bearing Testing Plate Load Test K30 ValueNegotiableMOQ: 1
-
Wireless Crack Width Measuring Camera Crack Width Measuring CamerasNegotiableMOQ: 1
-
Road Base Test Equipment K30 Plate Bearing Tester Plate Load TestNegotiableMOQ: 1
Product Usage and Features
F800 Wireless crack meter
USAGE OVERVIEW:
It is used for automatic measurement of crack width and crack depth on structure surface, automatic interpretation and storage of data.
PRODUCT FEATURES:
1.New upgraded wireless cloud transmission function;
2.Original wireless camera probe, snap button operation is convenient; host adopts Android system tablet computer, Chinese/English full touch operation;
3.Intelligent interpretation of oblique cracks, without vertical; images can be zoomed in and out, and the interface display scale can be manually assisted to interpret;
4.The sounding bracket does not need to be crossed, saving time and effort; tablet computer and TF card storage, large capacity without limit, copying data is convenient and fast;
5.The data analysis and report form is included in the main unit, which can be owned without transferring to the host computer.
Parameters
Master control unit | 8-inch tablet Android operating system | ||
Wireless Width Gauge Unit | Test range and accuracy | 0~10mm: 0.01mm | |
Magnification | Digital 60 times | ||
Operational mode | Touch screen + shortcut keys | ||
Connection mode | Wifi connection | ||
Data transmission mode | Wireless cloud transmission (optional) | ||
Measuring method | Automatic/ manual | ||
Power supply mode | Built-in lithium battery | ||
Working hours | More than 10 hours | ||
Working environment | -10℃~ 40℃ ＜90%RH | ||
Wireless Depth Gauge Unit | Test scope | 5~500mm | |
Measurement accuracy | Less than 5mm or 2%~10% of the actual depth | ||
Operational mode | Touch screen + probe automatic trigger | ||
Connection mode | Bluetooth connection | ||
Data transmission mode | Wireless cloud transport(options) | ||
Measuring method | Fast/standard measurement | ||
Power supply mode | Built-in lithium battery | ||
Working hours | More than 10 hours | ||
Packing dimensions | 420*140*335mm | ||

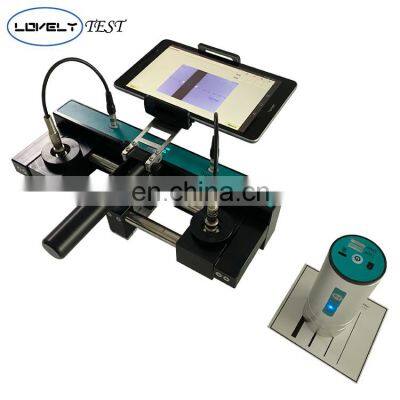

Detailed Images
* 60 times magnification cammer.
* Intelligent detect oblique cracks' width, without vertical;
* Crack images can be zoomed in and out at the PC tablet, and the interface display scale is manually adjustable;
Application
