Road base Plate Bearing Testing Plate Load Test K30 Value
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Wireless Crack Width Measuring Camera Crack Width Measuring Cameras
-
Road Base Test Equipment K30 Plate Bearing Tester Plate Load Test
-
Foundation Integrity Piles Integrity Test pile testing Supplier Manufacture
-
Road markings Reflectometers
-
China Concrete Pile Integrity Test Tester Pile PIT Test Supplier Manufacture
-
Integrated Concrete Rebar Scanner Detector Locator Concrete Reinforcement Detector cheap price
Product Description
Product Usage and Features
K30 Plate load tester
APPLICATION:
The Plate Load Tester is a field equipment for determining the ultimate bearing capacity of soil and the likely settlement under a given load. The Plate Load Tester applies a load on a steel plate placed at the foundation level and recording the settlements corresponding to each load increment. It’s kind of common road testing equipment.
The test of the foundation coefficient of fine-grained soil and soil-filled compacted subgrade and base layer can also be used to calculate the deformation modulus of uniform foundation soil.
BASIC STRUCTURE:

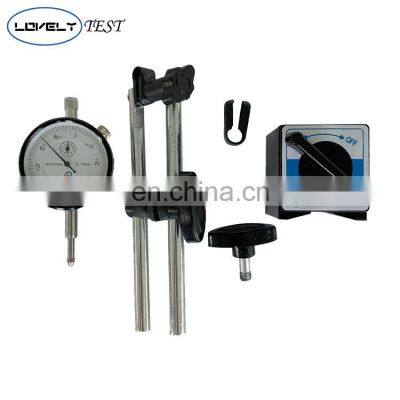

1. Loading system: It is composed of loading plate, jack, high-pressure tubing of manual pump, etc., and the positioning line for jack is engraved on the loading plate.2. Bridge measurement: it is composed of a support, a beam, a dial indicator and a bracket. The beam can be raised and lowered along the two support columns to adjust the height.
Parameters
Product | K30 Plate load tester |
Straight through load plate | 300mm |
Jack stroke | 120mm |
Span of side bridge | 3000mm |
Pressure test range | 25MPa (level 0.4) |
Displacement test range | 0-10mm |
Applicable temperature | 5°-45°C |
Detailed Images
Application
Contact US
Cangzhou Lovely Technology Co., Ltd.
Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years.With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.
Our Customers and patent certificate

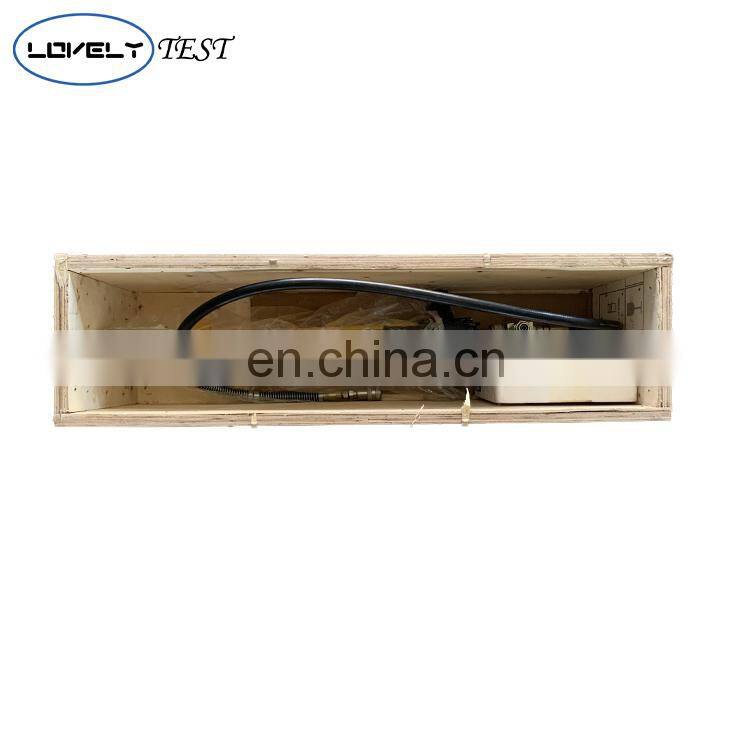

Packing & Delivery
Why Choose us ?
Q1:Are you a factory or trading company?
A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement.
Q2:Where is the nearestloading port?
A:Qingdao port or Tianjin port.
Q3:What’s the MOQ of the product? A: One set.
Q4:Did your factory pass the ISO 9001?A: YES.
Q5:How long is the production cycle after ordering?
A:Based on the order. Generally it is about 3-10 days.
Q6:What is the payment method?
A:T/T payment, West Union, L/C payment ect.
Q7: Do you support customizing service? A: Yes, we could customize the
out package, machine's color, Logo and Voltage as request.
out package, machine's color, Logo and Voltage as request.
