Product Description

Product Usage and Features

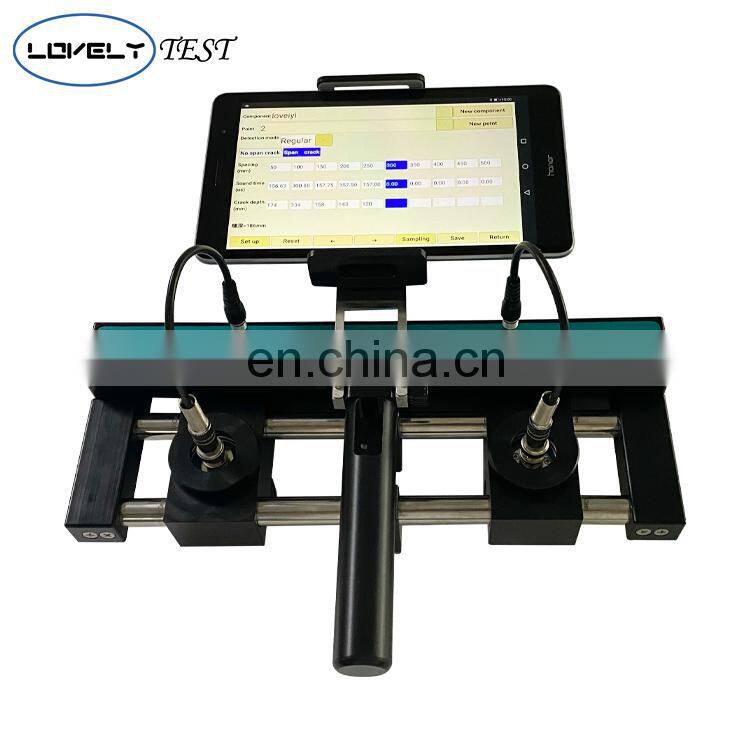

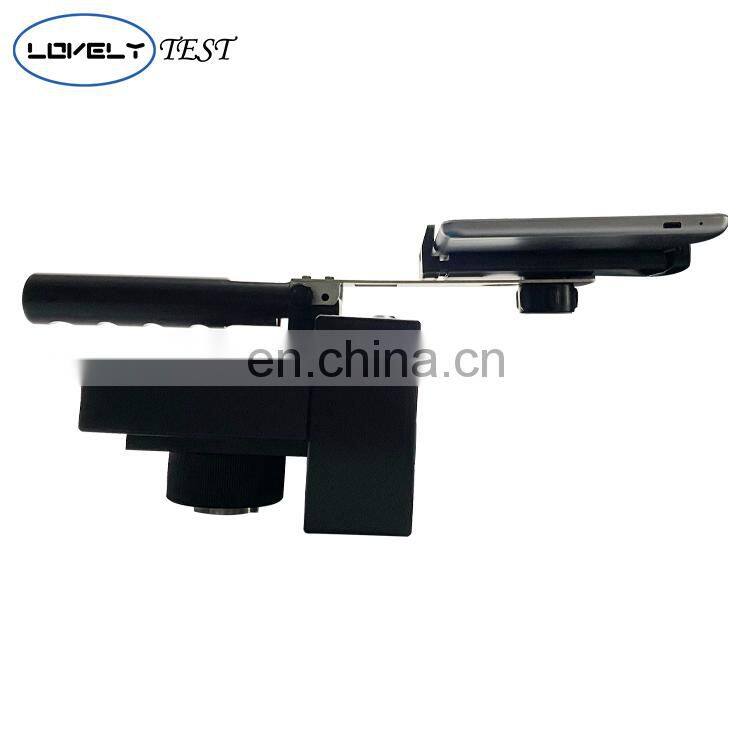

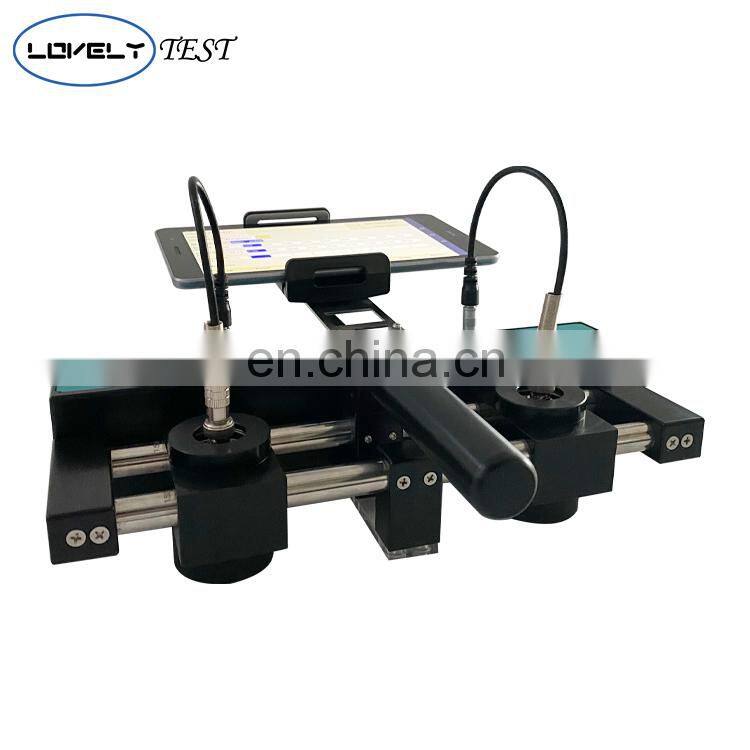

F800 Wireless crack meter

USAGE OVERVIEW:
It is used for automatic measurement of crack width and crack depth on structure surface, automatic interpretation and storage of data.

PRODUCT FEATURES:
1.New upgraded wireless cloud transmission function;

2.Original wireless camera probe, snap button operation is convenient; host adopts Android system tablet computer, Chinese full touch operation;

3.Intelligent interpretation of oblique cracks, without vertical; images can be zoomed in and out, and the interface display scale can be manually assisted to interpret;

4.The sounding bracket does not need to be crossed, saving time and effort; tablet computer and TF card storage, large capacity without limit, copying data is convenient and fast;

5.The data analysis and report form is included in the main unit, which can be owned without transferring to the host computer.

Parameters

Master control unit	8-inch tablet Android operating system
Wireless Width Gauge Unit	Test range and accuracy	0~10mm: 0.01mm
		Magnification	Digital 60 times
		Operational mode	Touch screen + shortcut keys
		Connection mode	Wifi connection
		Data transmission mode	Wireless cloud transmission (optional)
		Measuring method	Automatic/ manual
		Power supply mode	Built-in lithium battery
		Working hours	More than 10 hours
		Working environment	-10℃~ 40℃ ＜90%RH
Wireless Depth Gauge Unit	Test scope	5~500mm
		Measurement accuracy	Less than 5mm or 2%~10% of the actual depth
		Operational mode	Touch screen + probe automatic trigger
		Connection mode	Bluetooth connection
		Data transmission mode	Wireless cloud transport(options)
		Measuring method	Fast/standard measurement
		Power supply mode	Built-in lithium battery
		Working hours	More than 10 hours
		Packing dimensions	*420140335mm*

Detailed Images

Application

Cangzhou Lovely Technology Co., Ltd.

It is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide. Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.

We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.

Our Customers and patent certificate

Packing & Delivery

Why Choose us ?

1. Get our in-time reply via email or telephone or instant messenge. Our product specialist will guide you find the suitable product according to your requirement; 2. Get best product with excellent quality and competitive price; 3. One year guarantee for whole machine and in time technical support by video or email. Always enjoy our considerable & full-side after-sales service; 4. Feeling very convenient since we can help you source and ship products from different factories via one shipment, which is significant to save your time and cost; 5. Easily make the payment via West Union, Paypal, Credit Card for small value order;
