Impact Testing Machine

Impact testing machine

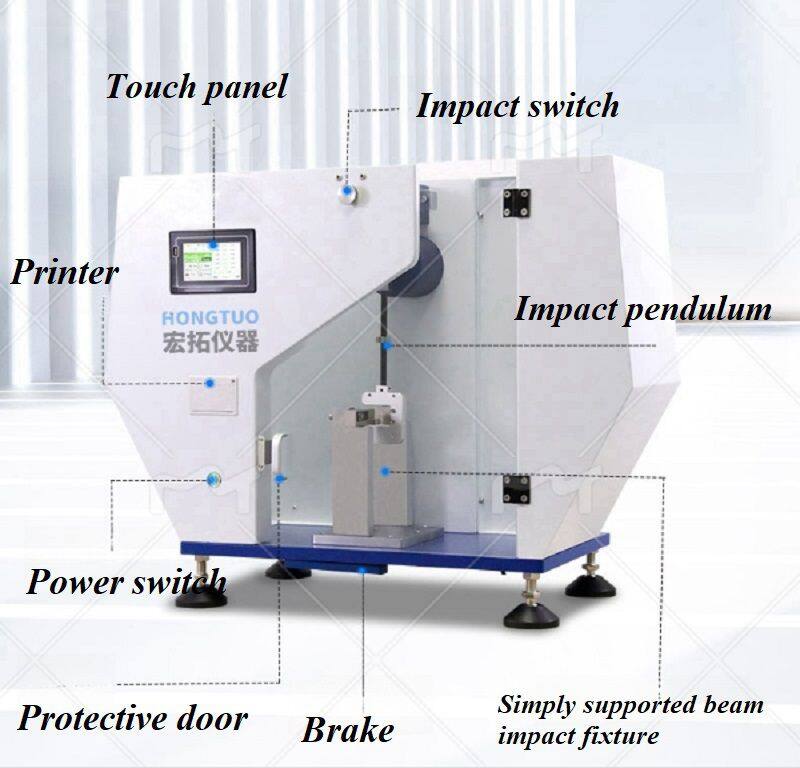

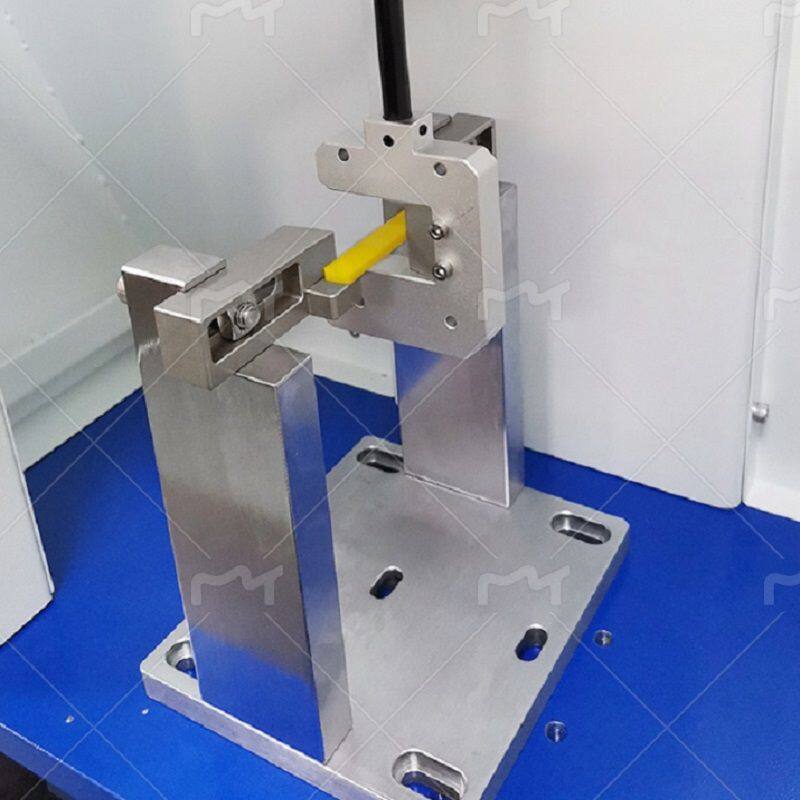

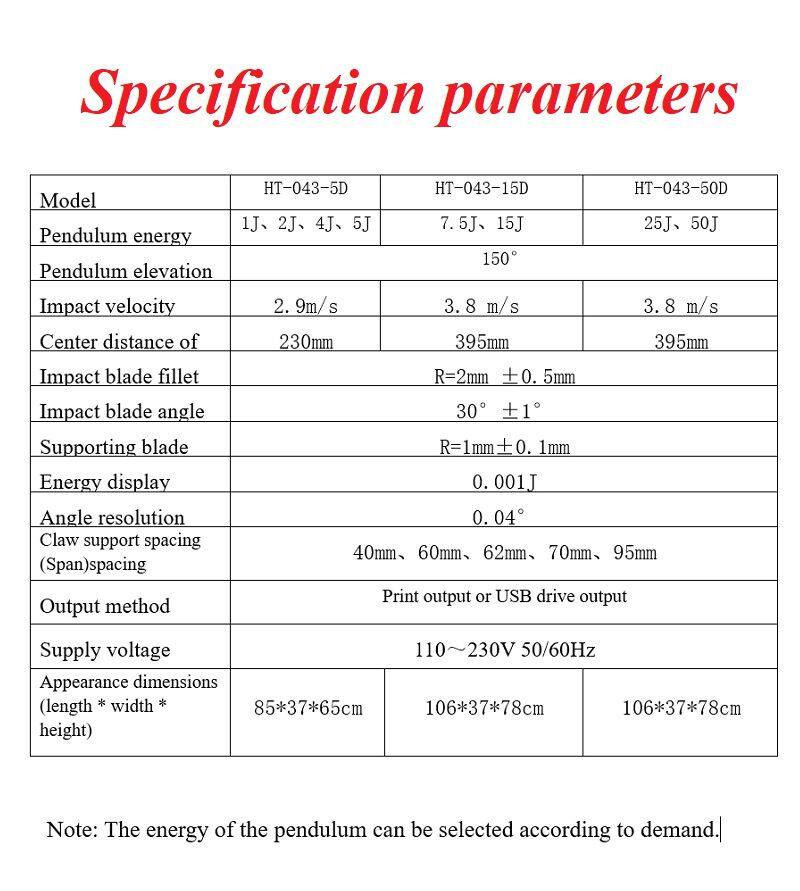

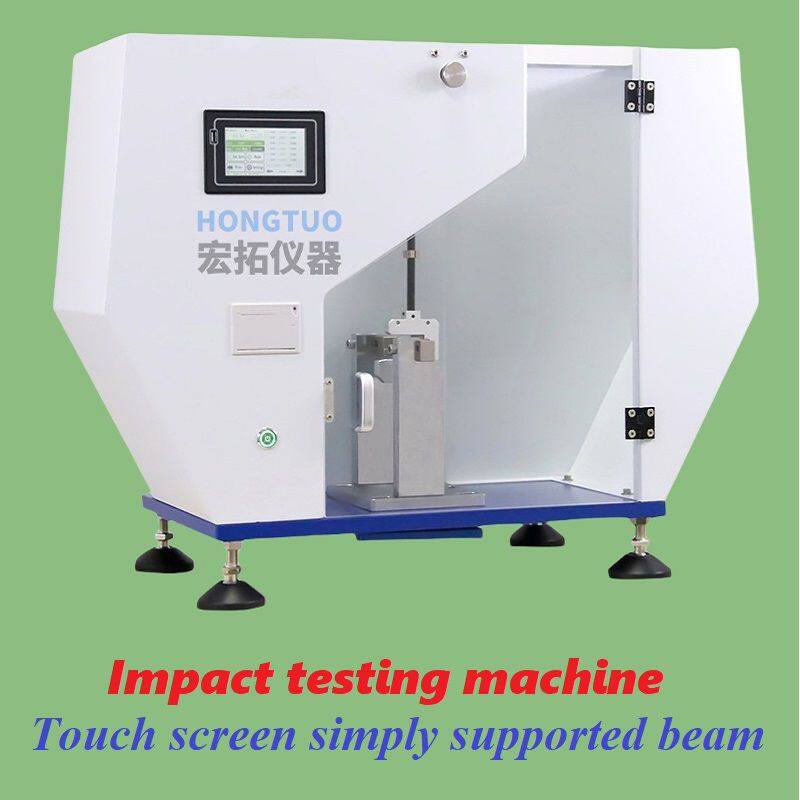

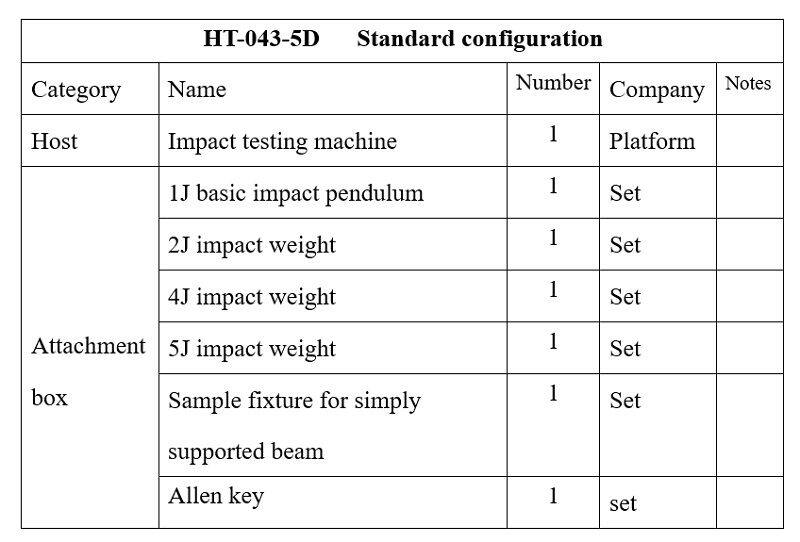

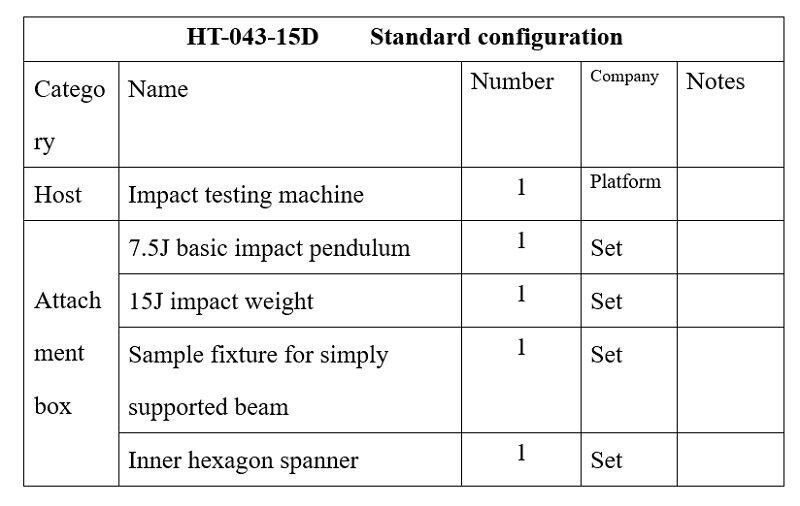

I、 Product model: Touch screen simply supported beam, HT-043-5D、HT-043-15D、HT-043-50D。

II、 Application areas:

It is mainly used for the determination of impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics, cast stones, and electrical insulation materials. It is an ideal testing equipment for the chemical industry, scientific research units, universities, quality inspection and other departments.

III、 Product features:

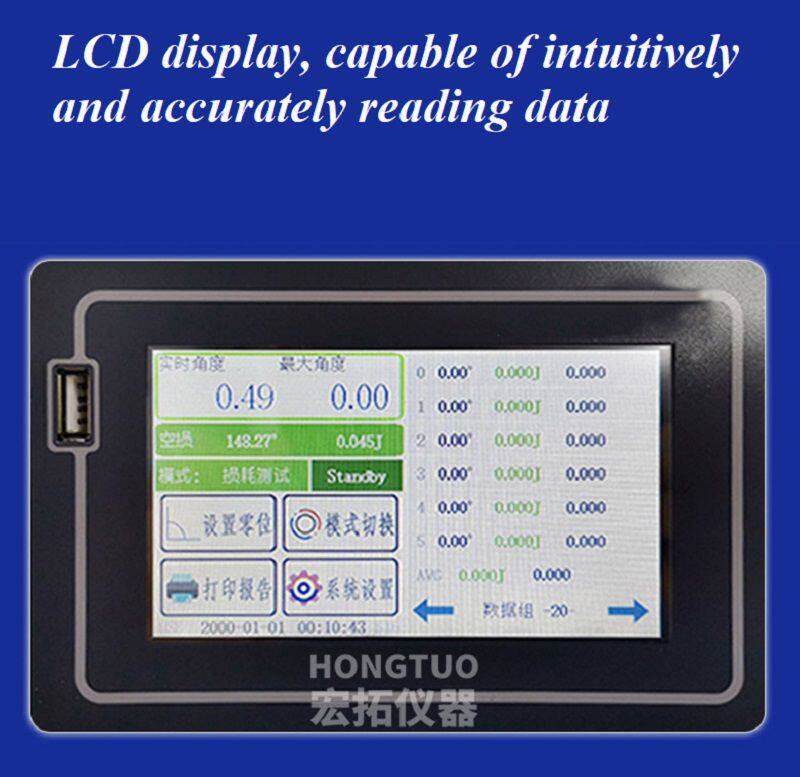

1. High precision intelligent controller, equipped with LCD display, can intuitively and accurately read data;

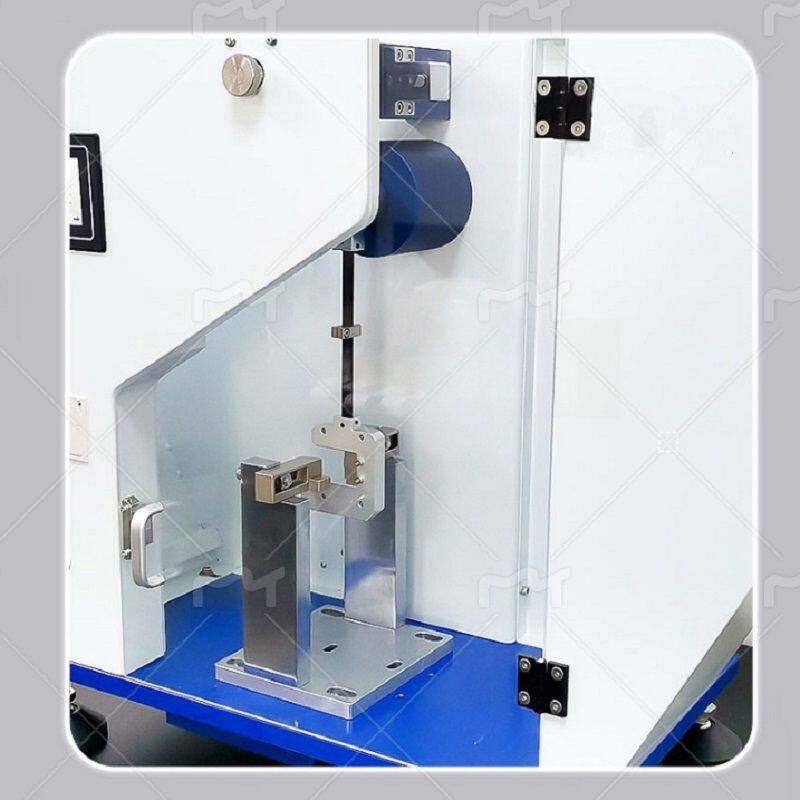

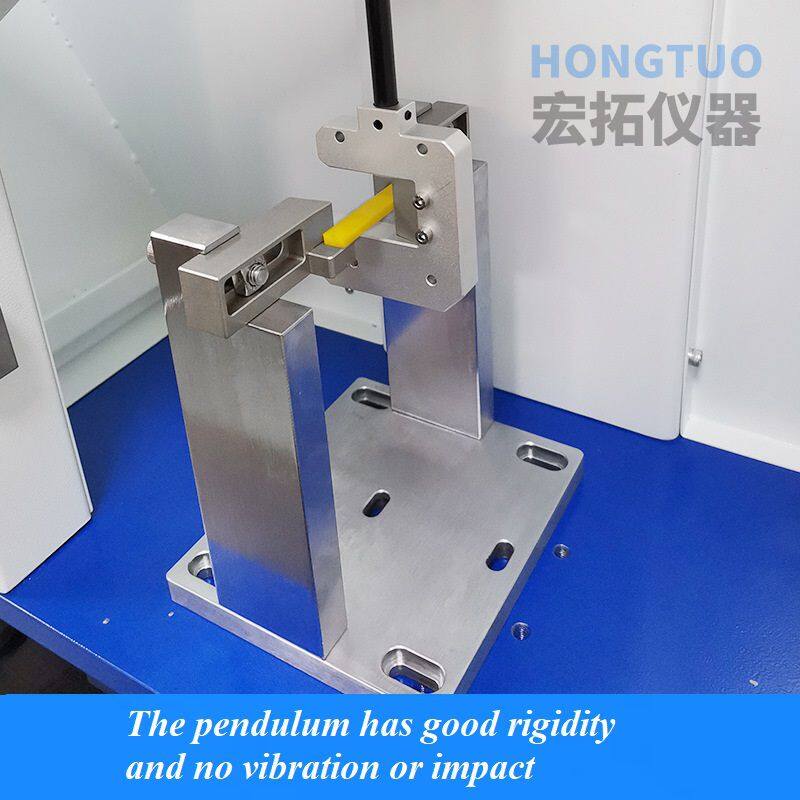

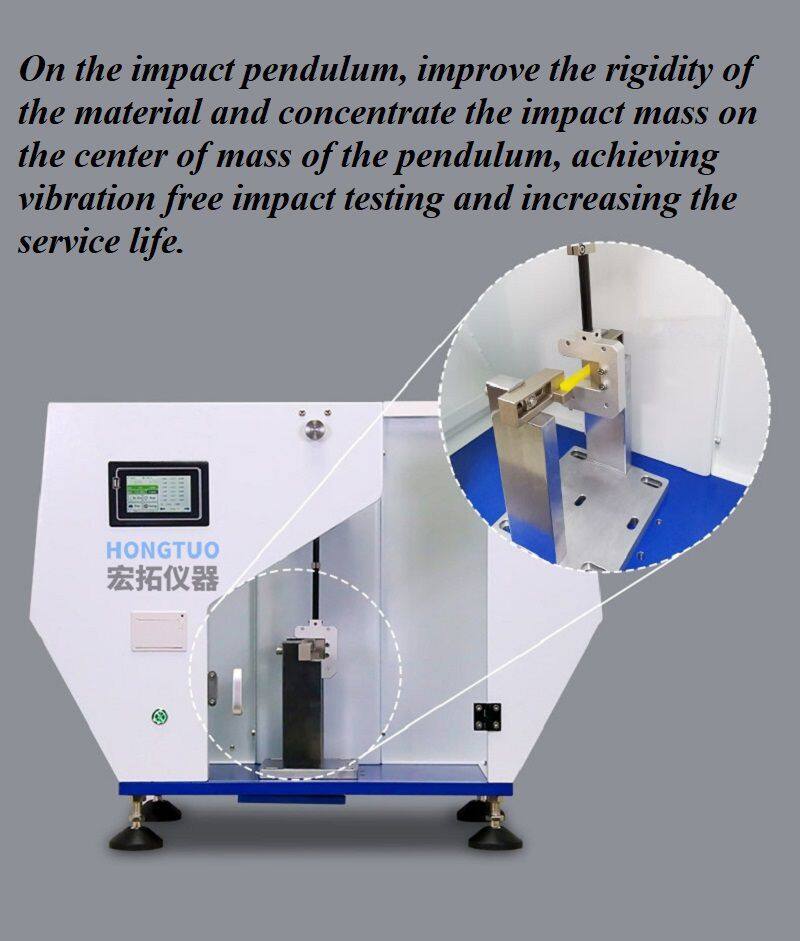

2. On the impact pendulum, carbon fiber pendulum rods are used to improve the rigidity of the material and concentrate the impact mass on the center of mass of the pendulum, achieving vibration free impact testing and increasing the service life;

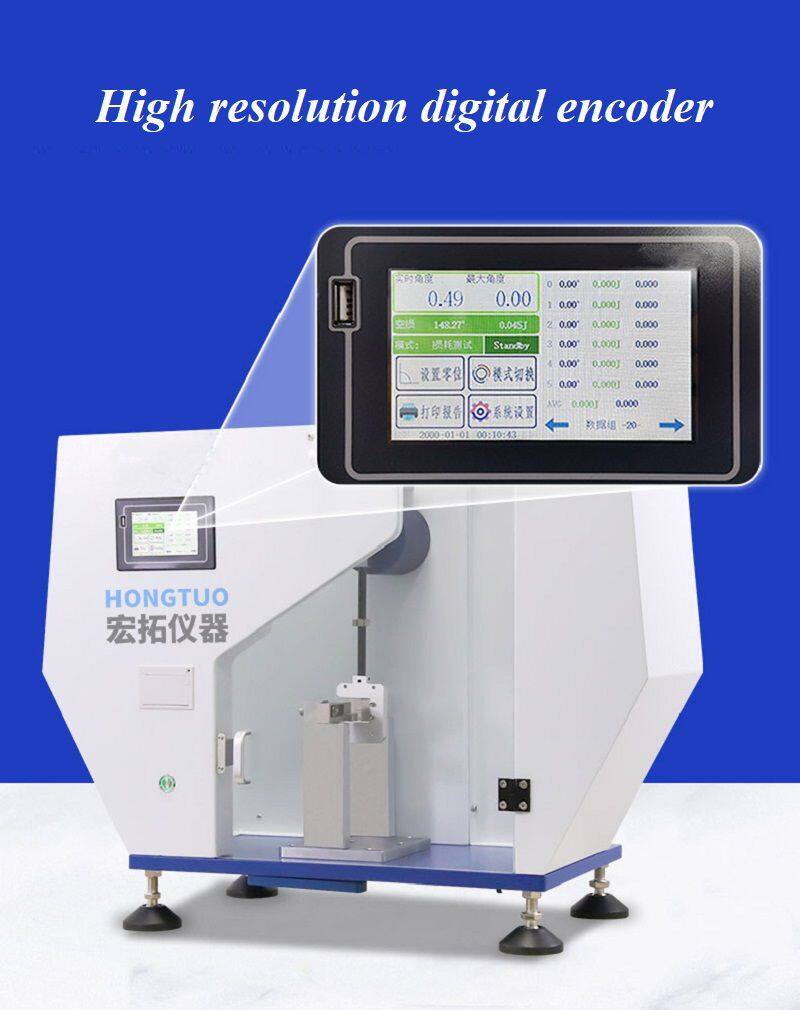

3. Using high-resolution digital encoders for higher and more stable angle testing accuracy;

4. Ball bearings that comply with aerodynamic principles reduce frictional losses caused by machinery;

5. Automatically calculate the final result, save 12 sets of experimental data and calculate the average value;

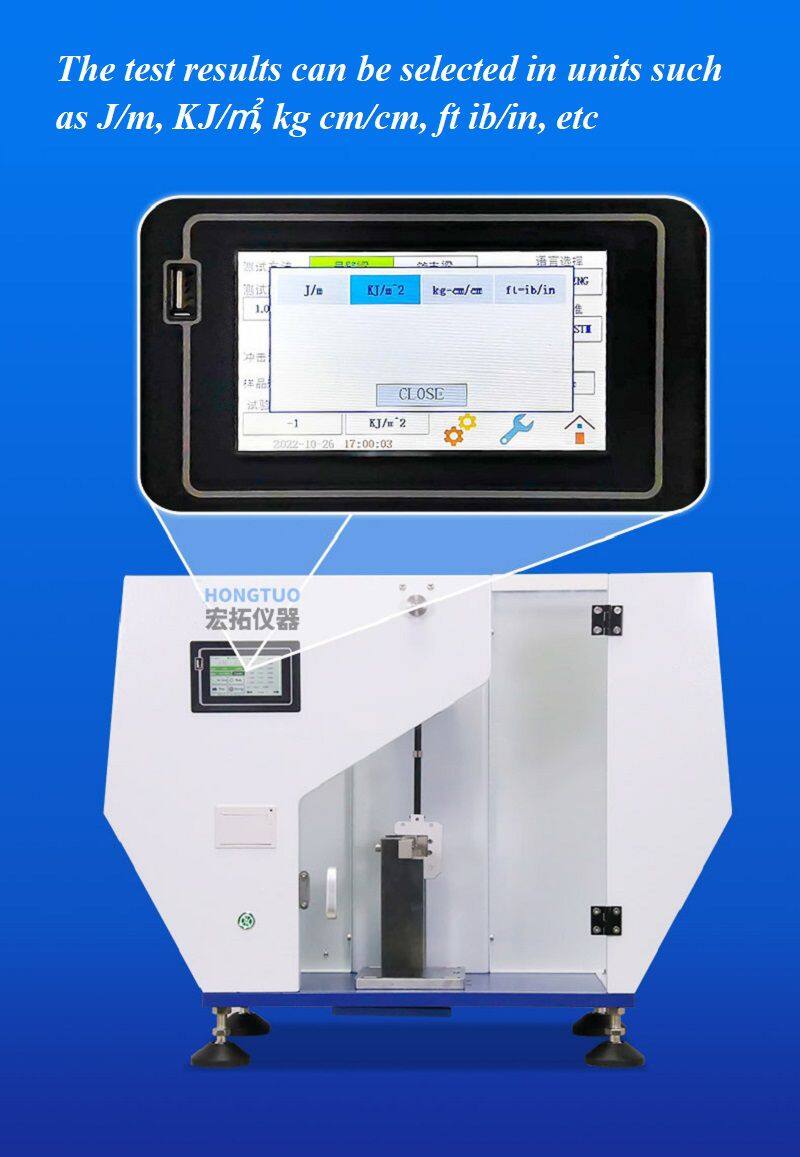

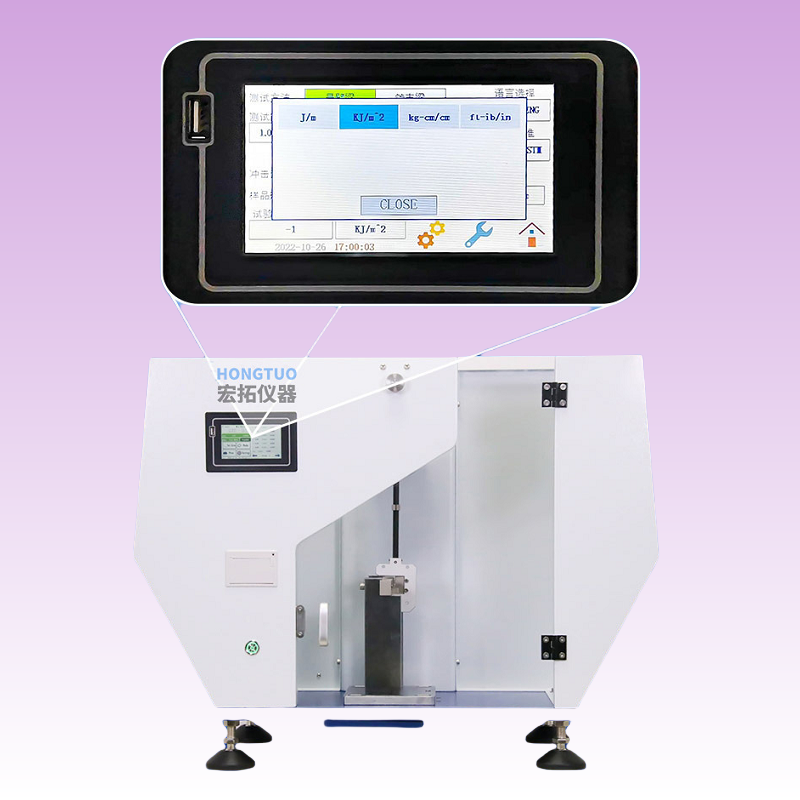

6. English operation interface, test results can be selected in units such as J/m, KJ/㎡, kg cm/cm, ft ib/in, etc;

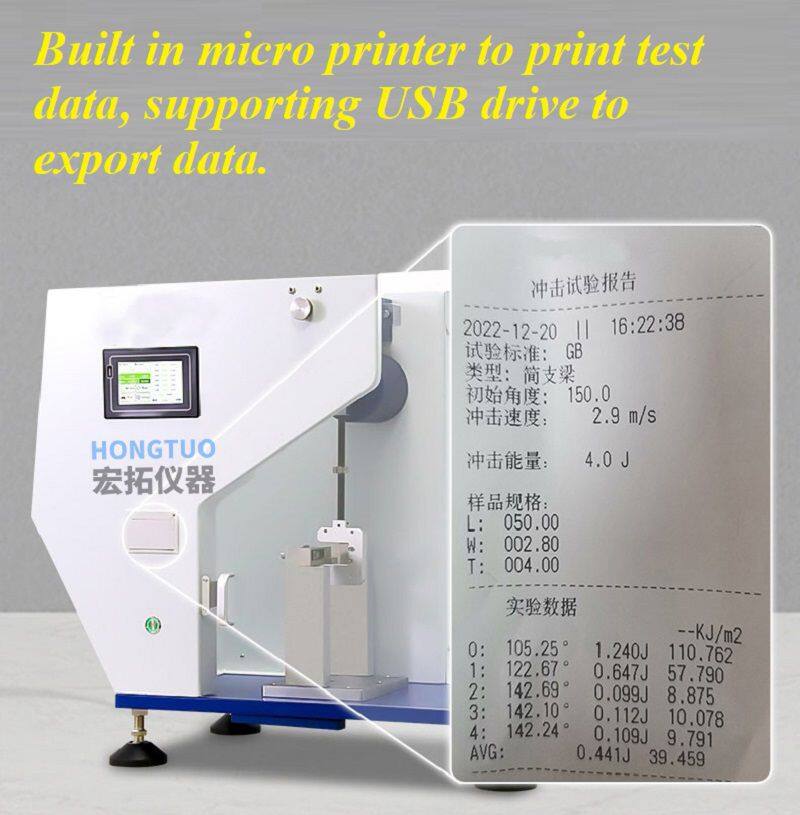

7. Built in micro printer to print test data.

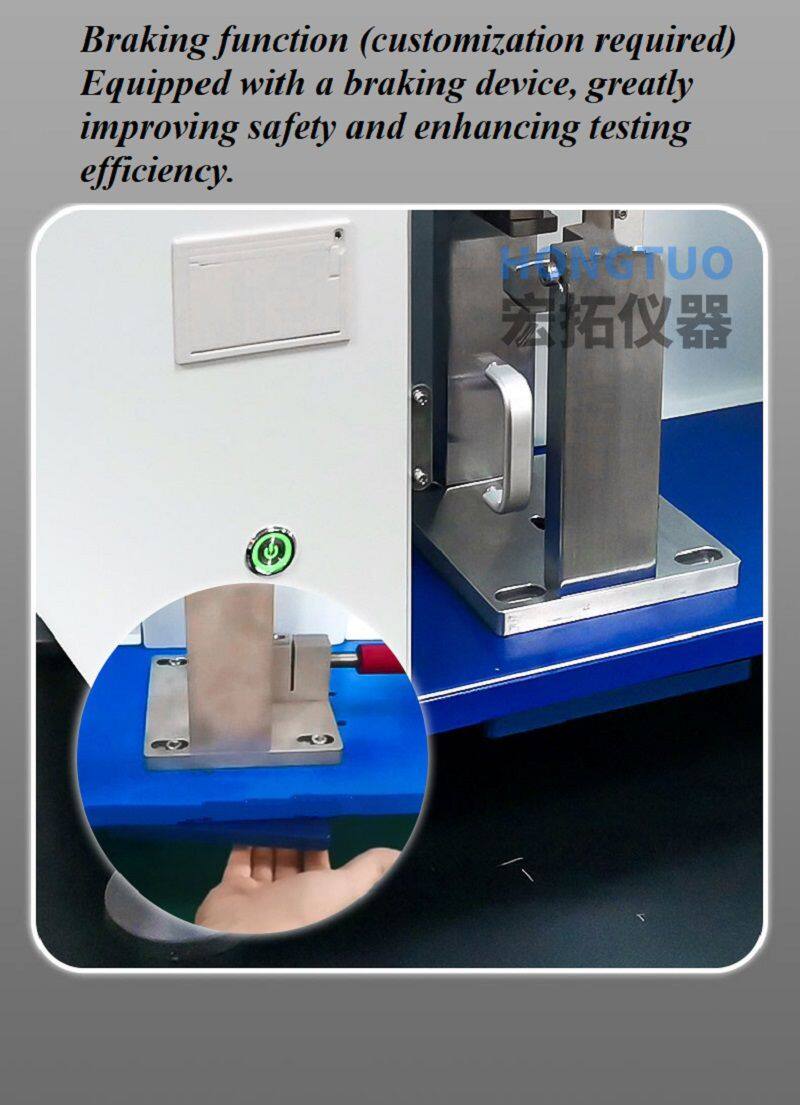

8. Equipped with a braking device, greatly improving safety and testing efficiency.

9. Automatically calculate and save the energy loss caused by friction and wind resistance;

10. Automatically calculate absorbed energy and impact strength;

11. Automatically adjust the test results.
