Product Description
Product Usage and Features

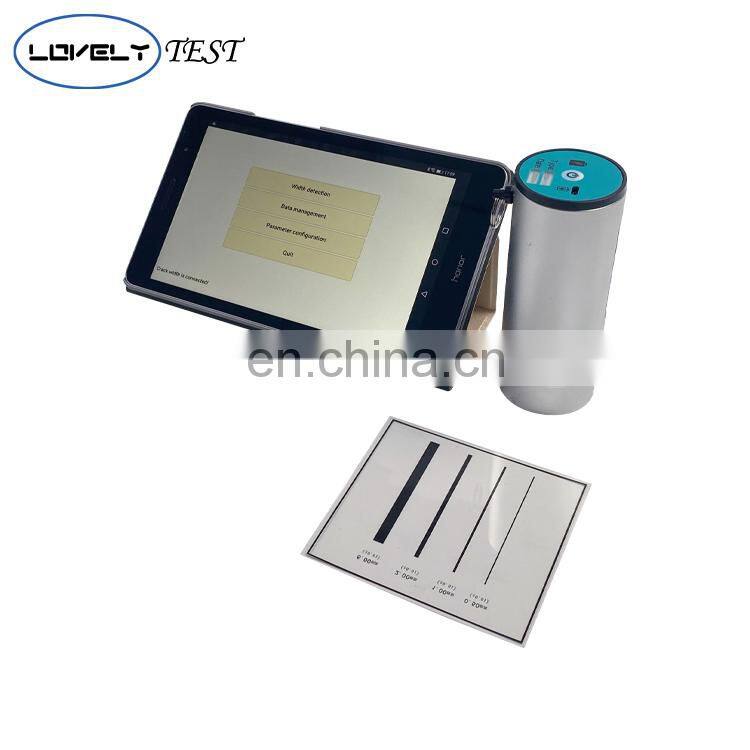

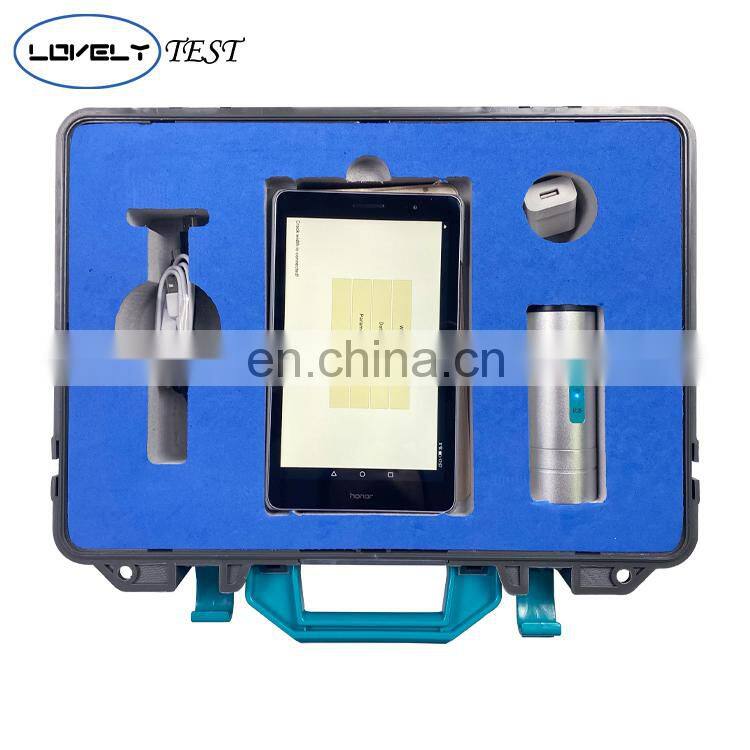

F230 Wireless digital concrete crack meter
USAGE OVERVIEW:
F230 Wireless concrete crack width gauge is used to measure crack width in concrete buildings such as houses, roads and bridges.
PRODUCT FEATURES:
1.Newly upgraded wireless cloud transmission function;

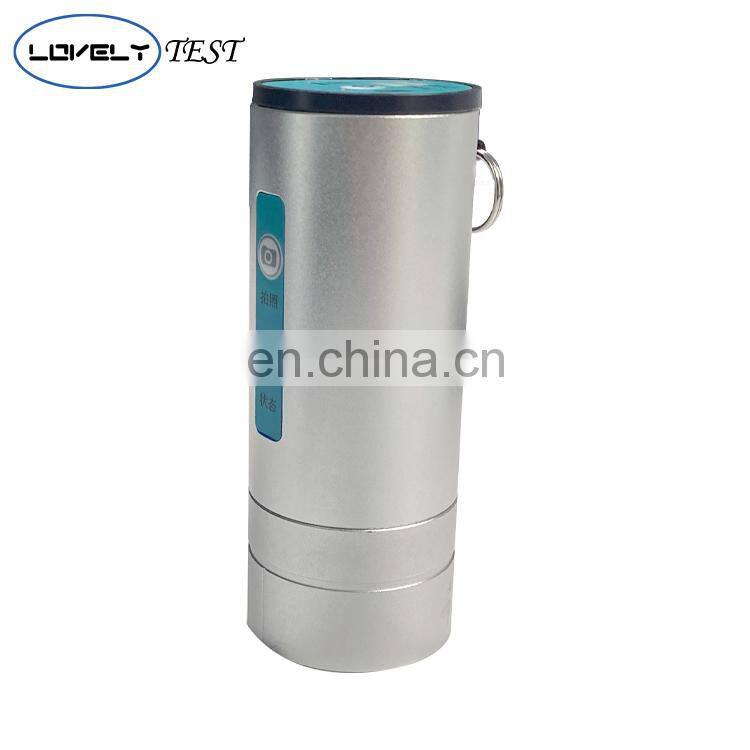

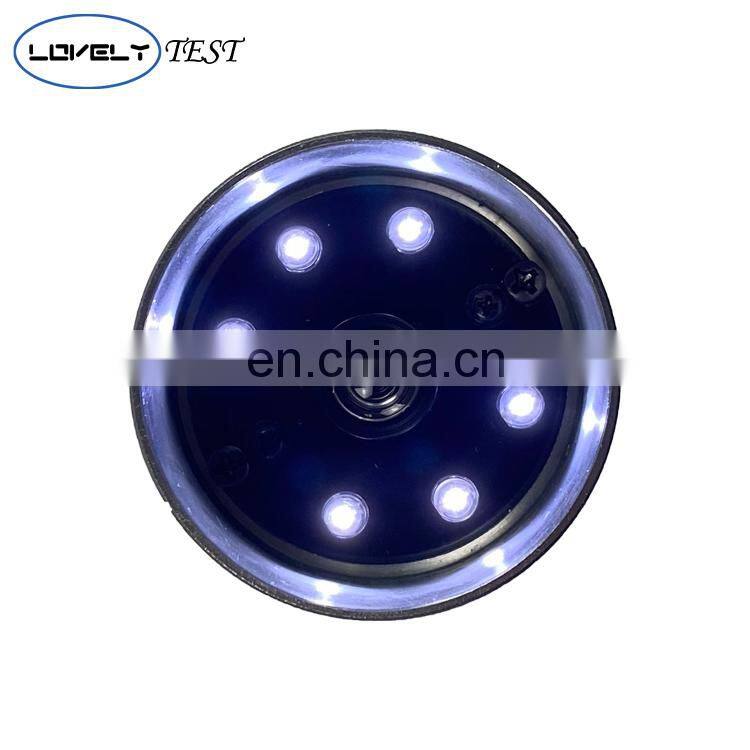

2.Original wireless camera probe, quick shot button easy to operate;
3.The host adopts Android touch screen tablet;
4.Intelligent show the wide of oblique cracks, without vertical;

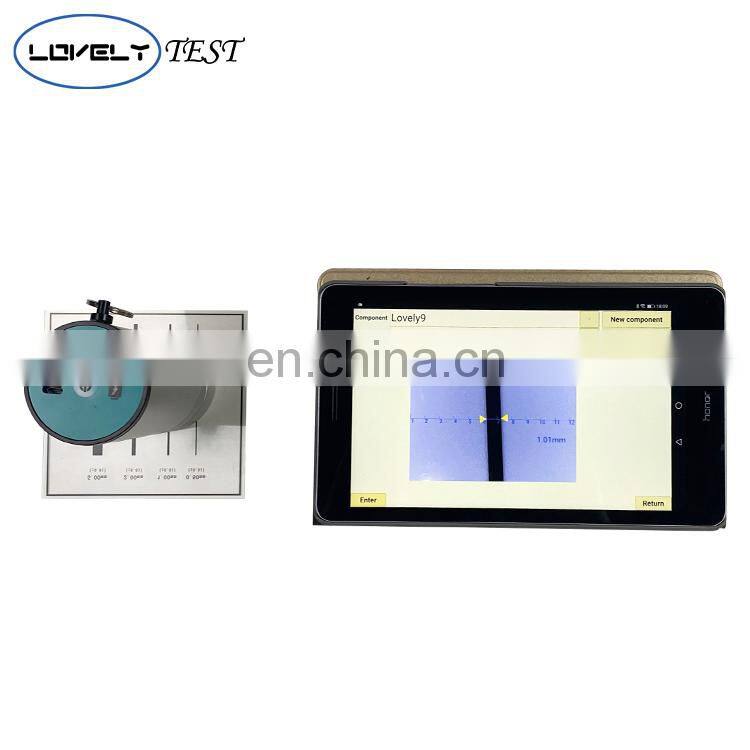

5.The image can be enlarged and reduced at will, and width can be manually assisted to read with the scale display;
6. 32G TF card storage capacity and expandable, copying data is convenient and fast;
7.The data analysis and report form are included in the main unit, which can be done without transferring to the computer.
Parameters
Specification type | F230 Wireless digital concrete crack meter |
Host parameters | Android system tablet |
Test scope | 0~10 mm |
Measurement accuracy | 0.01mm |
Estimable accuracy | 0.01mm |
Magnification | Digital 60 times |
Width Detection | stand by |
Timing monitiring | not support |
Storge capacity | 32G(expandable) |
Data transmission mode | Wireless cloud transmission(optional) |
Probe powder supply mode | Built-in rechargeable lithium battery |
Operational mode | Touch screen +shortcut |
Connection mode | Wifi connection |
Interpretation method | Automatic interpretation/ manual interpretation |
Working environment | Temperature: -10~40℃ Humidity: ＜90%RH |
Packing specification | Material: enginerring plasic Volume: 420x140x335 Weight: 4.5kg. |
Detailed Images
Application
Contact US
Cangzhou Lovely Technology Co., Ltd.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Our Services
1. Get our in-time reply via email or telephone or instant messenge. Our product specialist will guide you find the suitable product according to your requirement;
2. Get best product with excellent quality and competitive price;
3. One year guarantee for whole machine and in time technical support by video or email. Always enjoy our considerable & full-side after-sales service;
4. Feeling very convenient since we can help you source and ship products from different factories via one shipment, which is significant to save your time and cost;
5. Easily make the payment via West Union, Paypal, Credit Card for small value order;
