Product Description
Product Usage and Features

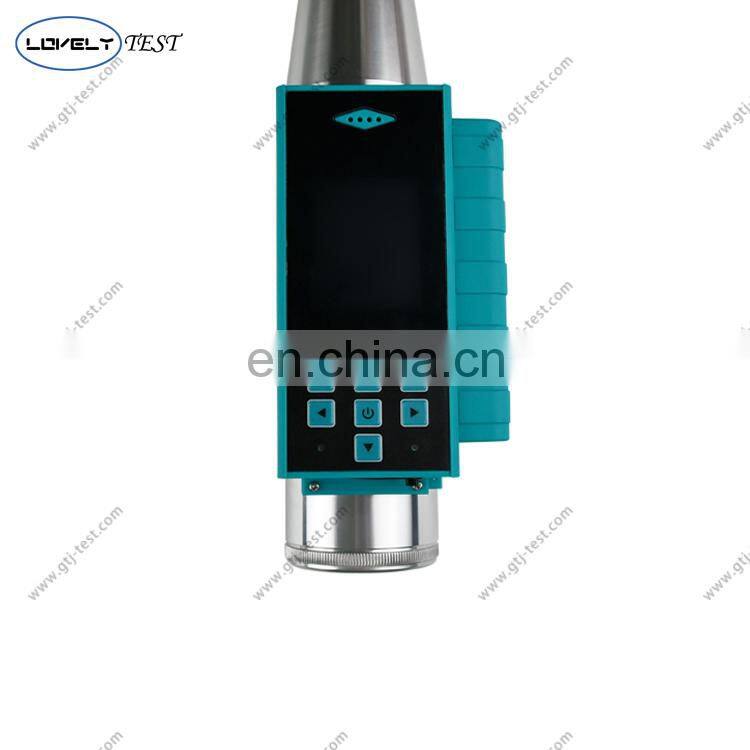

HT 225S Integrated Concrete Test Hammer

USAGE OVERVIEW
GTJ-HT225S automatic integrated rebound hammer is used for non-destructive testing and evaluation of the compressive strength of hardened concrete in building structures.
The parameters such as carbonization depth value, bounce angle, bounce test surface, and whether to pump or not can be set according to on-site inspection conditions. After the test is completed, the strength estimation result of the component can be given immediately.
Parameters
Model | GTJ-HT225 | ||
Sensor | MOS image sensor | ||
Phone APP language | English/Chinese | ||
Phone | 5 inch Android system (optional) | ||
Print function | Supports micro bluetooth printer (optional) | ||
Data Acquisition Terminal | Input mode | Automatically record rebound value | |
Data processing | Automatic date vevision, calculation and analysis | ||
Display mode | LCD | ||
System capacity | 200,000 Measuring points | ||
Power mode | Rechargeable large capacity lithium battery | ||
Wolume | 123*55*25mm | ||
Weight | 200g | ||
Mechanical Rebound Tester | Range of strength measurement | 10~60 Mpa | |
Nominal kinetic energy | 2.207J | ||
Stiffness of spring strike | 7.84N/cm | ||
Hammer stroke | 75mm | ||
Indicative Consistency error | <0.5 | ||
Calibrated rebound value of steel anvil | 80±2 | ||
Volume | 55*55*270mm | ||
Weight | 1.1KG | ||
Working environment requirements | Temperature: -10℃ ~ +40℃ Humidity: <90%RH | ||
Packing Specification | Material: engineering plastic Volume:420*140*335mm Weight: 4.8Kgs | ||


Detailed Images
PRODUCT FEATURES:
◎Mobile APP control;
◎Instrument calibration can correct the deviation caused by temperature or environment;
◎Special computer software for data analysis can quickly generate test reports;
◎Portability: One-piece design, small size and easy to carry.
◎Digitalization: The rebound value is displayed in two forms of numbers and pointers, and the displayed value is consistent.
◎Convenience: Manage data according to components, estimate intensity, and record carbonization value on site.
◎Automation: Parameters such as the number of test areas, test direction, pouring surface, and pumping can be set and modified. After a component is tested and calculated, it is automatically transferred to the next test area according to the same parameters, eliminating the need for on-site manual recording and improving Detection efficiency and timeliness.
