Ev2-W static load plate test/plate load test for soil

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Ev2-W Static Deformation Modulus Tester

Usage Overview

Ev2-W Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.

Product Description

1.Imported sensors and some components are used, which has high test accuracy and more reliable test data.
2.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage
stabilization.
3.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof
capability and ensures accurate data.

4.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with
backlight, has better visibility in various environments;
5.Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.

6.Hand-held mainframe with Bluetooth micro printer can
print directly on the spot to ensure the accuracy and objectivity of the test results.
7.USB transmission interface, easy to connect with the computer.

Specification

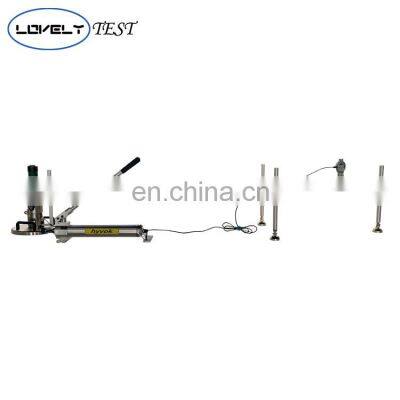

Product	Static Deformation Testing Plate Bearing Test Set
Application	Effective depth	0~ 500mm
Application		Working ambient	Working ambient -10℃~40℃ Humidity <90%HR
Electeic sedimentation meter	Size	Screen size:5inch Overall size:145×70×10mm Net weight:110g
		Storage amount	10G
		Powder supply	Lithium battery, over 18hrs continuous work time
		Display method	Chinese/English
		Location	GPS
Printer	Connection method	Wireless Bluetooth printer
Transducer	Pressure range	100kN
		Displacement range	25mm
		Displacement resolution	0.01mm
Measure device	Bearing plate	Diameter:300mm Thickness:25mm Weight:17.5kg

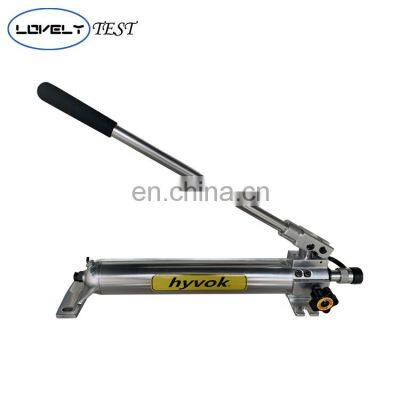

		Loading device	Hydraulic pump:100kN high pressure tube:2m Oil cylinder extensible rod:190mm,1120mm, 1160mm,1160mm,2*60mm

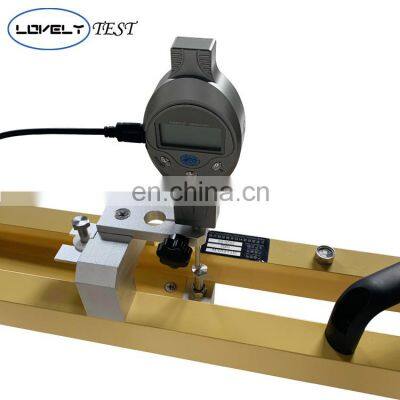

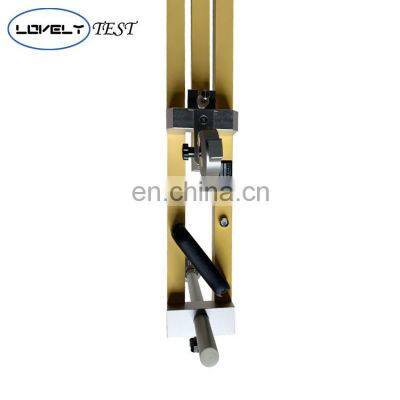

		Sedimentation measure device	Three point frame (with flexible and rotary lever arm, adjustable base) Dimension:2320570420mm Weight:12.5kg

Our Advantages

Installation and training

· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.

· Without visiting, we will send you user manual and video to teach you to install and operate.

After Service

· One year guarantee for whole machine.

· 24 hours technical support by email or calling

Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated

our customer

Company Profile

` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.

· All our products are made in China .Excellent quality with competitive price

Packing & Delivery

· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company

FAQ

Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.

Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.

Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.

Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.

Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.

Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
