Product Description

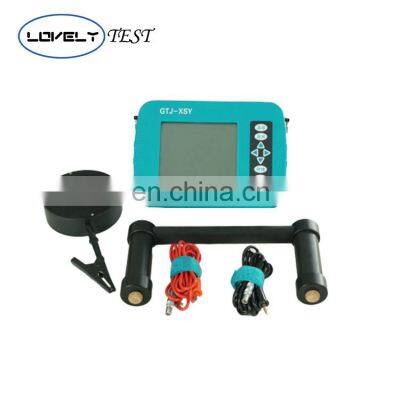

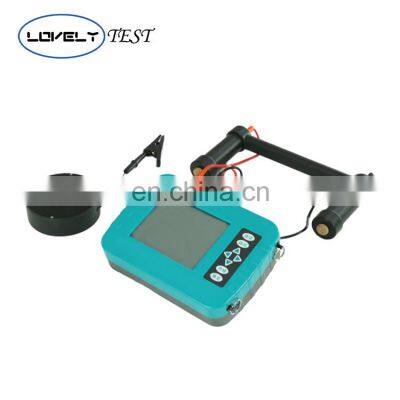

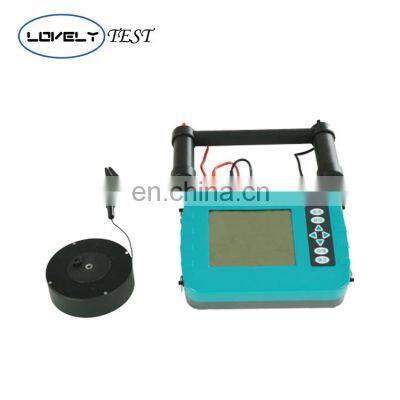

XSY Rebar Corrosion Detector

Usage Overview

USAGE

Corrosion of steel bars in structural concrete reduces the effective section area and enlarges the volume of steel bars, which leads to expansion, spalling of concrete, reduction of bonding force and bearing capacity between steel bars and concrete, and directly affects the safety and durability of concrete structures. Therefore, the detection of steel corrosion in concrete structures is an important part of the safety assessment and appraisal of existing buildings.

Product Description

-New upgrade, three- proof shell design, waterproof, dustproof, shockproof.

-XSY debar corrosion detector adopts the polarization electrode principle and measures the surface potential of concrete through the copper/copper sulfate reference electrode. It judges whether the steel is corroded and the degree of corrosion according to the potential size generated by the steel corrosion or the potential gradient formed.

-Measure the surface potential of concrete so as to achieve the non-destructive testing of corrosion degree of steel reinforcement in concrete.

-Store the potential value at the corresponding position of each measurement area and display it graphically, and transfer the data to the upper computer software, and operate on it.

Specification

Potential electrode	Size: Φ30mm*120mm
Potential electrode		Weight: 100g
Host parameter	Waterproof level: IP65
		Screen size: 5 inches
		Volume: 19514045mm
		Weight: 0.8kg
Power supply	Power supply
Potential measurement range	±1000mV
Data storage capacity	5400 survey areas/228000 points data
Working temperature	-10℃~40℃
Packing specification	Material: engineering plastic
		Volume: 420140335mm
		Weight: 5.5kg

Unpacking display

Our Advantages

Installation and training

· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.

· Without visiting, we will send you user manual and video to teach you to install and operate.

After Service

· One year guarantee for whole machine.

· 24 hours technical support by email or calling

Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
