Road Markings Test Instrument Reflectometers
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pavement Quality Indicator/Electrical Asphalt Density GaugeNegotiableMOQ: 1 -
Asphalt Electrical Density Gauge/Pavement Quality IndicatorNegotiableMOQ: 1
-
Electrical Density Gauges for AsphaltNegotiableMOQ: 1
-
Sonic Echo for Pile Integrity Testing/Pile Echo Tester for ConcreteNegotiableMOQ: 1
-
Portable Concrete Test Hammer Calibration AnvilNegotiableMOQ: 1
LA-6116 Road Markings Reflectance Coefficient Measuring Instrument
Usage Overview

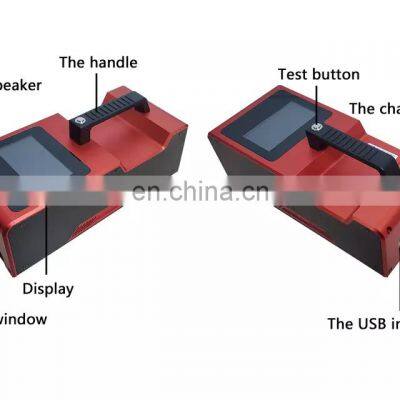

R6116 Road Marking Lines Retroreflective Measuring Instrument. The upgraded version of our company on the original marking line is an open optical path portable field measuring instrument which is used to measure the retroreflective brightness coefficient of the marking line.
Measurement item |
retroreflective brightness coefficient mcd.m-2.lx-1 |
Measurement range |
0-4000 |
Observation angle |
1.05 ° |
Incidence angle |
88.76 °, complementary angle is 1.24 ° |
Color temperature of light source |
2856 ± 50K |
Measurement aperture area |
200mm x 95mm |
Repeatability measurement error |
≤2% |
Continuous working time of battery |
> 30h |
Data storage space |
8GB |
Built-in battery capacity |
12V / 13Ah |
Charging power supply |
DC 15V |
Working environment temperature |
-15 ℃ ~ + 60 ℃ |
Ambient humidity |
<98%, no frost |
Volume of the whole machine |
360mm x 135mm x 173mm |
Detailed Images
wet and continuous rainfall.
The unit is mcd · m-2 · lx-1. The main characteristics of its research: it simulates the motor vehicle driving on the road at night, the headlights illuminate the road (made of retro-reflective materials), and after being reflected, the brightness observed by the driver in the cab.

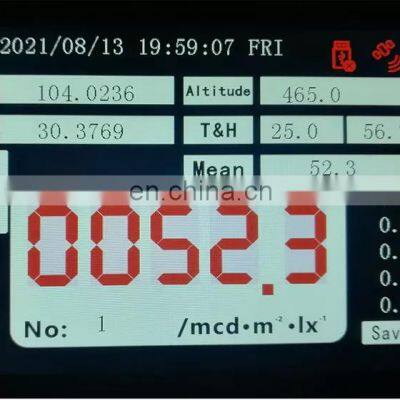

The measured parameter is the nighttime retroreflective brightness coefficient, or RL value.
