U600 Ultrasonic Crack Detection Equipment

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

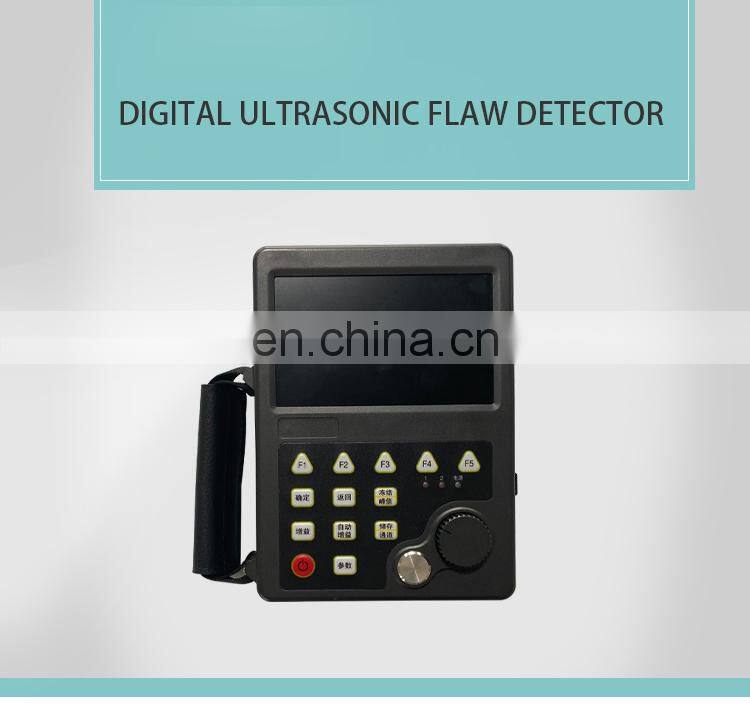

1. U600 Digital ultrasonic flaw detector and thickness measurement integrated machine integrated ultrasonic flaw detection, ultrasonic thickness measurement, and ultrasonic penetration functions in one.

2. It has various functions such as ultrasonic thickness gauge, WIFI connection network or mobile phone, HDMI, digital filtering, etc., applicable Ultrasonic testing for the surface and internal defects of metal and non-metal materials in the industrial field. The design meets the requirement of ergonomics, and is simple, intuitive, convenient and practical.

3. Provides a very high level of flaw detection with simple basic operations, which makes ultrasonic flaw detectors easy to use for both experienced and novice industry personnel.

4. U600 brings together modern high-tech such as ultrasonic flaw detection, thickness measurement, computer, electronics, mold, technology, etc., to achieve the perfect combination of these high-tech.

5. It provides the industry with more superior performance and more powerful machines, which can be widely used in various fields such as petroleum, chemical industry, metallurgy, shipbuilding, aviation, and aerospace.

1.	Small size and light weight, including the battery weight is only 0.75kg.
2.	Built-in domestic and foreign industry standards: The instrument has 11 national standards built-in, compatible with European standards.
3.	EN12668-1: 2010, which is convenient for setting various DAC and AVG curve parameters.
4.	Accurate flaw detection High sensitivity.
5.	High-precision thickness measurement. Coating can be penetrate (U620 /630).
6.	High-resolution 5.0-inch (800 × 480) widescreen true-color TFT LCD display.
7.	Recording function and mass data storage.
8.	HDMI interface Support for teaching use (U630)
9.	WIFI communication Query flaw detection results anytime and anywhere (U630)
10.	Low power consumption design Reliable function.

Technical Parameters

Model	GTJ-U610	GTJ-U620	GTJ-U630
Working principle	Ultrasonic
Working frequency range	0.5~20MHz
Plus Width	Square wave width 30 ~1000ns, step0.1ns
Detection range	0 to 14000(steel longitudinal wave)mm
Pules displacement	-45 to 1000(steel longitudinal wave)mm
Material sound velocity	300~15000m/s
Detection method	Negative wave,forward wave,two-way wave,filtering,RFwave
Gain adjustment	0 to 110dB: 0.1/1/2/6 step adiustment
Thickness measurement function	No	Normal mode 0.75-300mm penetrating coating 2-150mm	Normal mode 0.75-300mm penetrating coating 2-150mm
WIFI/HDMI/Digital Filter	No	No	Phone connection/HD pojection/digital filtering
Valve	off/incoming wave/lost wave
DAC, AVG function	DAC curve, AVG curve
Attenuator error	Every 12dB±1dB
Vertical linear error	≤3%
Horizontal linear error	≤0.5%
Dynamic Range	≥30dB
Flaw deterction margin	≥65(2.5Z20N probe)dB
Operating Voltage	12V(battery, DC)
Physical dimension	18013040mm(heightwidthdepth)
Storage	Expansion TF card, mass storage

Our Advantages

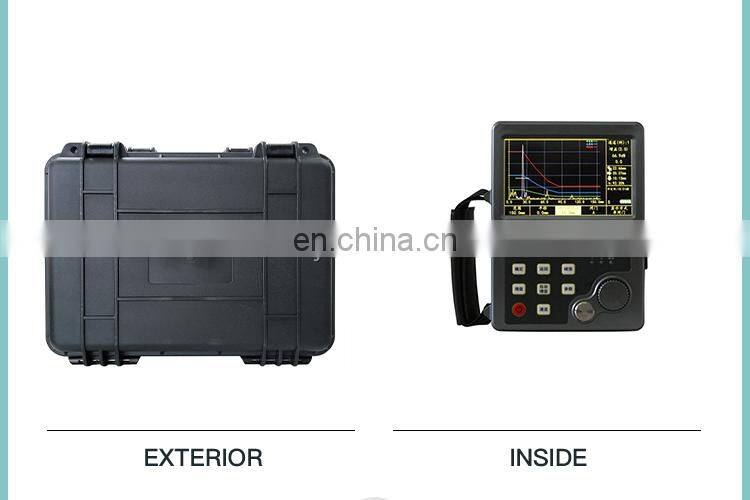

a. Package: Each product is individually packaged, providing instructions for chargers etc.
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.

If you have any questions, please contact me without hesitation, welcome your inquiry! Price can be negotiated!

Our customer

Packing & Delivery

· Tianjin port or Qingdao Port deliver by sea and also can ship by air via express company

Company Profile

Cangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you.

All our products are made in China. Excellent quality with competitive price.
