Product Description

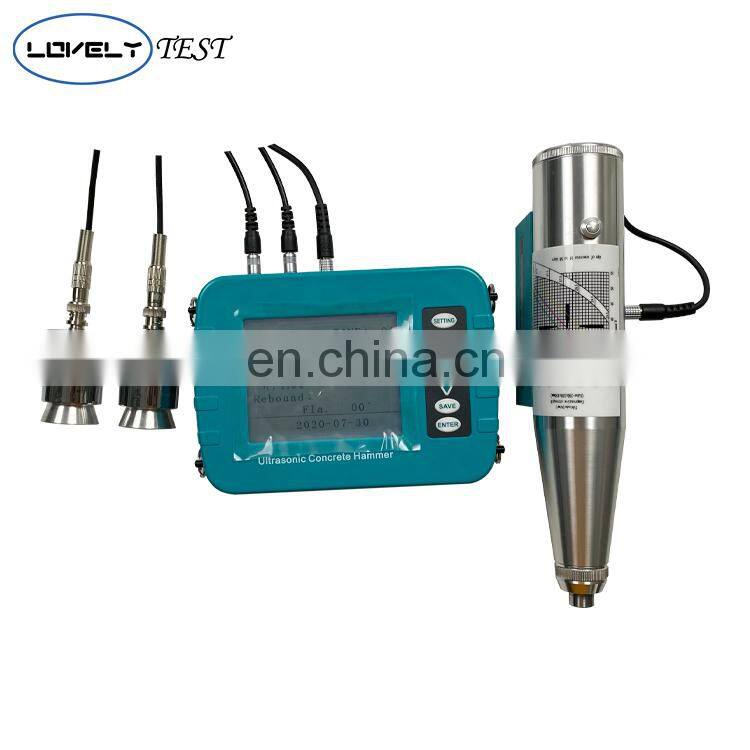

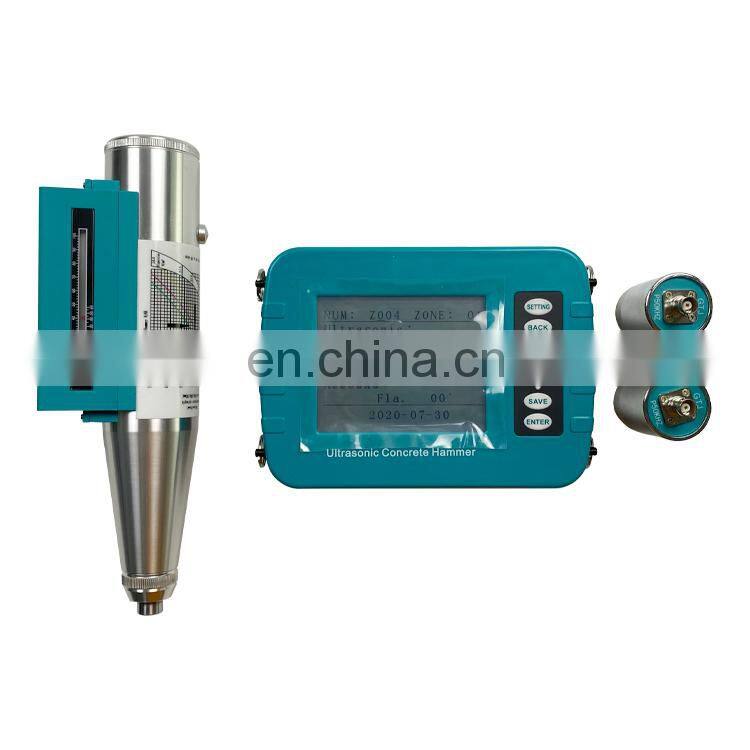

U200 Concrete Ultrasonic Rebound Test Hammer
Usage Overview
Ultrasonic Rebound Hammer is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Product Description
· New upgraded wireless cloud transmission function.
· It adopts three anti-shell design waterproof, dustproof and shockproof.
-Multi-function:The compressive strength of concrete can be tested by two methods:rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
-Multi-function:The compressive strength of concrete can be tested by two methods:rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
· High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site.
·Easy to use:full English interface, with prompts, quick learning to conduct on-site testing.
-Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
Specification
Product name | U200 Ultrasonic pulse velocity tester |
Type | GTJ-U200 |
Host Parameter | Screen Size:5 inches Volume:195*140*45mm Weight:0.85kg Waterproof level：IP65 |
Ultrasonic indication Error | ±0.1μs |
Ultrasonic Work Frequency | 50KHz |
Ultrasonic Frequency Range | 5Hz~500KHz |
Stiffness of Spring Strike | 785.0±40.0 (N/m) |
Impact Length of Ram | 75.0±0.3mm |
Impact Energy | 2.207J |
Average rebound value | 80±2 |
Power Supply Mode | Large capacity lithium battery. Working time over 8 hours. |
Working Environment | -10℃~40℃ |
Packing | Material: engineering plastic Volume:420*140*335mm Weight:5.5KGs |

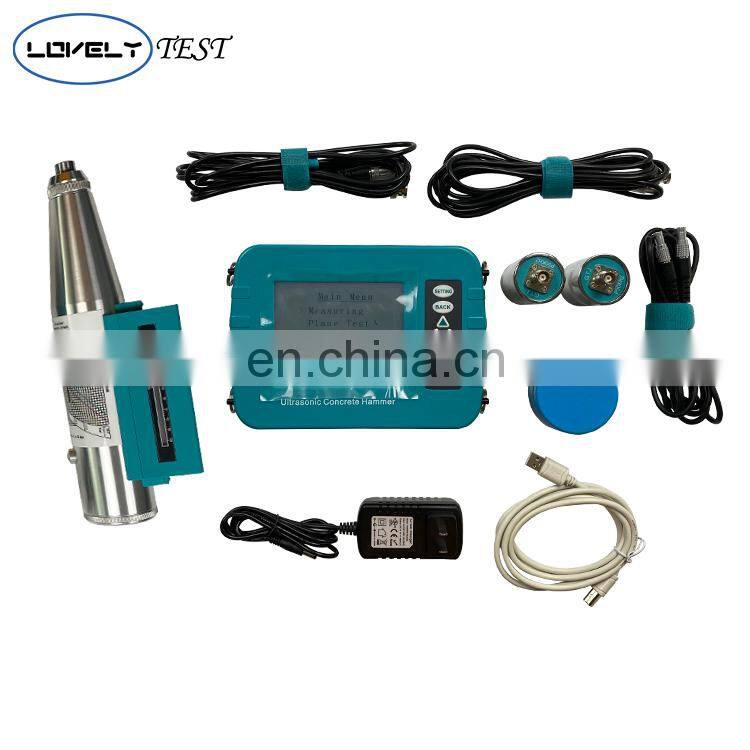

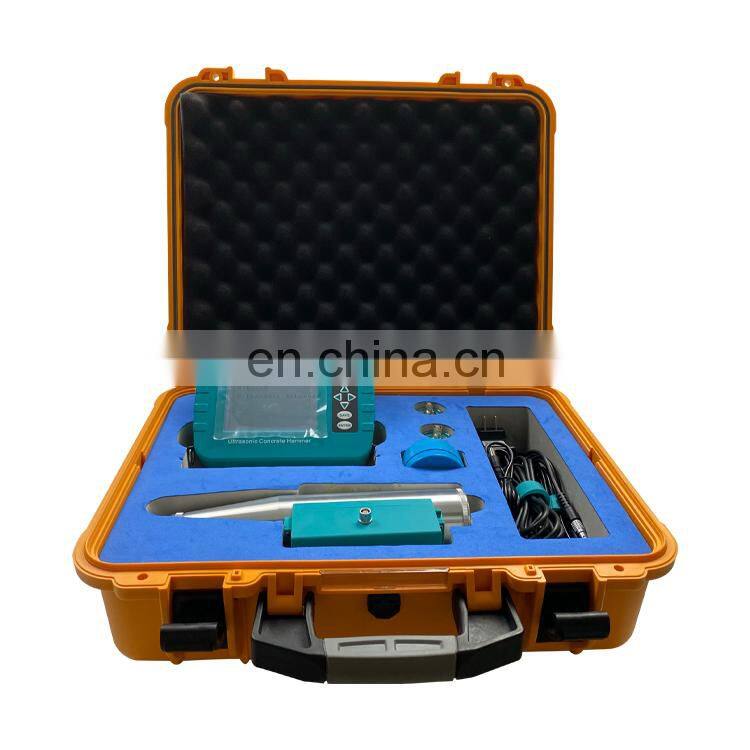

Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
