Product Description

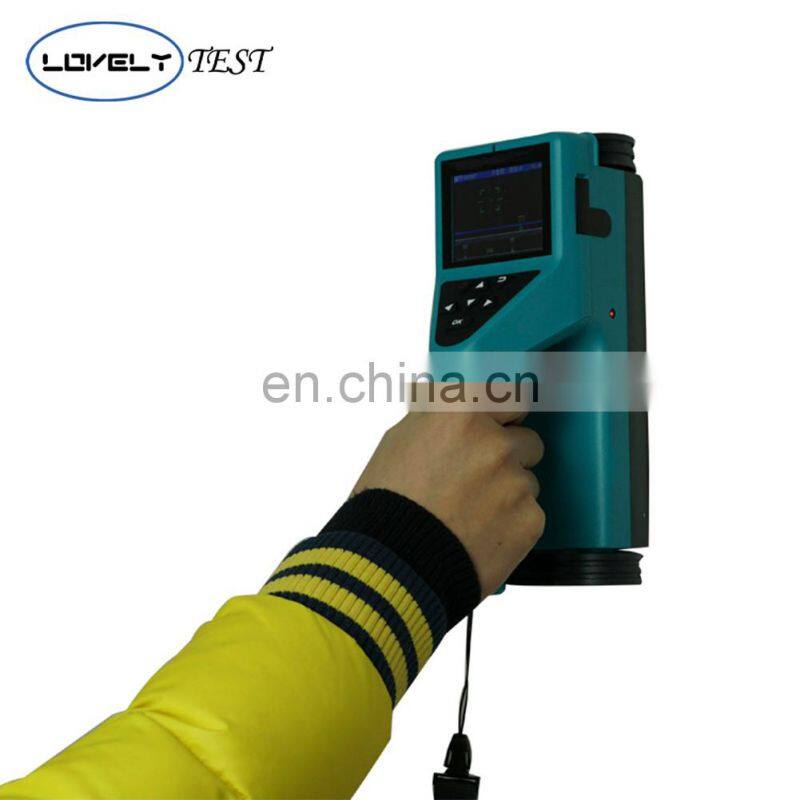

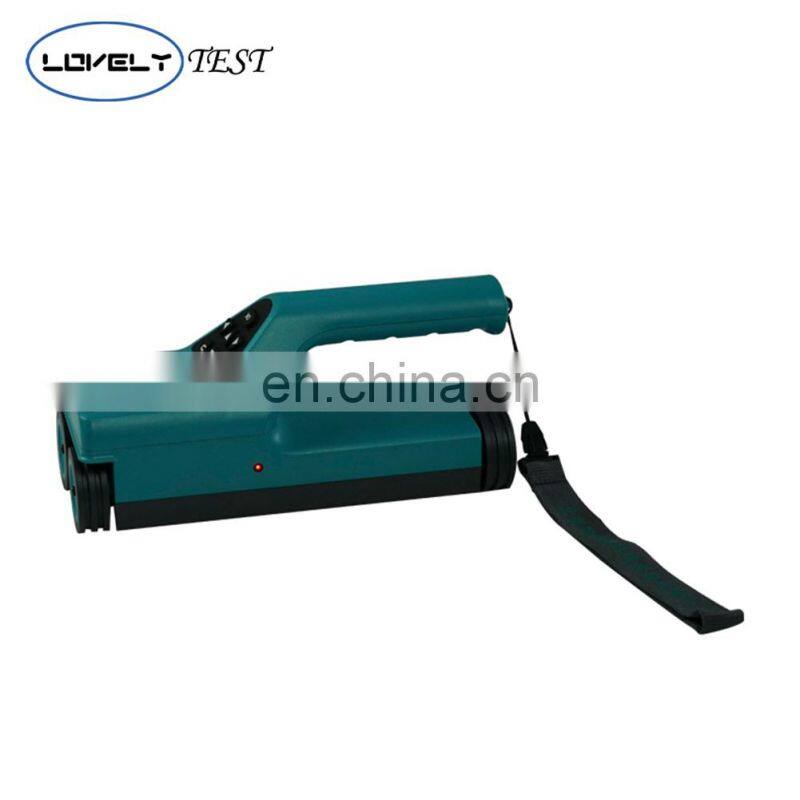

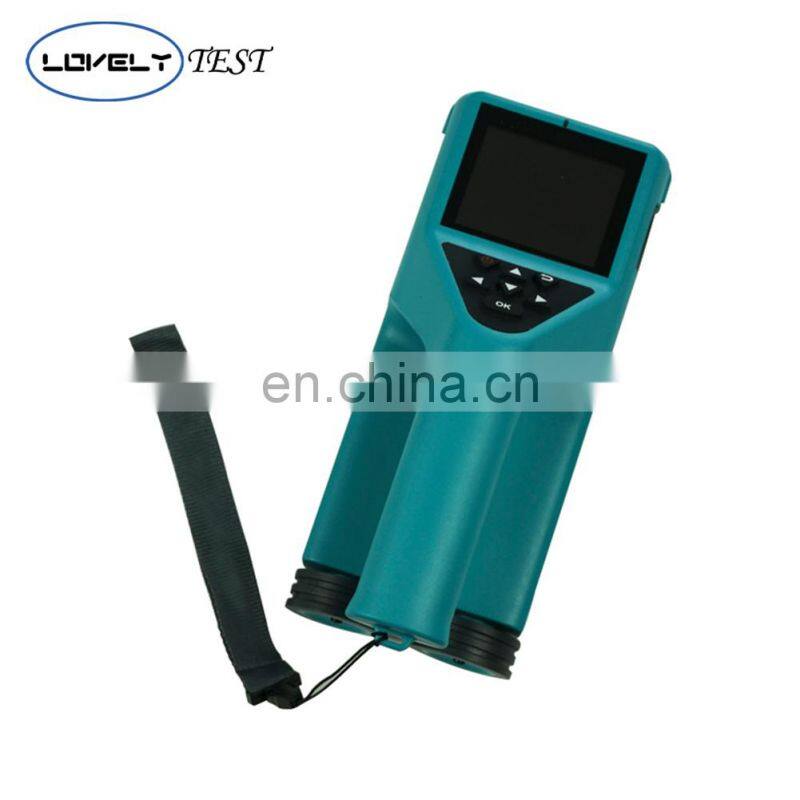

R800 Integrated Rebar Detector
Usage Overview
The integrated rebar detector is a portable non-destructive testing instrument, which can be used to test the construction quality of reinforced concrete structures. It can measure the position of rebars on the concrete surface, detect the thickness of the steel protective layer and the diameter of the rebar. In addition, it can also magnetize the inside of the concrete structure. The position of the body and the conductor are detected, such as the internal cable of the wall and the plumbing pipe. The pre-construction detection can effectively avoid damage to these facilities during construction and reduce accidents.
Product Description
Specification
Product Model | R800 |
Rebar diameter setting range(mm) | 6mm~50mm |
Small range | 1~90mm |
Large range | 1~210mm |
Super range | 1~240mm |
Applicable Scope of Diameter Estimation | 6~32mm |
Host Parameters | Screen size:2.8inch; resolution:240x320 |
Volume: 220x93x110mm; Weight: 0.6kg | |
Power supply | Lithium battery |
Storage capacity | 2000 Components*1000 Measuring points |
Working environment requirements | Temperature:-10℃~+40℃； Humidity:＜90%RH |
Other requirements | There is no corrosive gas in the air. No strong electromagnetic interference. There should be no large vibration and shock. Instruments to avoid direct sunlight. |
1.Style design, compact size, light weight, easy to carry, new upgrade wireless cloud transmission function, laser precise positioning of steel bar position;
2.Thickness detection mode is intuitive, showing thickness and steel spacing at the same time.
3.Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency. Waveform scanning mode shows the distribution of reinforcing bars intuitively, and it is more intuitive to detect and analyze dense reinforcing bars.
3.Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency. Waveform scanning mode shows the distribution of reinforcing bars intuitively, and it is more intuitive to detect and analyze dense reinforcing bars.
4.The waveform scanning mode also shows the thickness and spacing of the rebar
protective layer.
5.It can detect the middle position of the two reinforcing bars, the aiming frame and the indication light, so as to facilitate
drilling and coring.
6.The instrument automatically stores the calibration value, realizes fast measurement and
avoids the trouble of each calibration.
7.Boundary-free mesh/profile scanning, the length of waveform scanning can reach 6m at a
time.
8.TF card storage, large capacity, intuitive and convenient transmission;
9. 2.8 inch high resolution color liquid crystal screen;
10.PC professional data analysis software, data processing and report generation can be easily completed.
protective layer.
5.It can detect the middle position of the two reinforcing bars, the aiming frame and the indication light, so as to facilitate
drilling and coring.
6.The instrument automatically stores the calibration value, realizes fast measurement and
avoids the trouble of each calibration.
7.Boundary-free mesh/profile scanning, the length of waveform scanning can reach 6m at a
time.
8.TF card storage, large capacity, intuitive and convenient transmission;
9. 2.8 inch high resolution color liquid crystal screen;
10.PC professional data analysis software, data processing and report generation can be easily completed.

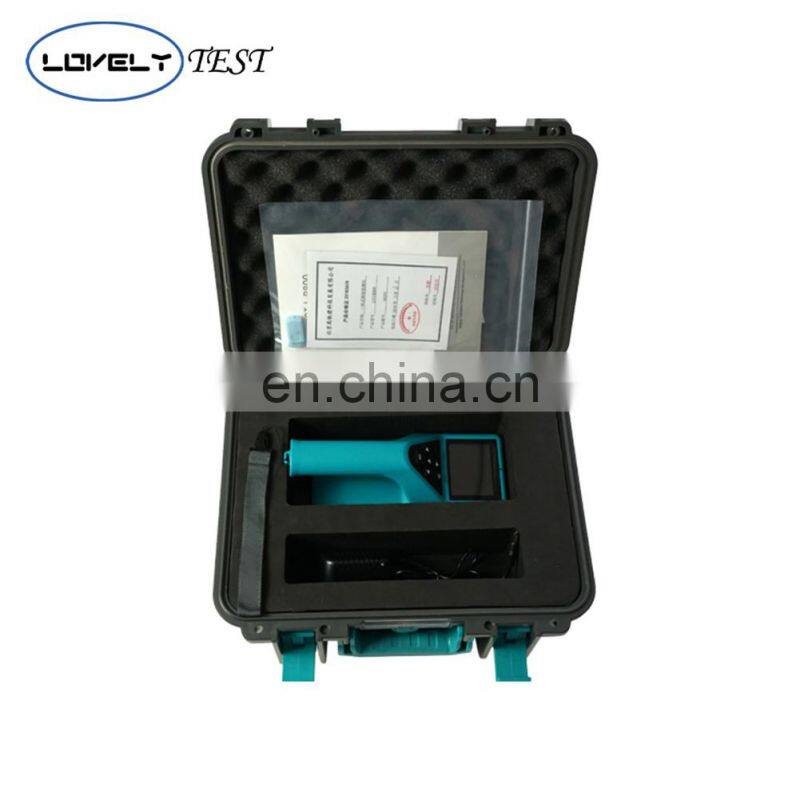

Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
