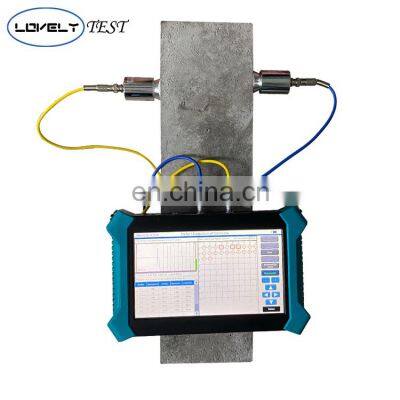

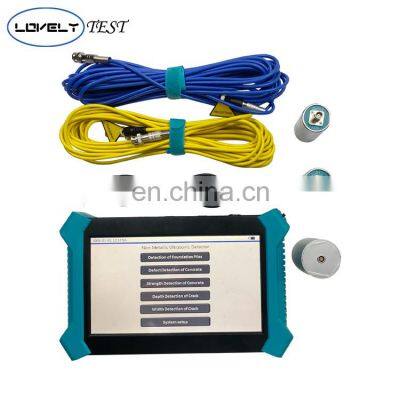

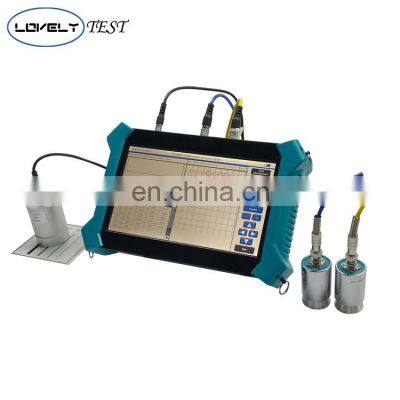

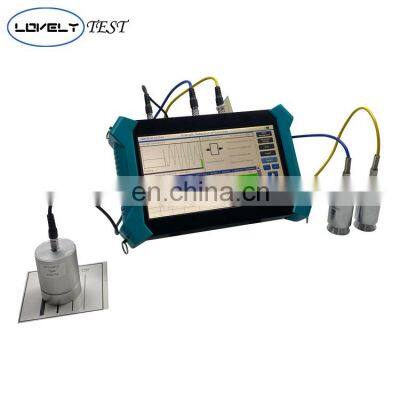

Home > Instruments & Meters > Test Instrument > Test Machine > U920 Non-metallic Ultrasonic Detector With Best Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Non-destructive Testing Foundation Pile Dynamic DetectorNegotiableMOQ: 1 -
Non-Destructive Testing Coating Thickness Gauge With Best PriceNegotiableMOQ: 1
-
Non-distructive Testing Equipment Scanning Reinforcement Protection Layer TesterNegotiableMOQ: 1
-
Integrated Floor Thickness Gauge Non-destructive Testing InstrumentNegotiableMOQ: 1
-
NDT Non-nuclear Asphalt Density GaugeNegotiableMOQ: 1
Hot sale Ultrasonic Concrete Crack Detector For Measure Crack Width and Depth
Usage Overview
U910/920 Non-metallic ultrasonic detector, structural concrete compressive strength, crack depth, crack width and defect detection; ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing,ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
Product Description
Specification
Product Model | U910 | U920 | U930 |
Master control unit | Buit-in A8 industrial control motherboard | Buit-in A8 industrial control motherboard | Buit-in A8 industrial control motherboard |
Display | 10.1 inch, high brightness, TFT color LCD capacitive screen | 10.1 inch, high brightness, TFT color LCD capacitive screen | 10.1 inch, high brightness, TFT color LCD capacitive screen |
Operational mode | Touch screen | Touch screen | Touch screen |
Storage mode | Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk | Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk | Built-in Electronic Hard Disk(>8GB)+Large Capacity U Disk |
Data transmission mode | Wireless Cloud Transport(Options) | Wireless Cloud Transport(Options) | Wireless Cloud Transport(Options) |
Acquisition mode | Single-channel manual point-by-point acquisition | Manual point-by point collection of single and double channels | Single and double channel automatic continuous and acquisition |
Number of dispossable profiles | - | Tow | |
Channel number | 1 transmit+1 receive | 1 emission+2 reception | 1 emission+2 reception |
Trigger mode | Signal triggering | Signal triggering | Signal triggering |
Sampling period(mus) | 0.05~409.6 Multistage Options | 0.05~409.6 Multistage Options | 0.05~409.6 Multistage Options |
Acoustic time accuracy(us) | 0.05 | 0.05 | 0.05 |
Acoustic time range(mus) | +1677700 | +1677700 | +1677700 |

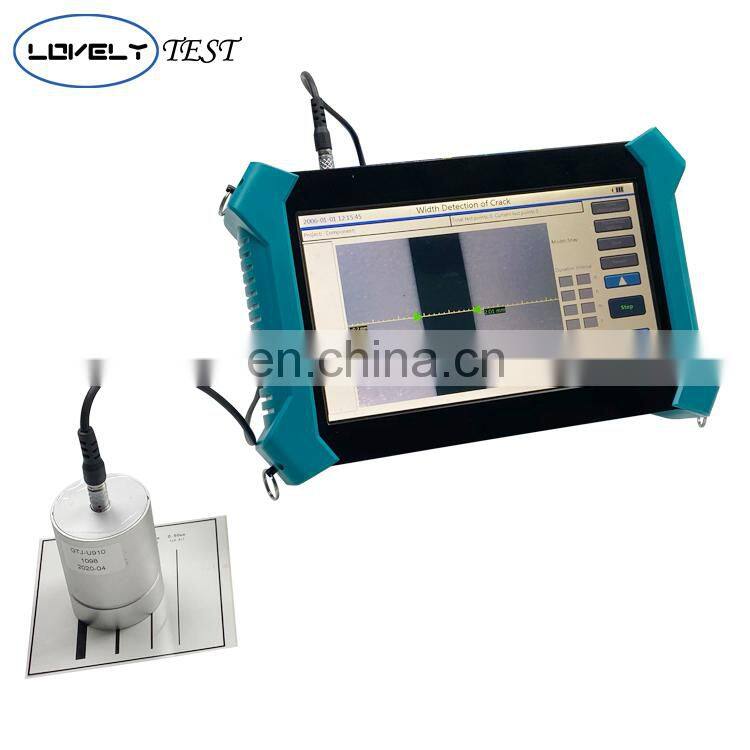

Width measurement function | Measuring range: 0~10mmMeasurement accuracy: 0.01mm | Measuring range: 0~10mmMeasurement accuracy: 0.01mm | Measuring range: 0~10mmMeasurement accuracy: 0.01mm |
Dynamic range(dB) | 0.5 | 0.5 | 0.5 |
Emission voltage(V) | Sixty-five, 250, 500 and 1000 gears adjustable | Sixty-five, 250, 500 and 1000 gears adjustable | Sixty-five, 250, 500 and 1000 gears adjustable |
Communication interface | UBS, Bluetooth, Wifi | UBS, Bluetooth, Wifi | UBS, Bluetooth, Wifi |
Working hours(h) | More than 8 | More than 8 | More than 8 |
Power supply mode | Built-in lithium batteryExternal 220V~ 16V AC/CD | Built-in lithium batteryExternal 220V~ 16V AC/CD | Built-in lithium batteryExternal 220V~ 16V AC/CD |
Working environment | Temperature(℃) -10℃~ + 40℃Humidity(RH) <90% | Temperature(℃) -10℃~ + 40℃Humidity(RH) <90% | Temperature(℃) -10℃~ + 40℃Humidity(RH) <90% |
Host size(mm) | 300*200*55 | 300*200*55 | 300*200*55 |
Product Features
2.Five functions of measuring pile, measuring strength, measuring defect, sounding depth and width measuring;
3.Stable performance and powerful function, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;
4.Semi-transparent, high-brightness, TFT color LCD screen;
5.Full touch screen operation, simple and convenient, stable and reliable;
5.Full touch screen operation, simple and convenient, stable and reliable;
6.Large memory capacity and working time of more than 10 hours;
7.It can be connected with the probe of digital display rebound instrument to measure the strength of ultrasonic
rebound;
rebound;
8.U-disk transfers data and supports software upgrading through U-disk;
9.Special analysis software is powerful, data analysis and processing, report generation, and report printing can be completed easily .

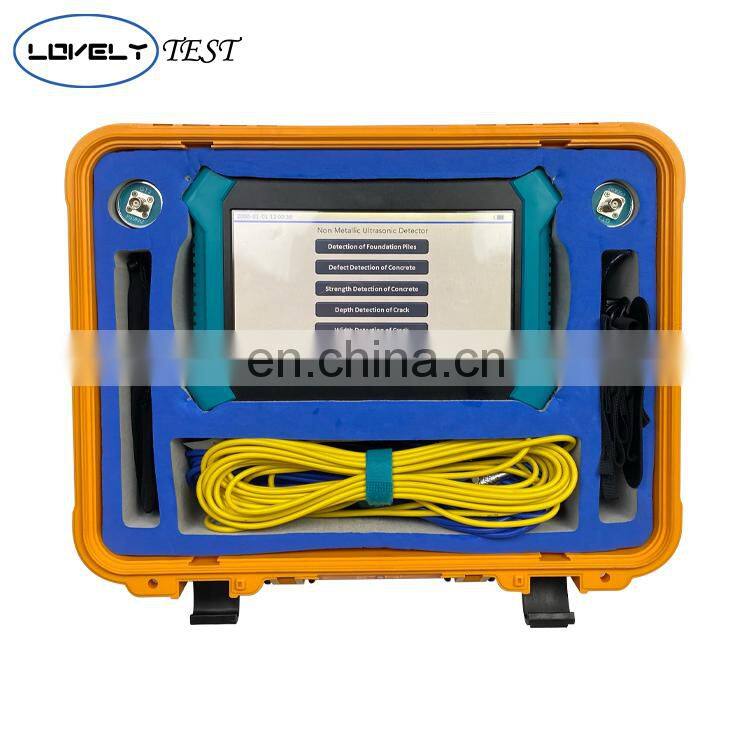

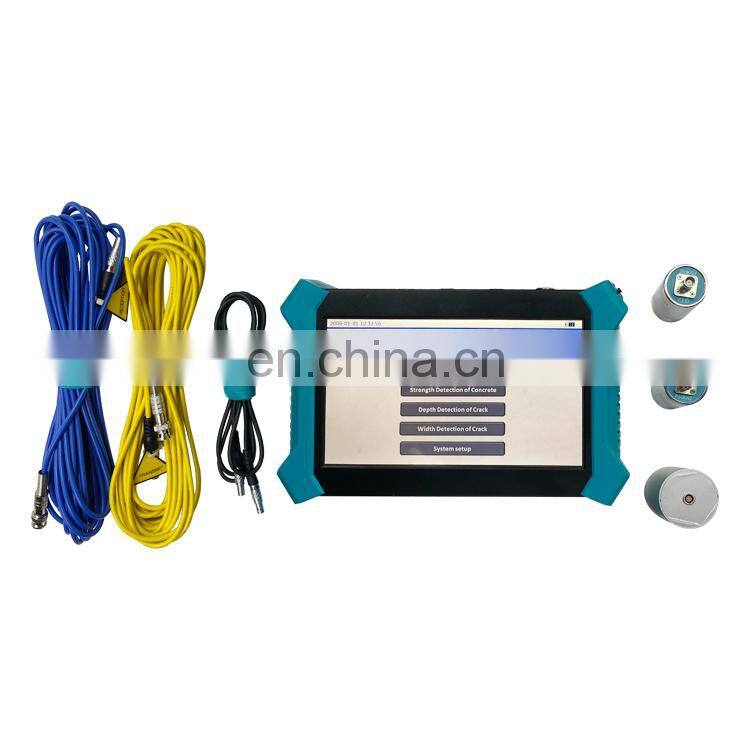

Unpacking display
