Static Load Plate Test/Static Deformation Modulus Testing Equipment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description

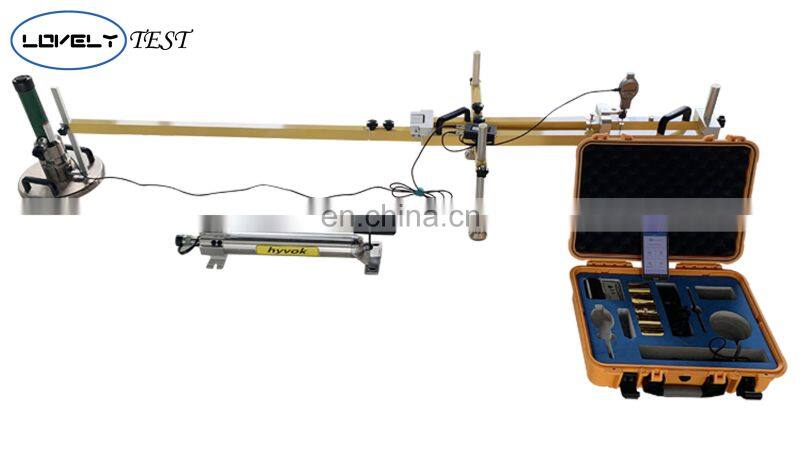

Ev2-W Static Deformation Modulus Tester
Usage Overview
Ev2-W Plate bearing test set is used to measure the settlement value of Subgrade under static load, so as to evaluate the bearing capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and the corresponding central settlement value S of the bearing plate.
Product Description
1.Imported sensors and some components are used, which has high test accuracy and more reliable test data.
2.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage
stabilization.
3.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof
capability and ensures accurate data.
2.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage
stabilization.
3.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof
capability and ensures accurate data.
4.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with
backlight, has better visibility in various environments;
5.Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.
backlight, has better visibility in various environments;
5.Automatically calculate Ev1/ Ev2 and Ev2/Ev1 values and display curves.
6.Hand-held mainframe with Bluetooth micro printer can
print directly on the spot to ensure the accuracy and objectivity of the test results.
7.USB transmission interface, easy to connect with the computer.
print directly on the spot to ensure the accuracy and objectivity of the test results.
7.USB transmission interface, easy to connect with the computer.
Specification
Product | Static Deformation Testing Plate Bearing Test Set | ||
Application | Effective depth | 0~ 500mm | |
Working ambient | Working ambient -10℃~40℃ Humidity <90%HR | ||
Electeic sedimentation meter | Size | Screen size:5inch Overall size:145×70×10mm Net weight:110g | |
Storage amount | 10G | ||
Powder supply | Lithium battery, over 18hrs continuous work time | ||
Display method | Chinese/English | ||
Location | GPS | ||

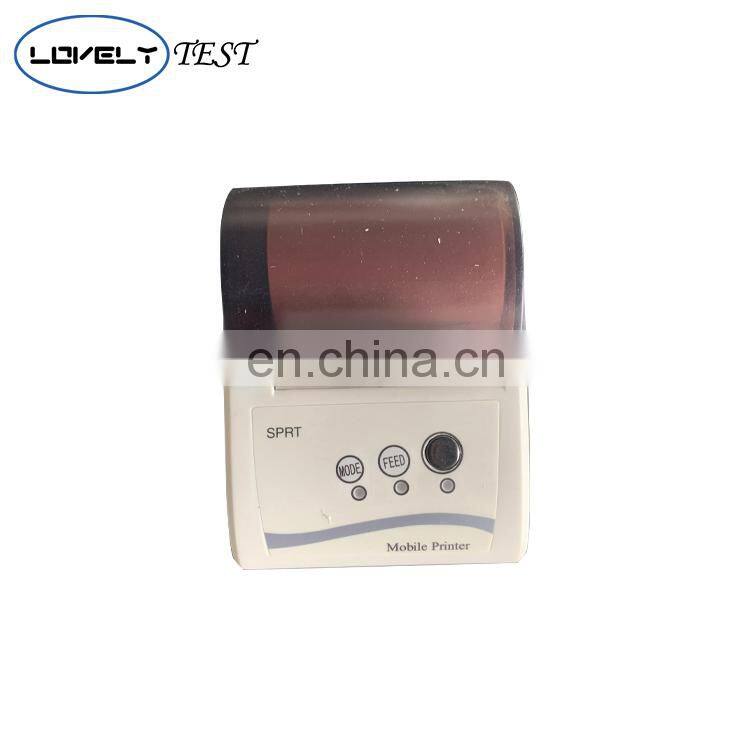

Printer | Connection method | Wireless Bluetooth printer | |
Transducer | Pressure range | 100kN | |
Displacement range | 25mm | ||
Displacement resolution | 0.01mm | ||
Measure device | Bearing plate | Diameter:300mm Thickness:25mm Weight:17.5kg | |

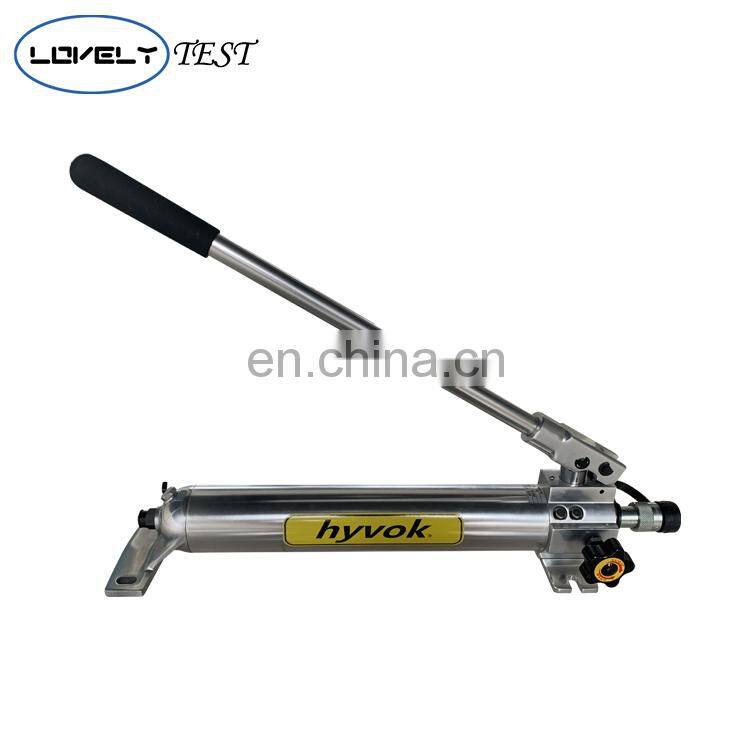

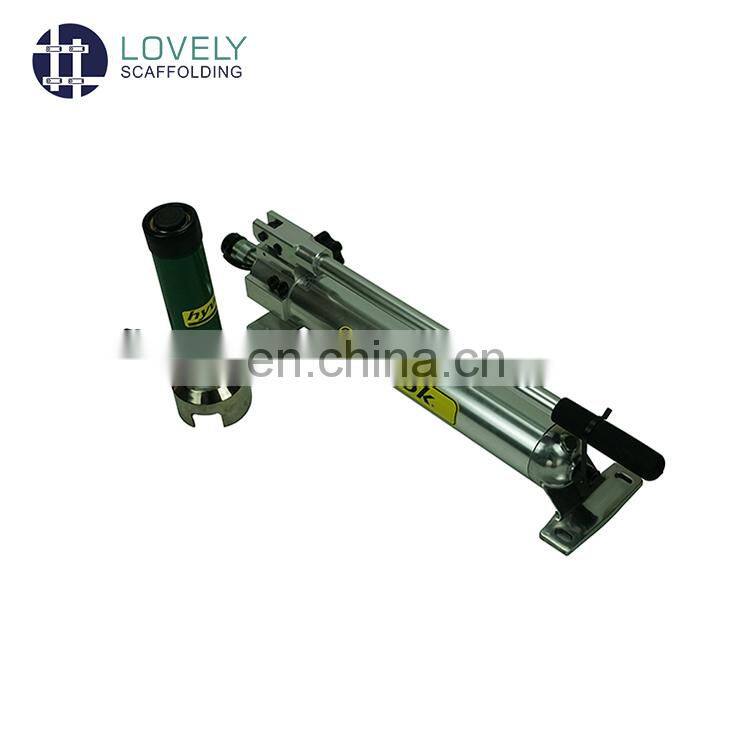

Loading device | Hydraulic pump:100kN high pressure tube:2m Oil cylinder extensible rod:1*90mm,1*120mm, 1*160mm,1*160mm,2*60mm | ||

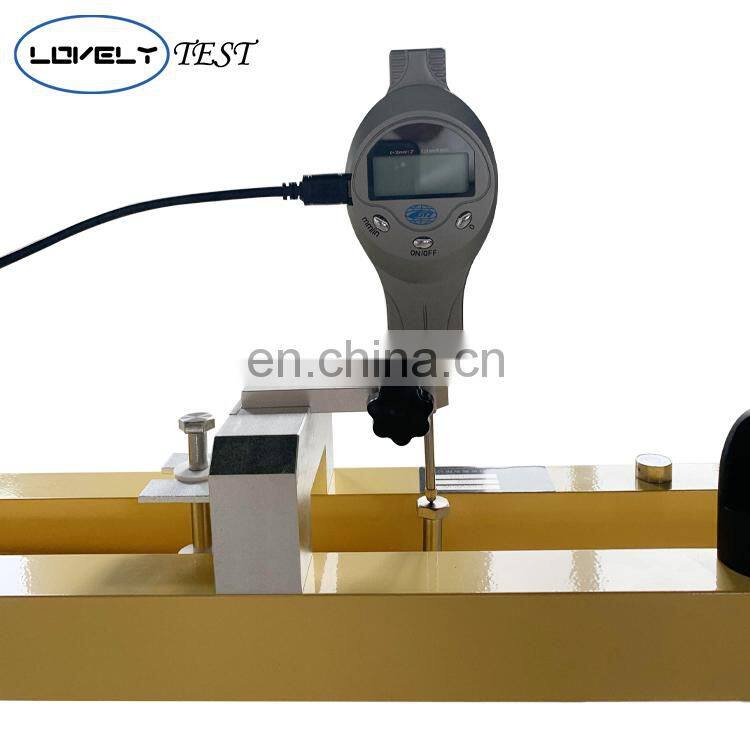

Sedimentation measure device | Three point frame (with flexible and rotary lever arm, adjustable base) Dimension:2320*570*420mm Weight:12.5kg | ||
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
