Nondestructive Evaluation of Cracks in Concrete Beams Crack Camera

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Usage and Features

F800 Wireless Crack Monitoring Detector

USAGE OVERVIEW:

The wireless crack comprehensive detector integrates crack width measurement and crack depth measurement.It is used to measure the width and depth of cracks on bridges, tunnels, towers, buildings, concrete components, pavements, and surfaces of non-metallic components.

PRODUCT FEATURES:

1.Original wireless camera probe; host adopts Android system tablet, English/Chinese full touch operation;

2.Intelligent interpretation of oblique cracks; images can be zoomed in and out.

3.The sounding bracket has scale on it, large capacity tablet and TF card storage;

4.The host can analysis data and generate report form without transferring to the upper computer.

Parameters

Master control unit	8-inch tablet Android operating system
Wireless Width Gauge Unit	Test range and accuracy	0~10mm: 0.01mm
		Magnification	Digital 60 times
		Operational mode	Touch screen + shortcut keys
		Connection mode	Wifi connection
		Data transmission mode	Wireless cloud transmission (optional)
		Measuring method	Automatic/ manual
		Power supply mode	Built-in lithium battery
		Working hours	More than 10 hours
		Working environment	-10℃~ 40℃ ＜90%RH
Wireless Depth Gauge Unit	Test scope	5~500mm
		Measurement accuracy	Less than 5mm or 2%~10% of the actual depth
		Operational mode	Touch screen + probe automatic trigger
		Connection mode	Bluetooth connection
		Data transmission mode	Wireless cloud transport(options)
		Measuring method	Fast/standard measurement
		Power supply mode	Built-in lithium battery
		Working hours	More than 10 hours
		Packing dimensions	*420140335mm*

Detailed Images

Wireless Crack Monitoring Detector

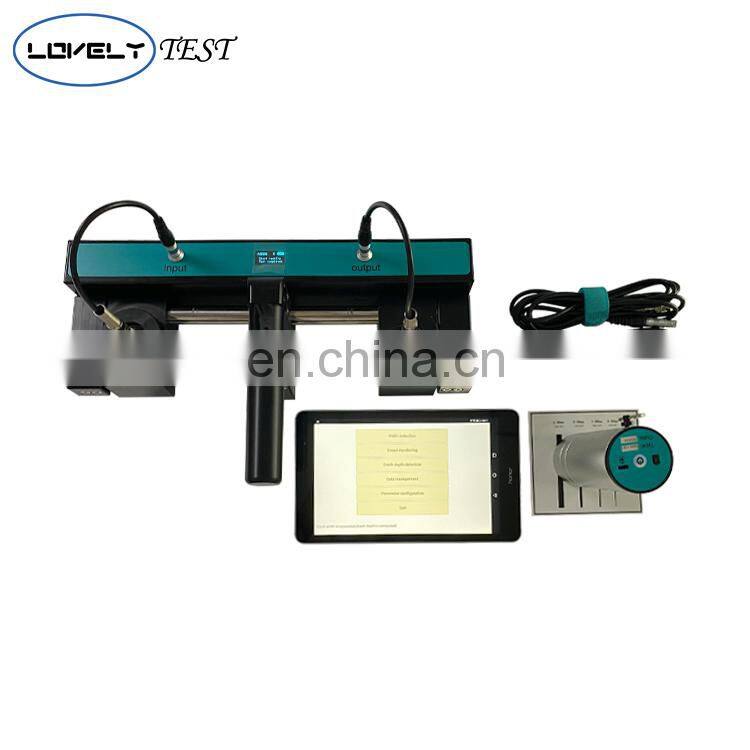

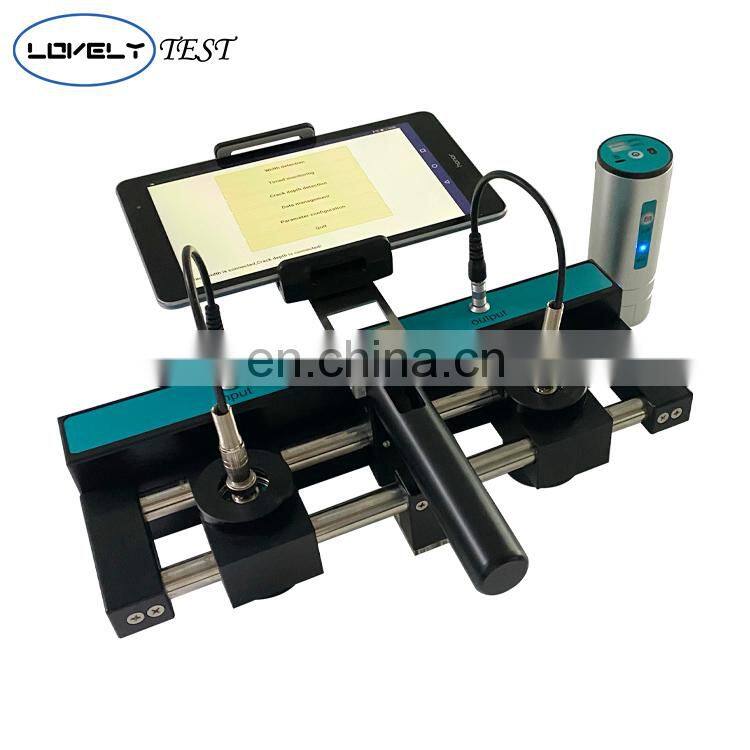

The instrument is mainly composed of a tablet computer, a crack width measuring device and a crack depth measuring device.

Operation:

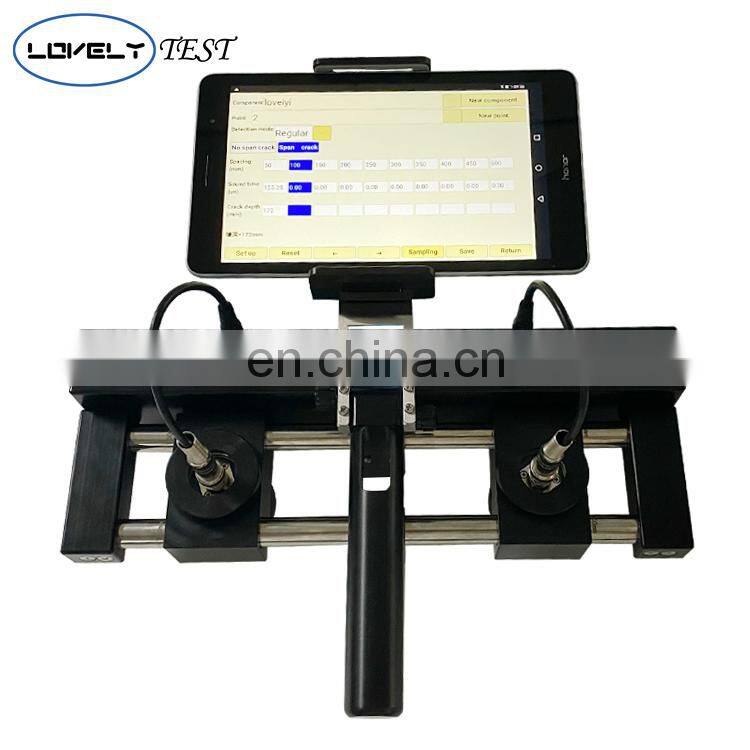

The 8 inch host adopts Android system with English full touch operation. Images can be zoomed in and out.

When measuring the crack width, the tablet computer is connected to the crack width measuring device through wifi, and imaging on the tablet computer, the software can automatically interpret the value of the crack width; when measuring the crack depth, the tablet computer is connected to the crack depth measuring device via Bluetooth, which can pass quick measurement or standard Measure the crack depth value.

Application

Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years, With advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.

We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.

We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.

Our Customers and patent certificate

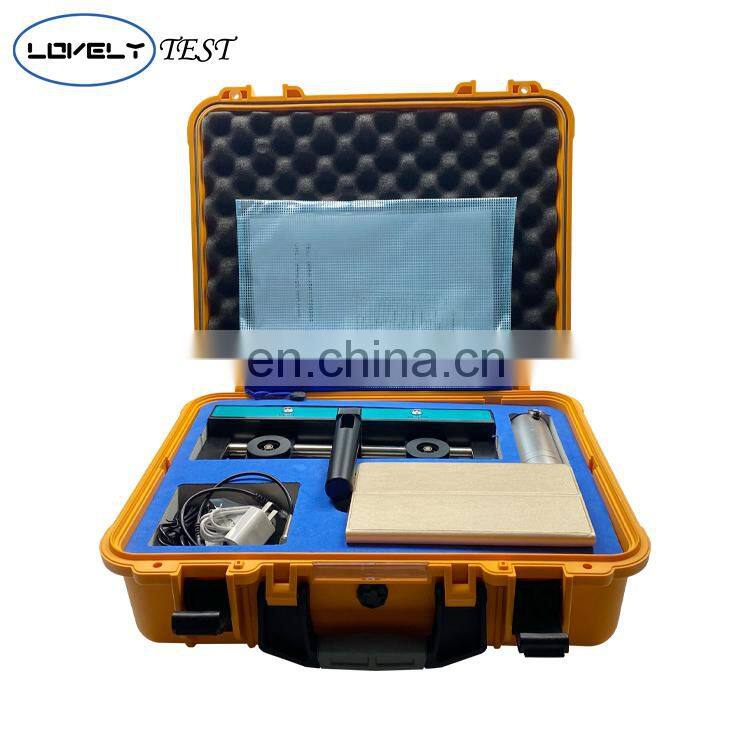

Packing & Delivery
