STA Synchronous Thermal Analyzer up to 1500

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

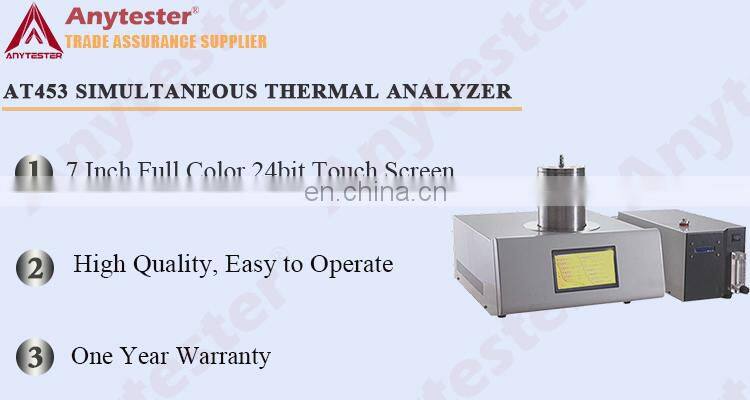

AT453 Synchronous Thermal Analyzer (old model AT453) combined the thermogravimetric analysis TG with differential thermal analysis DTA or differential scanning calorimeter DSC, and TG and DTA or DSC are obtained by the same sample in the same measurement.

Standard

EN ISO 11358 12989-2 11358

ASTM D2288 6375 6382

IEC 60881-4-1

Specification

Model	AT453
DSC range	±lmW～±500mW
DSC accuracy	±0.1μW
Temp range	R.T ~ 1150℃
Heating rate	0.1 ~ 100℃/min
Temperature resolution	0.1℃
Temperature fluctuation	±0.1℃
Constant temperature time	0-300min
Cooling time	15min (1000 ℃ ~ 100 ℃)
Balance capacity	1mg ~ 2g (5g optional)
DTA range	±10μV- ±2000μV
Data interface	Standard USB interface
Power supply	220V, 50Hz

Details & Features

★ Furnace heating using precious metal nickel-cadmium alloy wire double-winding system to reduce interference, more high temperature

★Tray sensor, the use of precious metal nickel-cadmium alloy Seiko to create, with high temperature, oxidation resistance, corrosion resistance and so on

★ Power supply, the cooling part of the cooling, and the host separately to reduce the heat and vibration on the micro-heat balance

★ The use of open-lid structure, easy to operate. It is difficult to operate the sample on the furnace and cause the sample rod to be damaged

★ The host of the use of water temperature device to isolate the heating furnace on the chassis and micro-heat balance of heat.

★ According to customer requirements to customize the furnace

★ Using imported 32bit ARM processor Cortex-M3 core, sampling speed, processing faster.

★ The 24-bit quad sampling AD collects the DSC signal and the TG signal and the temperature T signal.

★ Power supply and water cycle part of the separate 8bit microcontroller with a separate control, so that the host and the cooling part of the separate, do not interfere with each other, but the two are closely connected to the cooling part of the host control.

★ Between the software and the instrument using USB two-way communication, fully realize the remote operation, the computer software can be used to set the parameters of the instrument and the operation of the instrument to stop.

★ 7 inch full color 24bit touch screen, a better man-machine interface. TG calibration can be achieved on the touch screen

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
