Product Description

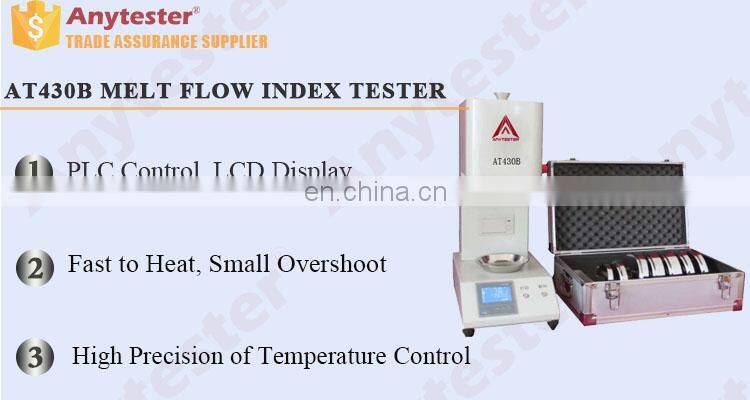

Melt Flow Index Tester

AT430B Melt Flow Index tester (original HY4310B) is used to measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications. It is suitable for PC, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature.
Details and Features
★ PLC control, LCD display, easy to operate ★ Real time determine and display the temperature value ★ With upper-limit temperature protection function, voice prompt function when the cylinder reaches to constant temperature, etc. ★ Fast to heat, small overshoot ★ High precision of temperature control ★ Fast to restore to the constant temperature after feeding ★ With mini-printer to printout the test result
Specification
Model
AT430B
Temperature range
RT~400℃
Temperature accuracy
±0.2℃
Temperature resolution
0.1℃
Heating time
＜30 min
Temperature recovery time
＜4 min
Time accuracy
0.01s
Standard die
Tungsten carbide
Diameter: Φ2.095±0.005mm
Length: 8.000mm±0.020mm
Feed cylinder
Inner diameter: Φ9.550±0.025mm
Length: 160mm
Diameter of piston
Φ9.475±0.015mm
Length of piston head
6.350±0.100mm
Measuring range
0.1～100g/10min
Cutting mode
Manual or automatic, selectable

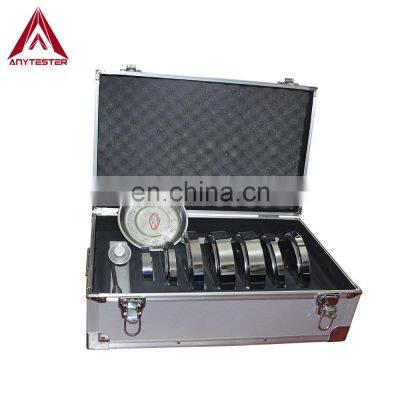

Standard test loads
8 grades
Power supply
AC220V, 50Hz, 800w
Dimensions
260mm×400mm×600mm (L×W×H)
Weight
60kg
Our Company
Packing&Delivery
Package
Weight
35Kg


 Packaging
    Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.

3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term
                                                                                       T/T
EXW
                                                                                                 30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
                                                                                                    30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 5000usd
Delivery Time
7~10days after receiving payment for one container
