Touch Screen Type Flammability Tester of Small Polymeric Component Materials Comply With UL1694
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Glowing/Hot-Wire Testing Machine Comply With IEC60695NegotiableMOQ: 1 -
3 Stations HDT/VICAT TESTING Machine Comply With ISO75NegotiableMOQ: 1
-
Determination Of The Comparative Tracking Indices Tester Comply With IEC60112NegotiableMOQ: 1
-
Lab Mini Single Screw 3D-Filament Drawing SystemNegotiableMOQ: 1
-
Melt Flow Index TesterNegotiableMOQ: 1
Product Description

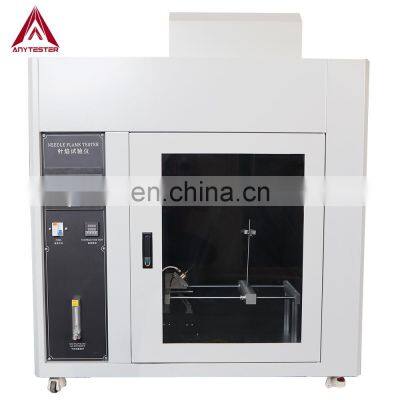

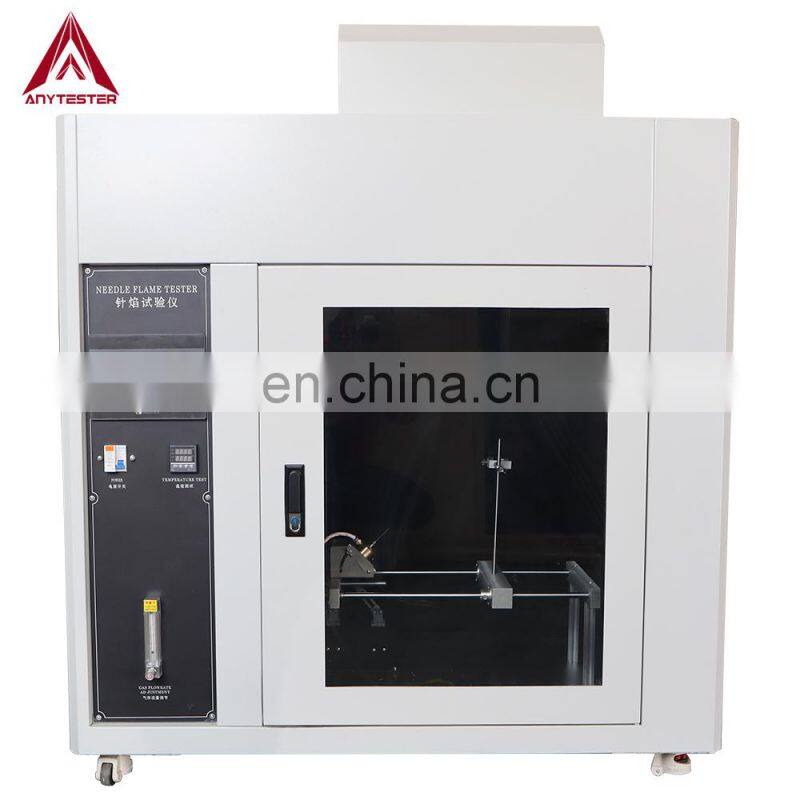

AT803 Needle Flame Tester uses a specified size (Φ0.9mm) needle burner with specified gas (butane or propane) ignites the specimen by specified angle (45°) and time. Observe if the specimen and layer is ignited or burning time and burning length to determine the fire risk of small flame caused by equipment fault conditions.
Standard | ||||
BS EN ISO 6941 | EN71-2 | UL 1694 | ||
IEC60695-11-5, 60695-2-2 | GB/T 5169.5, 4706.1 | |||
Technical Specification | AT810 | |
Needle burner | inner dia.: Φ 0.5 ± 0.1mm, outer dia. ≤Φ 0.9mm, Length ≥35mm | |
Burner angle | Vertical or 45° | |
Flame height | 12mm ± 1mm | |
Gas flame temperature gradient | 100 ° C ± 5 ° C to 700 ° C ± 3 ° C (room temperature to 999 ° C) | |
Test space | ≥ 0.5m3 | |
Ignition time | 1s～999.9s | |
Temperature Sensor | K type Φ 0.5mm insulated armored galvanic | |
Dimensions | 1120mm ×520mm ×1020mm | |
Vent holes size | Φ 100mm | |
Power supply | 220V, 50Hz | |
Weight | 120kg | |
Details & Features
* Using digital instrument control system, import control components;

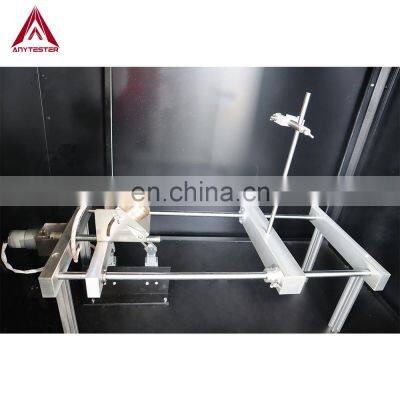

* Fixture made of high quality stainless steel, corrosion-resistant, no rust;
* Fixture made of high quality stainless steel, corrosion-resistant, no rust;
* Tempered glass observation window, the entire test process can be observed Technical Specification:

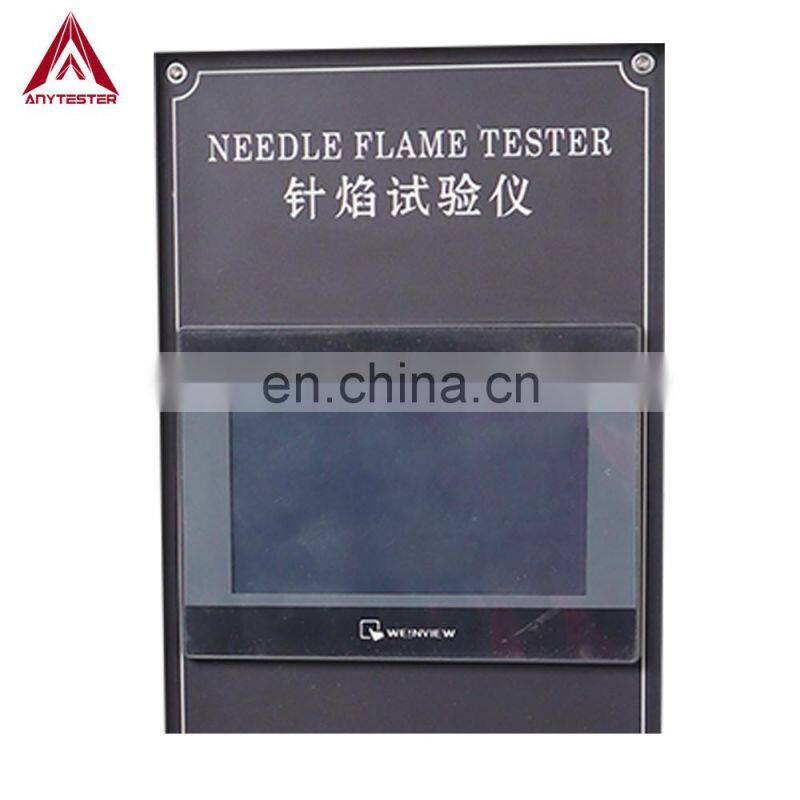

* Touch Screen Control, easy to operate
* One-button time device, to facilitate the use of equipment;
* Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Certifications
Packing & Delivery
Packaging | ||
Size(cm) | 116(L) * 60 (W) * 131 (D) | |
Weight | 260 Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 30~40 days after receiving payment for one container | ||||
