UL94&ISO1210 Horizontal And Vertical Flammability Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
ISO379 & ASTMD5132 Automotive Interior Flammability Tester With Keyboard Control
-
Touch Screen Type Horizontal Burning Rate Tester Of Motor Vehicles Polymeric Material Comply With ASTM D5132
-
Touch Screen Type Flammability Tester of Small Polymeric Component Materials Comply With UL1694
-
Glowing/Hot-Wire Testing Machine Comply With IEC60695
-
3 Stations HDT/VICAT TESTING Machine Comply With ISO75
-
Determination Of The Comparative Tracking Indices Tester Comply With IEC60112
Product Description
Product Description

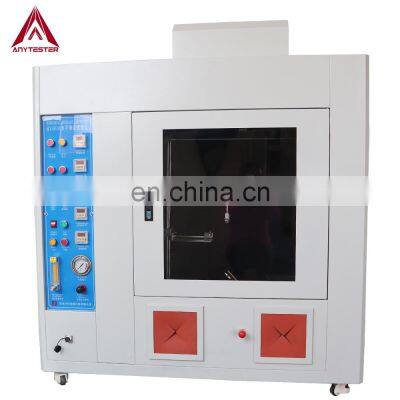

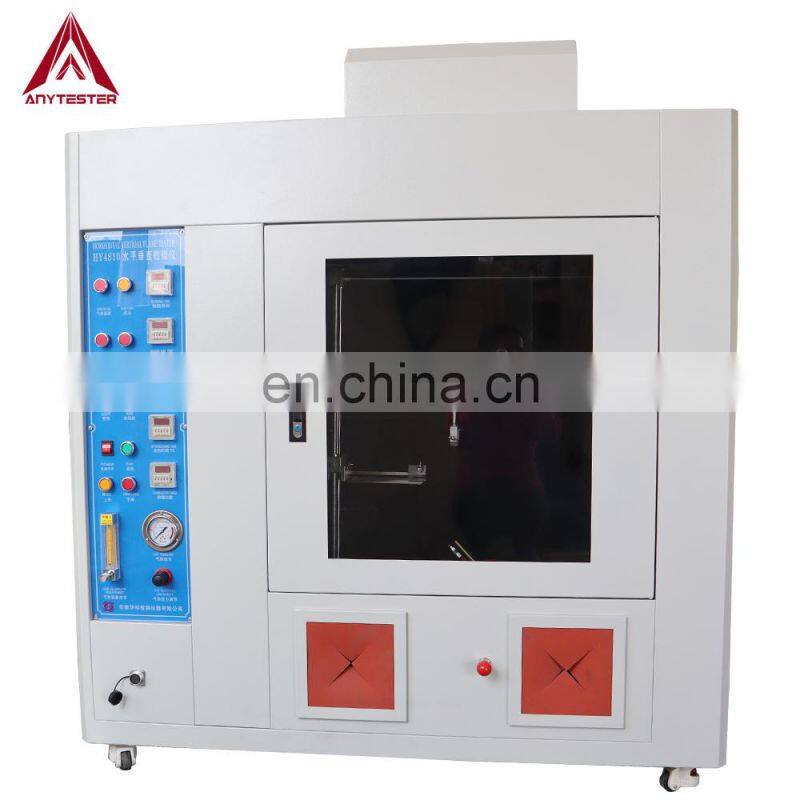

AT810 Horizontal and Vertical Flammability Tester: A rectangular bar-shaped test specimen is supported horizontally or vertically by one end and the free end is exposed to a specified test flame. Observe if the specimen and ignition on layer is ignited or burning time and to determine the combustibility of specimen.
Standard | ||||
ISO 1210, 9770 , 9772 ,9773 | ASTMD 5207 | UL94, UL HB | ||
GB/T 2408， 5169.16/17, 83325169.16/17, 8332 | HF-1, HF-2 | IEC60695-11-10/20 | ||
Technical Specification | AT810 | |
Inclination | 0°, 20° , 45° | |
Flame height | 20mm ~ 175mm(adjustable) | |
Burning time | 1s～999.9s | |
Remove time | 1s～999.9s | |
Ignition times | 1-9999times | |
Thermocouple thermometer | 0.5mm K type, imported insulated high temperature armored thermocouple | |
Test space | >0.7m3 | |
Temp measure range | 0~1050℃ | |
Dimensions | 1200×600×1120mm | |
Power supply | 220V 50Hz | |
Weight | 120kg | |
Details & Features
* Using digital instrument control system, import control components;
* Meet the latest test standards;
* Meet the latest test standards;

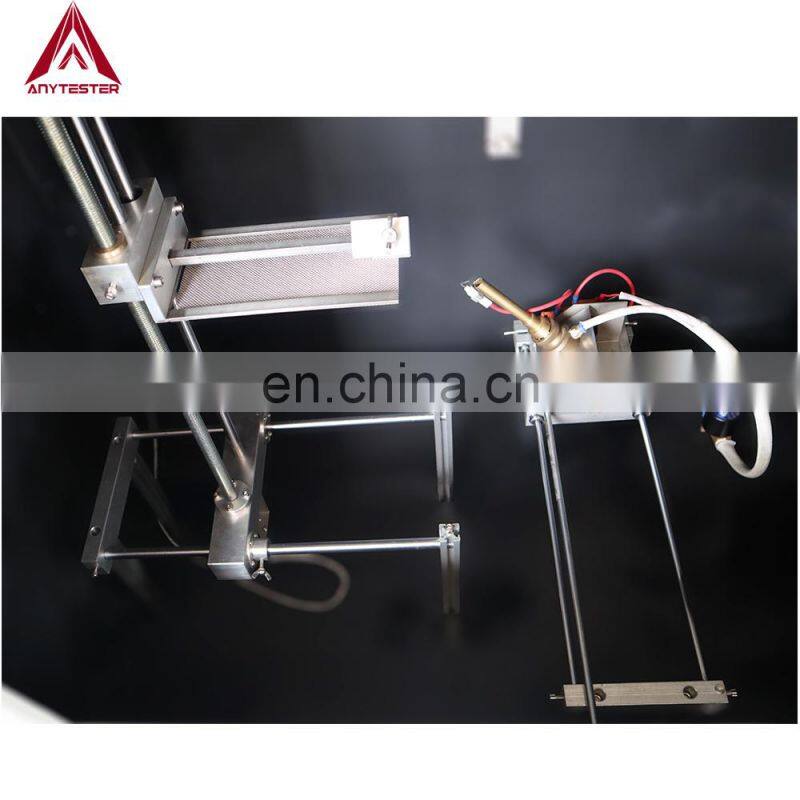

* Multi - functional adjustment fixture, professional anti - rust treatment;
* One-touch operation design, single person to complete the job independently;

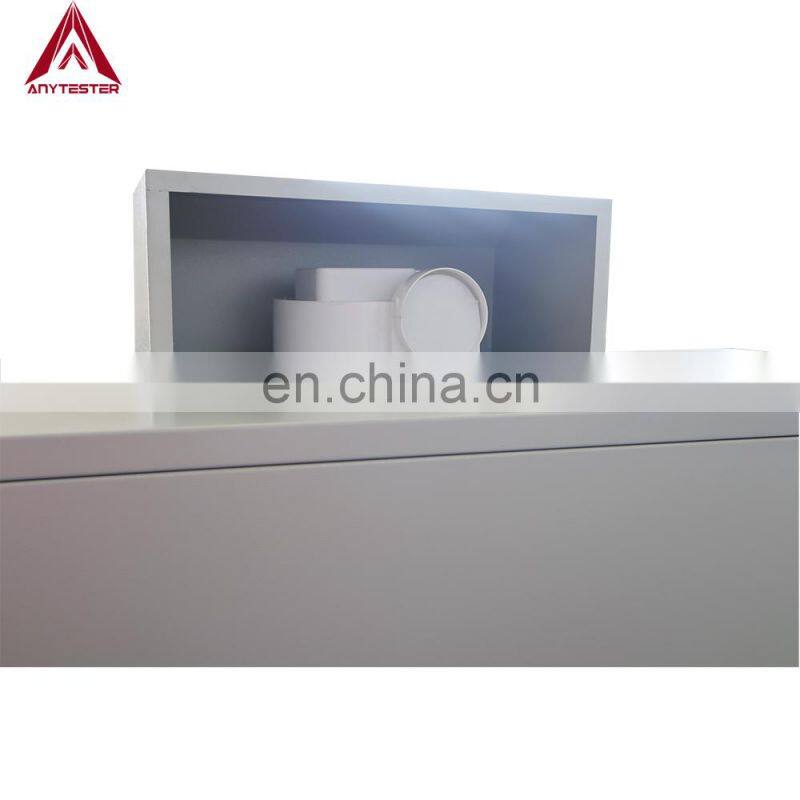

* High-power exhaust system, effectively prevent smoke corrosion;
* One-touch operation design, single person to complete the job independently;
* High-power exhaust system, effectively prevent smoke corrosion;
* Shell with 2mm cold plate outdoor powder paint, both inside and outside the color;
* Silent, up and down design of tempered glass sliding window
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Certifications
Packing & Delivery
Packaging | ||
Size(cm) | 73 (L) * 72 (W) * 168.5 (D) | |
Weight | 260 Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 30~40 days after receiving payment for one container | ||||
