Product Description

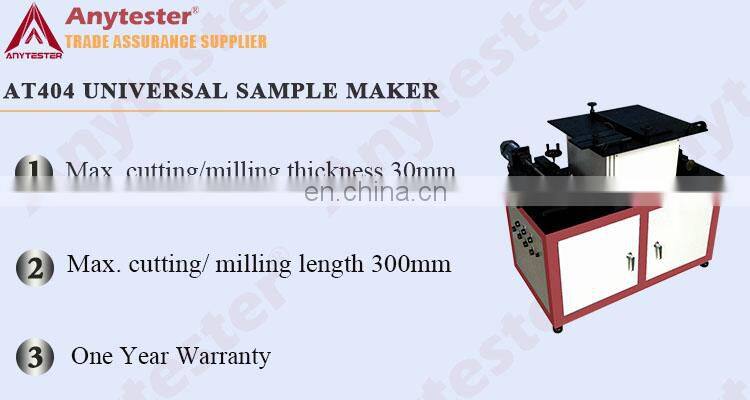

AT404 Universal Sample Maker is used for specimen preparation for impact, strength, compression, HDT and vicat testing of plastics and related materials. Equipped with cycling water-cooling system to reduce the temperature during the processing
Details & Features
Model | AT404 |
Max. cutting/milling thickness | 30mm |
Max. cutting/ milling length | 300mm |
Cutter size | φ230×φ32×2.6mm |
Milling die size | φ47×φ12×30mm |
Cutting/milling speed | 0-430mm/min |
Notching feed speed | 0-325mm/min |
Max. Notching length | 90mm, approx. 20 standard sample |
Notching die length | 50mm |
Cutting motor | 780W, 2800r/min |
Milling motor | 370W, 2800r/min |
Notching motor | 50W, 1300r/min |
Water cycling pump | 40W, 12L/min |
Machine size | 1050*600*960mm |
Power supply | 3phas 380V, 50Hz |
Specification
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
