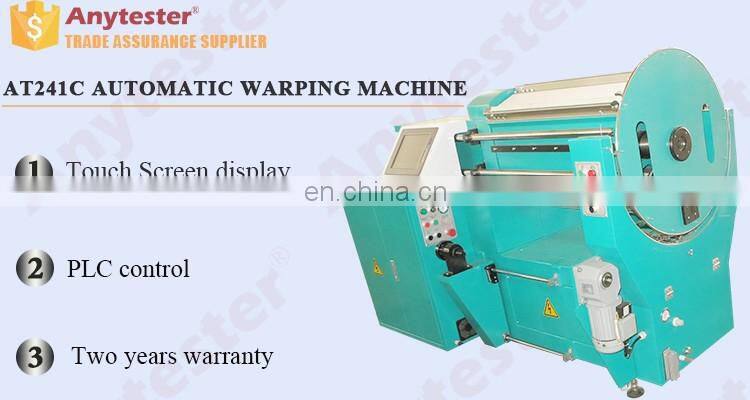

Automatic Textile Single Yarn Warping Machine With Touch Screen Display And PLC Control
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality ASTM Universal Testing Machine for TextileNegotiableMOQ: 1 -
Synthetic Fibre Production Melt Spinning Machine With Factory PriceNegotiableMOQ: 1
-
Single Yarn Sizing Machine up to 12 Spindles With CustomizedNegotiableMOQ: 1
-
ASTM D2256 Single Yarn Strength Tester for Single Yarns With LCD DisplayNegotiableMOQ: 1
-
Fabrics Automatic Air-jet Sample Loom for Laboratory UseNegotiableMOQ: 1
Product Description
Product Application.
AT241C Automatic Single Yarn Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241C Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
Specifications | ||||||||
Warping width | 200~700mm | |||||||
Warping speed | 0~3000m/min (frequency control) | |||||||
Warping length | 1.8~18m | |||||||
Applicable yarn density | 5~500tex | |||||||
Number of bobbins | 8pcs (automatically-changeable) | |||||||
Yarn arrangement | Servo motor control with accuracy of 0.01mm reachable | |||||||
Applicable warp beam diameter | ¢60mm | |||||||
Applicable warp beam length | 300~700mm | |||||||
Air pressure required | 0.4~0.8Mpa | |||||||
Air consumption | Max. 200L/h | |||||||
Power supply | AC380V 50Hz, three-phase | |||||||
Dimensions | 4650×1100×1400mm(L×W×H) | |||||||
Details & Features
★ PC control and software for arranging the laying of yarn;
★ Special design for sample weaving in lab or research and development institute;
★ With inching and stop button for the safety of operator;
★ Accuracy of warp displacement reaches 0.01mm;

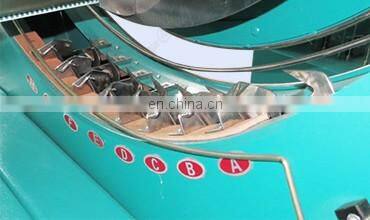

★ SMC rotating cylinder used for color selection, accurate and reliable to change yarn;
★ AC frequency converter to control yarn winding, online detect winding speed;

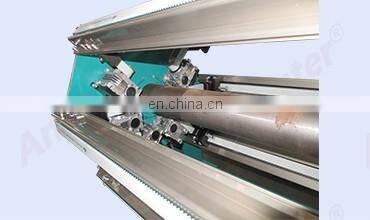

★ Frequency converter control beaming mechanism, ensure constant winding speed while beaming;
★ Pneumatic pressuring and damping structure to acquire even yarn tension;

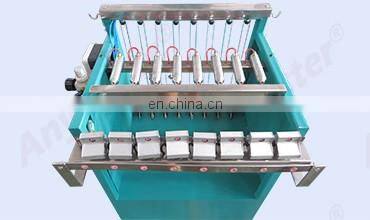

★ Bobbin creel adopts air pressure tension-relaxation-preventing structure; avoid tension relaxation while changing yarn;
★ Automatic warp break stop and yarn double winding stop;
★ Foot pedal for unwinding
Packing & Delivery
Packaging | ||
Size | 140(L) * 100(W) * 180 (D) | |
Weight | 600 Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
