Product Description
AT442 Series Universal Testing Machine (original model HY4210) is suitable for tensile, compression, bending, shearing, peeling, tearing and other mechanics performance tests of plastics, rubber, textile, geosynthetics, non-metallic and composite materials. It completely conforms to GB, ISO, ASTM, JIS, DIN and other test standards.
Standard
Item | Standard Description | |
Plastics | IS0 527-1993, ISO 604-2002, ISO 178-2004, ISO 1209-1-2007, ISO 1209-2-2007, ASTM D 638-2008 etc. | |
Rubbers | ISO 37, ISO 34, ISO 5893, ASTM D 2707 etc. | |
Textile | ASTM D 434, 2261, 3936, 4533, 4964, 5034, 5035, 5735 ISO 2062, 5082, 9073.4, 10321, 4606，13934-1, 13934-2, 13937-2, 13937-3, 13937-4, 13935-1, 13935-2 etc. | |
Note: For more standards, please contact us | ||
Specification
Model | AT442-10 | AT442-20 | AT442-50 | AT442-100 | |||
Max. load | 10kN | 20kN | 50kN | 100kN | |||
Load cell grade | 0.3 | ||||||
Measuring range | 0.2% ~ 100% F.S | ||||||
Load resolution | ＜±0.5% | ||||||
Test travel range | 0 ~ 900mm | 0 ~ 700mm | 0 ~ 500mm | ||||
Test width | 400mm ution NE | ||||||
Speed range | 0.001 - 500mm/min | ||||||
Displacement resolution | 1μm | ||||||
Deformation range | 0.2 ~ 100% F.S | ||||||
Large deformation measuring range | 5 ~ 800mm | ||||||
Large deformation resolution | 0.0125mm | ||||||
Power supply | 220 V±15% 50Hz, 1kw | ||||||
Output | Color printer | ||||||
Dimension (mm) | 700*470*1850 | 750*480*1920 | 1160*515 *2150 | 1070*600*2500 | |||
Weight | 240kg | 260kg | 280kg | 320kg | |||
Details & Features
★ The high stiffness frame incorporates a crosshead guidance system to prevent side loading of the test sample
★ Imported Servo motor and control system, low noisy and high accuracy
★ Imported high accuracy interchangeable load cells (SUNCELLS, USA) (0.5% of reading)，having advantages of automatic recognition of the measuring range , controlling parameters and its attribut
★ Extensometer, inner diameter measurement system and ring stiffness software is available as options
★ Incorporating world proven 32 bit technology for highly accurate load measurement and rapid date acquisition
★ Control system platform is based on TI’s DSP control chip, adopt USB connection port

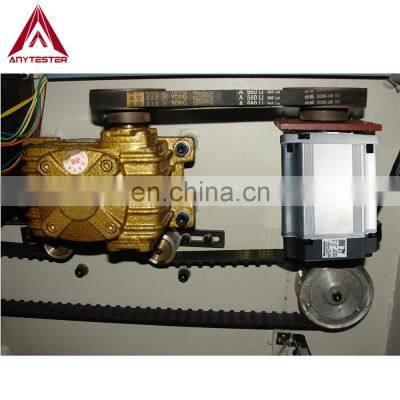

★ Import reducer and ball screw lead support system and A/D converter to provide accurately positioning
★ The design meets CE requirements for safety.
★ Three Closed-loop control system for stress, strain, displacement, high accuracy and more stable
★ An extensive built-in library of test methods covering ASTM, ISO, DIN, EN and other test standards
★ Test automation and batch testing, 600 test results available

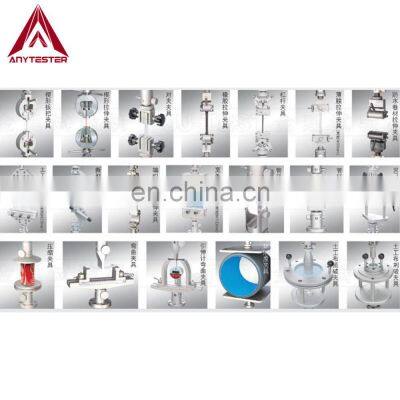

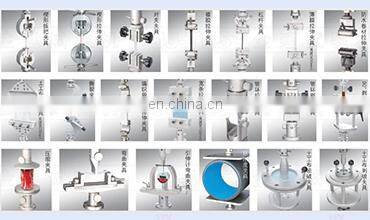

★ Varieties of grips are provided on customers’ requirements
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
