Home > Products > 2022 Hot Sales Machine > automatic 3/4 sides seal food granule vertical packing machine for oxygen absorber packaging machine

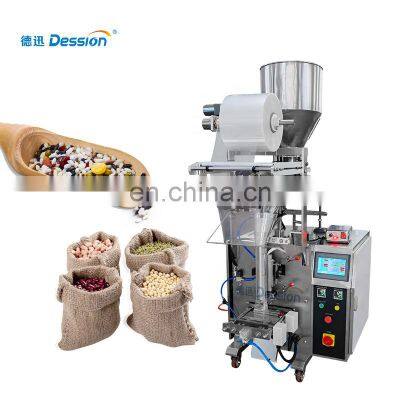

automatic 3/4 sides seal food granule vertical packing machine for oxygen absorber packaging machine
- 1000 per Month
- T/T Credit Card
- DESSION Automatic Macaroni/ Puffs/ Pasta Filling And Packing Machine With Low Price
- Play Dough Cups Filling And Packing Machine Play Dough Cup Sealing Machine
- Industrial Ice Cream Machine Filling Paper Cups Ice Cream Cover Sealing Machine
- Blister Cup Filling And Sealing Machine For Honey Jelly Cup Filling Sealing Machine
- Small Jelly Cup Filling Sealing Machine Full Automatic Gel Cup Filling Machine
- K-cup Espresso Filling Machine Paste Ketchup Cup Filling Machinery
Product Description
Granule packing machine is suitable for loose rounded granules in the food, chemical and other industrial. Such as: puffed granules, peanuts, melon seeds, rice, pepper, sugar, biscuits etc.
Item | Elevating Feeder |
Power | 0.75 kw |
Conveying Capability | 3~6 m³/h |
Voltage | 380V |
Gross Weight | 500kg |
Main Features
- 1. The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have passed the CE Standard.
2. Computer controller is the first patent of China; inverter and power switch are all imported with advanced technology.
3. Optional English or Chinese screen display, easy and simple operation.
4. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
5. Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.
6. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.
7. Equipped with rolled cup device enables volume of packing changing anytime, loss reducing and improve productivity.
8. Alarming function for specific output; automatic display of packaging speed.
9. Optional coding equipment and with 1 to 3 lines for batch number and expiration date.
10. Bag-making, filling, sealing, cutting, counting, thermal pressing of batch number can be achieved automatically and straightly.
11. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
12. Bag-making equipment can be changed according to specific requirement of customers and products.
Packing Machine Technical Data
Model | DS-320A | ||
Measuring Range | Cup measuring | ||
Packaging Speed | 30-80 bags/min | ||
Bag Width | 50-150mm | ||
Bag Length | 40-200mm | ||
Power | 220V, 50/60HZ, 1.2KVA | ||
Optional Device | Date Coder / Air-filling Device / Punching Device | ||
Machine Size | L)1100* W)755* H)1540mm |
How the packing machine working?
Easy Control Touch Screen
Language: Standard English and Chinese. Any language can be customized.
PLC: Imported PLC microcomputer with interface and frequency control enables bag parameter setting more convenient and easier.
Film Roller
The film can be replaced easily on the film roller.
Various films adaptable: OPP/CPP,OPP/CE,MST/PE/PET/PE.Bag Former
Different bag width needs different bag former.
Durable Sealing Cutting Blades
High speed of fine and clean cutting and sealing bags.
Positioned stop function avoides sticking blades and wasting materials.
According to customer needs,the bag types can be changed:back seal, hole poucher sutting device, qual package,stand up bag.
Bread Powder Packing Machine
93.2% Response Rate
Palm Oil Packing Machine
96.8% Response Rate
Carrot Vegetable Packing Machine
92.5% Response Rate
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* One year guranty for machine, two years guaranty for electrical part
* Engineers available for oversea service.
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
Payment
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
