Home > Products > Drying Machinery > 1200*10000mm peat sapropel rotary drum dryer machine

1200*10000mm peat sapropel rotary drum dryer machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Rotary dryer is a type of drying machine used to reduce the moisture of raw material,it is widely applied in agriculture, building materials, metallurgy, chemicals, coal, fertilizer, sawdust industrials. It can accept almost all kinds of materials and can quick drying the materials. It is easy to operate and has large capacity.

ADVANTAGE:

1. Mature dryer line for different materials (rich experience on this field from 1992 years, done many projects oversea).We made sawdust dryer line, cassava dryer line, chicken manure dryer line , cow manure dryer line, coal powder dryer line, sand dryer line, kaolin dryer line, Compound fertilizer dryer line dryer line, mineral powder dryer line, hemp and briquette dryer line and so on. 2. Cost Control (Have lots of site experience, from equipments, installation to personnel site working, we can make a most optimal case to you). 3. EPC-Turkey Project (We have enough capability to make EPC-Turkey project, which will be convenient for you). 4.Free customized proposal, drawings and technical support before ordering

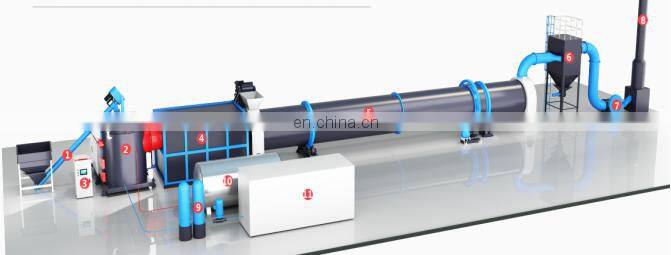

Main equipment list

No.	Item	Brand	Notes
1	Hopper	HC	Usually build by customer
2	Screw conveyor /Conveyor belt	HC	depends on raw material
3	Burner	HC	or LPG,Coal
4	Furnace	HC
5	Rotary dryer	HC
6	Dust collector	HC
7	Draft fan	HC

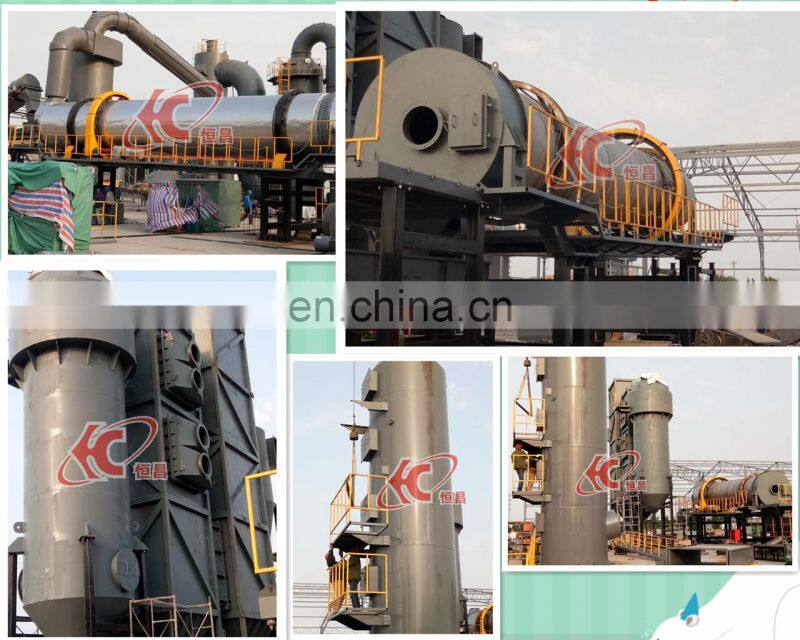

Case of drying production line

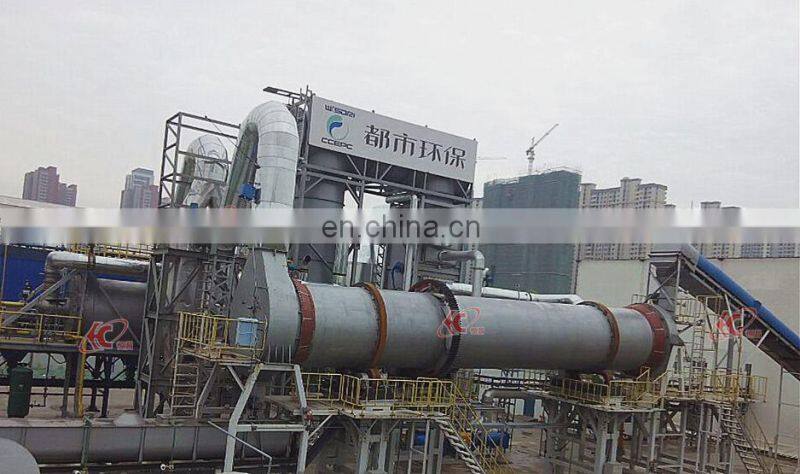

sludge/soil dryer line

Due to environmental pollution problems, soil pollution is getting more and more serious. Our company treats it through high temperature heating and drying to make land reuse

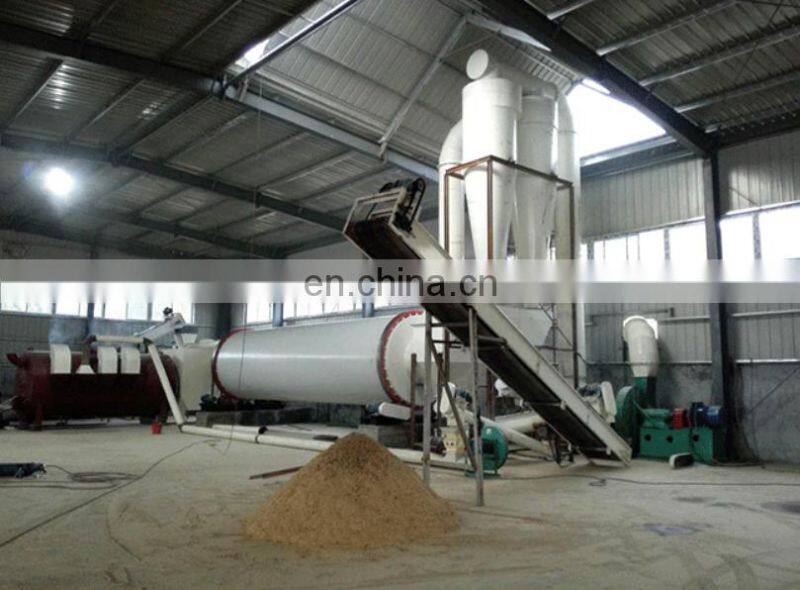

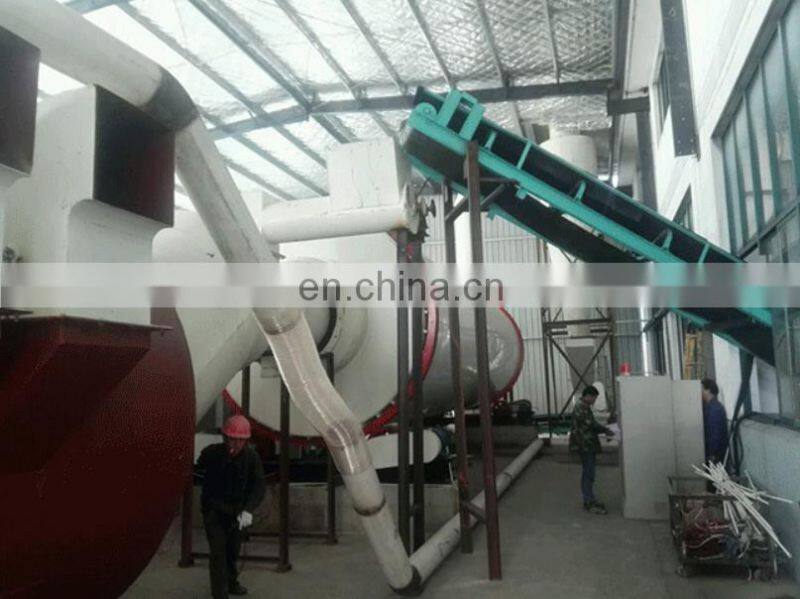

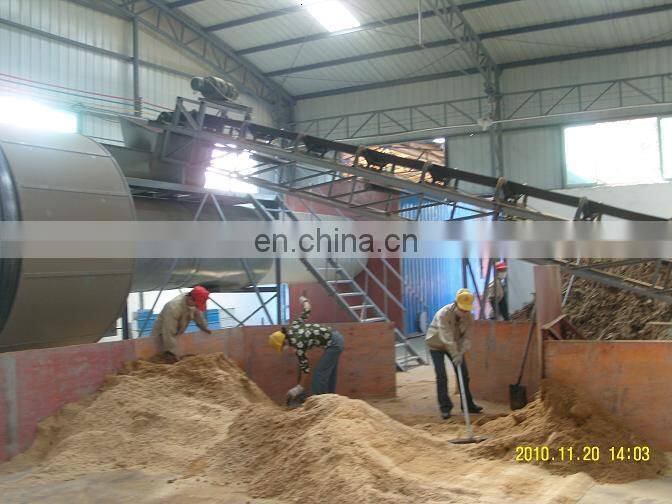

sawdust dryer line

The material is sent to hopper by belt conveyor or bucket elevator, and then the hopper feeder enters the feeding end through the feeding pipe and Dryer for heating.

Details Images

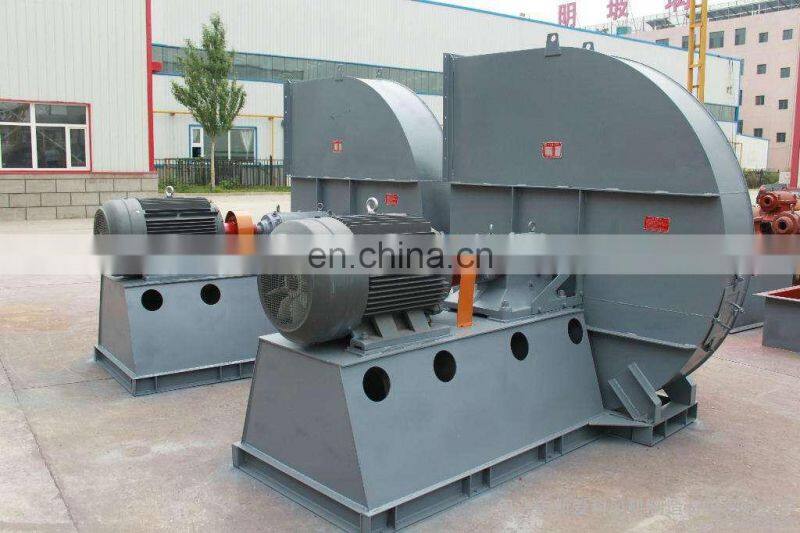

Draft fan

High strength wear-resistant impeller anti-leaking bearing box. With single suction, backward of monoblock type blades impeller have good aerodynamic performance and reliability of smooth operation.

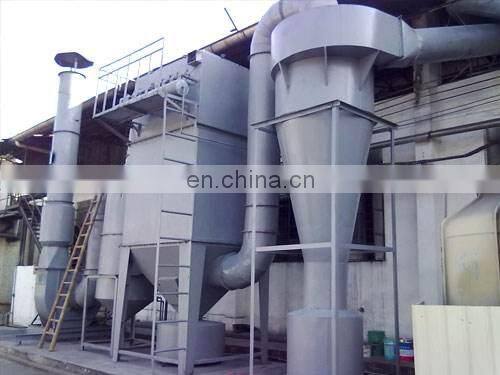

Cyclone dust

mostly used to remove particles above 5μm, and the parallel multi-tube cyclone deduster device also has the dust removal efficiency of 80-85% for particles at 3μm.

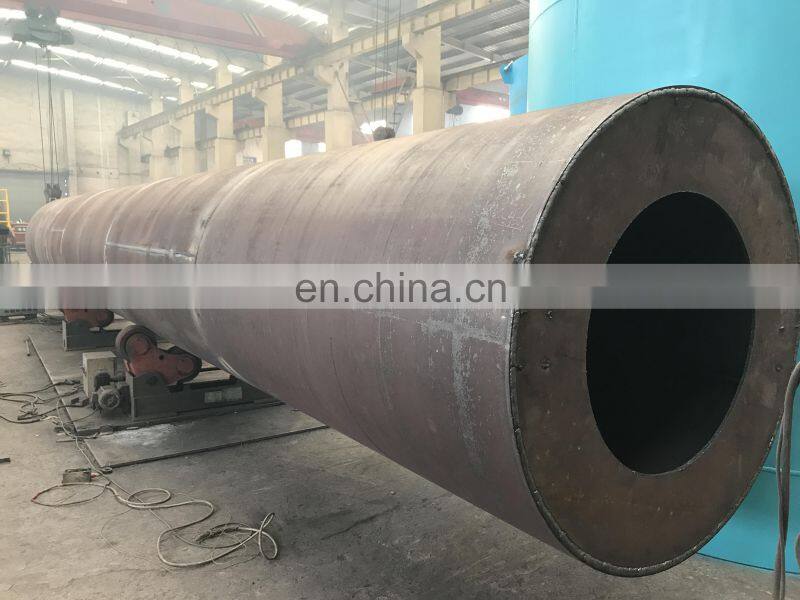

dryer body

The dryer cylinder section for toroidal welding, longitudinal along the entire circumference of not more than two weld article number, and shell welds shall be full, the minimum is not lower than the parent metal surface, the top should not be higher than 3mm, feed plate weld should be smooth.Weld edge bite depth should not be greater than 0.5 mm, continuous length should not be greater than 100 mm, should not exceed the total length of each weld bite edge which 10% of the weld length.

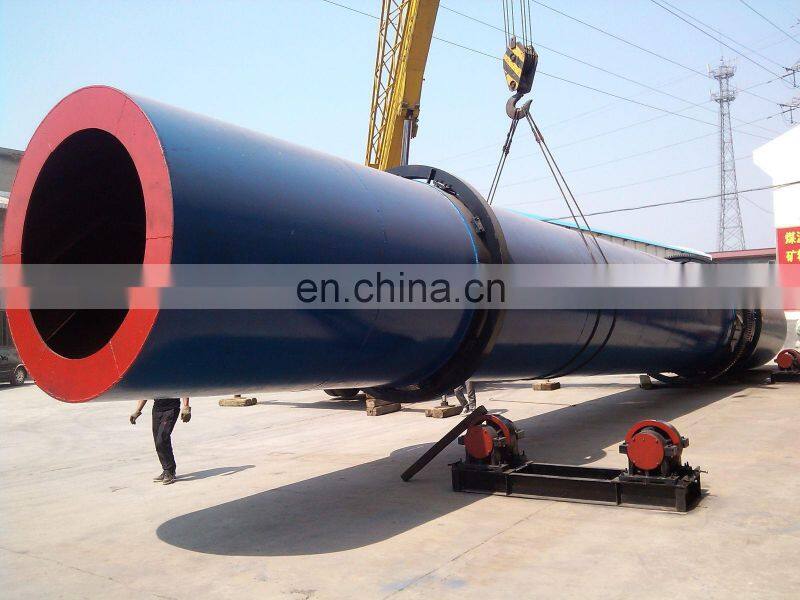

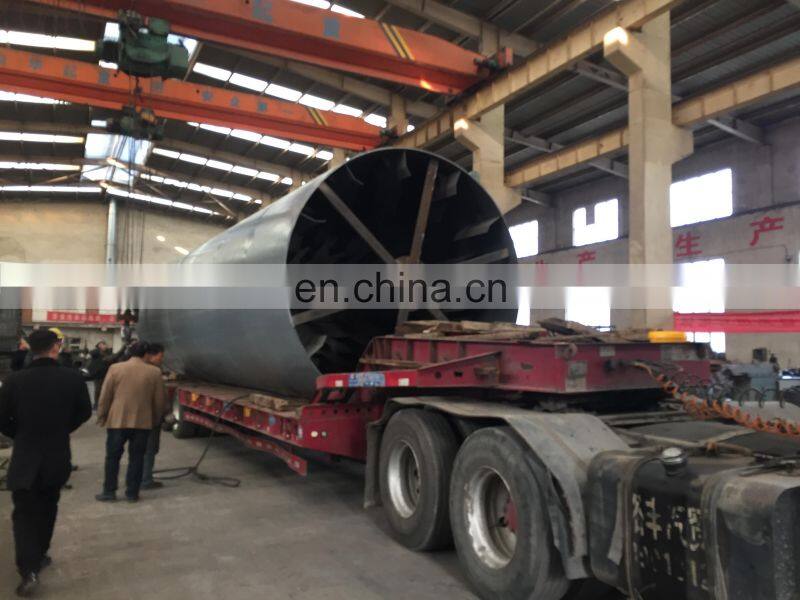

Dryer in our factory

Feature

1.The cylinder protect itself, thermal efficiency can up to 95%. 2.The whole length of the dryer reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately 3.Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance. 4.High thermal efficiency , temperature of outer cylinder is 60or below(temperature of outer mono-cylinder is high to 150°C) 5.Low temperature of outlet, long-service of dust removal machine. It also can be directly connected to air box pulse bag filter. 6.Final moisture index can be adjusted according to requirements of customers.

Product Paramenters

Model (mm)	Speed (r/min)	Slope (%)	Inlet Temperature (°C)	Power (kw)	Capacity (t/h)	Weight (t)
800×8000	3-8	3-5	≤700	4	0.8-2	3.5
1000×10000	3-8	3-5	≤700	5.5	1-3	5.6
1200×10000	3-8	3-5	≤700	7.5	2-3.5	13.5
1200×12000	3-8	3-5	≤700	11	2.5-4	14.2
1500×12000	2-6	3-5	≤800	11	4-6	18.5
1500×15000	2-6	3-5	≤800	18.5	5-8	21
1800×18000	2-6	3-5	≤800	18.5	6-12	31
2000×18000	1.5-6	3-5	≤800	22	8-15	35
2200×12000	1.5-6	3-5	≤800	22	13-15	31.6
2200×14000	1.5-6	3-5	≤800	22	14-16	33.5
2200×16000	1.5-6	3-5	≤800	30	14-18	36

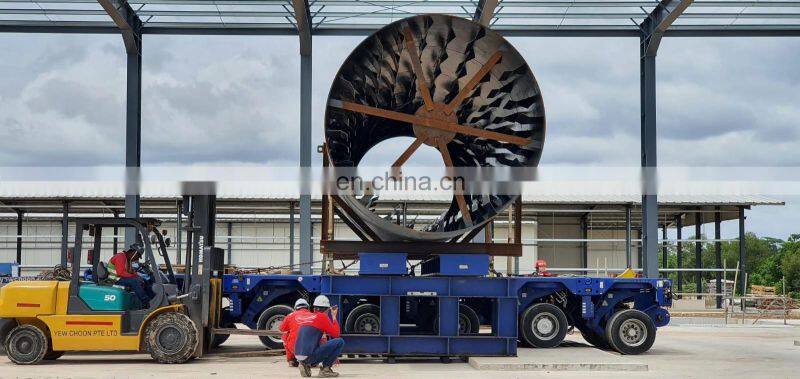

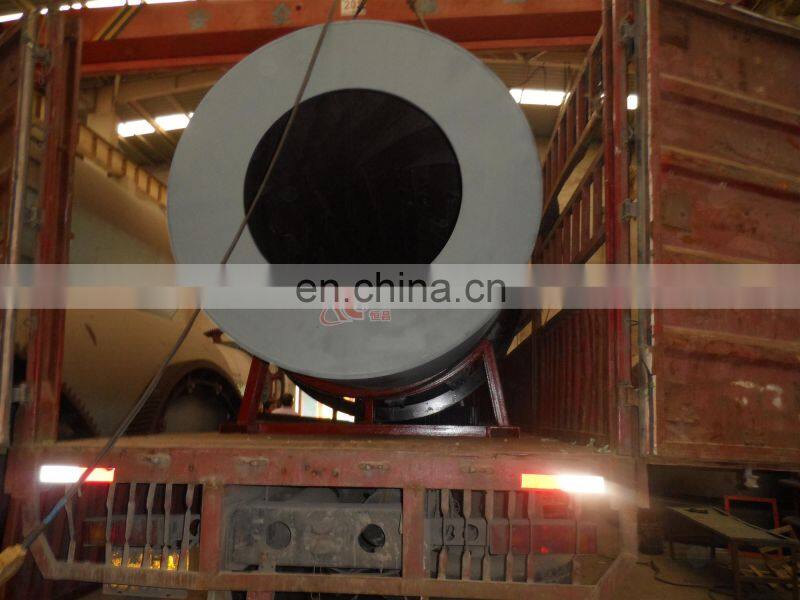

Delivery

Company Profile

1.what's your raw material?

2.what's the input and output moisture of your raw material?

3.what's the capacity you need?tph?

4.what's the heat source will you choose?
