Widely Used Ball Mill Machine Gold Ore Wet Ball Mill Milling Grinder Machine Limestone Stone Grinding

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Hot Sale 10tph gold ore wet ball mill milling ball machine small scale mining limestone stone grinding widely used ball mill

Product Description

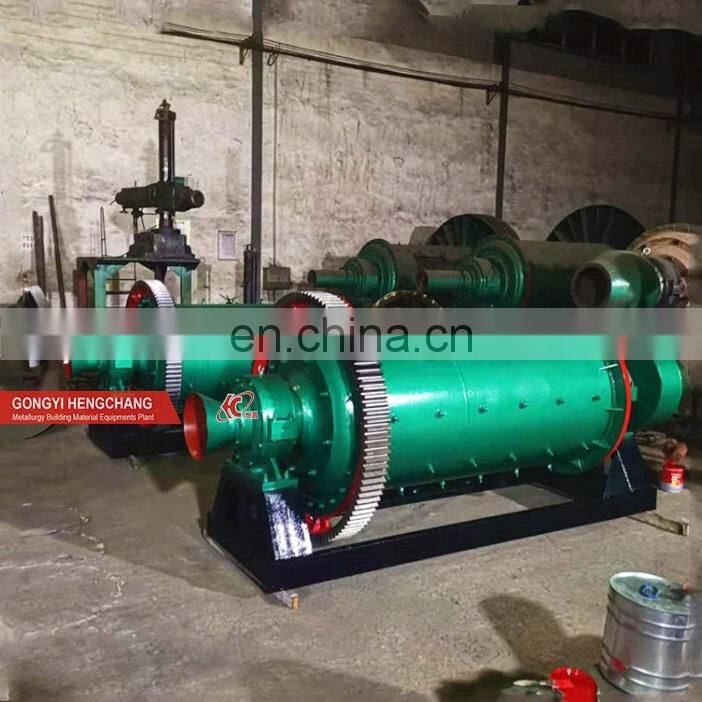

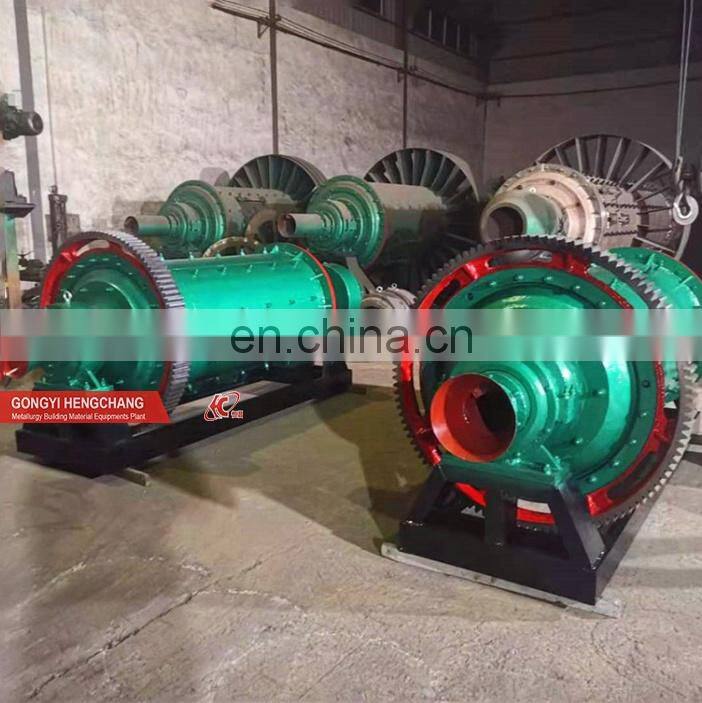

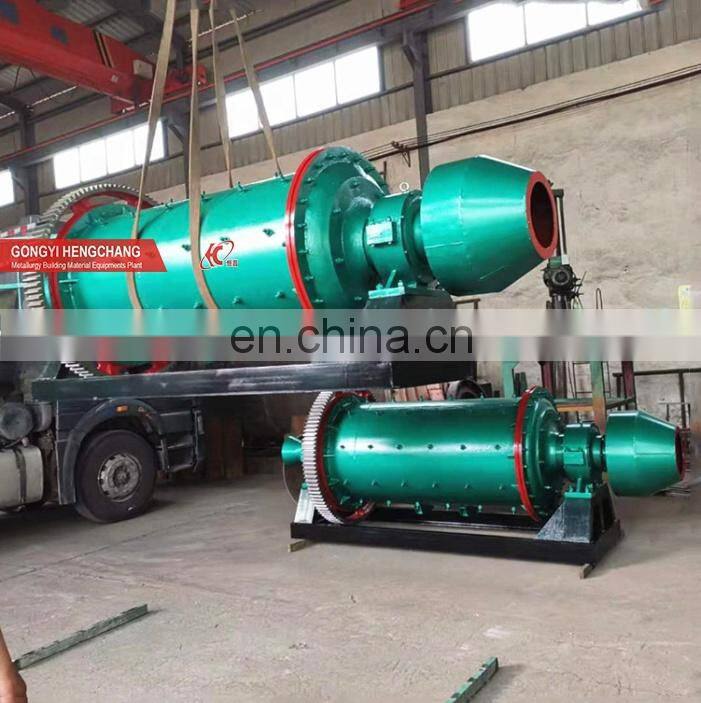

Ball Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements.
Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such ascement, silicate, new building material, refractory material, fertilizer, ferrous metal, non ferrous metal and glass ceramics.
Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.

Widely Used High Energy 1Tton Per Hour Ball Mill

Ball Mill For Grinding Silica Sand

Gold Ore Rock Wet Ball Mill btma Grinding Ball Machine

[ Capacity ]: 0.62–90 t/h
[ Applicable Material ]:
Ball mill is key equipment for grinding materials after crushing process. It is used to grind kinds of materials into fine powder 20-75micrometer. Based on discharging type, It could be grate type,overflow type etc.

Energy saving mining ball mill is a key equipment in beneficiation plant.It is widely used in ore dressing production line such as Gold ore, Cooper ore, Magnetite ore, Antimony, Calcite, Kaolin, Mica, Clay, Bentonite etc Ferrou metal or Nonferrous metal materials.

Features about our products

1.Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only.

2.Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only.

3.Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.

4.The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.

Working principle

Ball mill grinding machine is a kind of horizontal drum-type grinding mill with external gear and double bins. Materials goes evenly through quill shaft in feeding device into the first bin, which has ladder lining or ripple lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall.

Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. The ground materials are discharged through the discharging board thus the grinding process is finished.

Specifications

Model	Cylinder Rotating Speed (r/min)	Ball weight (t)	Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Power (kw)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22
1200×2400	35	4.6	≤25	0.075-0.6	1.6-5.8	37
1200×4500	35	5.5	≤25	0.074-0.4	1.6-5.8	55
1500×3000	29	9	≤25	0.074-0.4	2-7	75
1500×5700	29	17	≤25	0.074-0.4	3.5-6	110-130
1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155
1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210
1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245
2100×7000	23.7	26	≤25	0.074-0.4	8-48	280
2200×4500	21.5	27	≤25	0.074-0.4	9-45	280
2200×6500	21.7	35	≤25	0.074-0.4	14-26	380
2200×7000	21.7	35	≤25	0.074-0.4	15-28	380
2400×3000	21	23	≤25	0.074-0.4	30-50	245
2400×4500	21	30	≤25	0.074-0.4	40-60	320
2700×3600	20.7	40	≤25	0.074-0.4	45-80	430
2700×4500	20.7	48	≤25	0.074-0.4	50-90	430
2700×13000	20.7	60	≤25	0.074-0.4	50-90	630
3200×4500	18	65	≤25	0.074-0.4	--	800

Ball Mill Spare Parts

For ball mill, the main spare parts is steel balls, ball mill liners and grate plates. If the customer need the ball liners and grate plates, they can send us the drawing of liners and grate plates, we can cast for them in our casting factory. If you do not have the liner data,we can send our engineer to your site and scale the liners, then we can make the drawing and cast the liner in our foundry factory for you.

Company Profile

Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and10,000 tons of crusher parts.

Customer Visit & Our Service

(A) Pre-sale services:

Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their
investments.

1.Select equipment model;

2.Design and manufacture products according to clients' special requirement;

3.Train technical personnel for clients;

4.Services during the sale;

(B)Provide considerate services to minimize clients' worries:

1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;

3.Train the first-line operators;

4.Examine the equipment;

5.Take initiative to eliminate
the troubles rapidly;

6.Provide perfect service;

7.Provide technical exchanges...

(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..

Packing and delivery

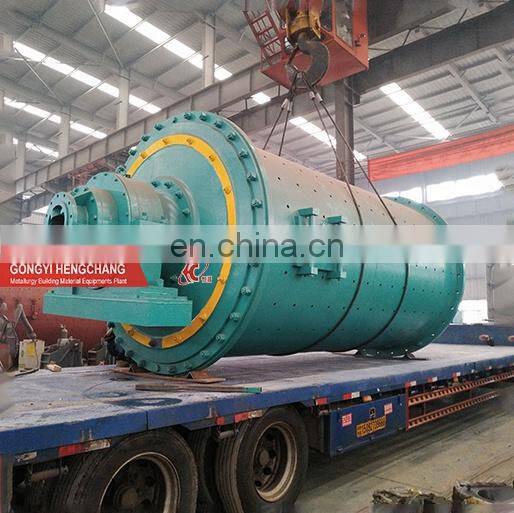

Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.

Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.

FAQ

Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.

Remarks: The price will depend on different models.

Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
