Vanadium / Titanium Ore concentrate large rotary dryer

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Rotary dryer

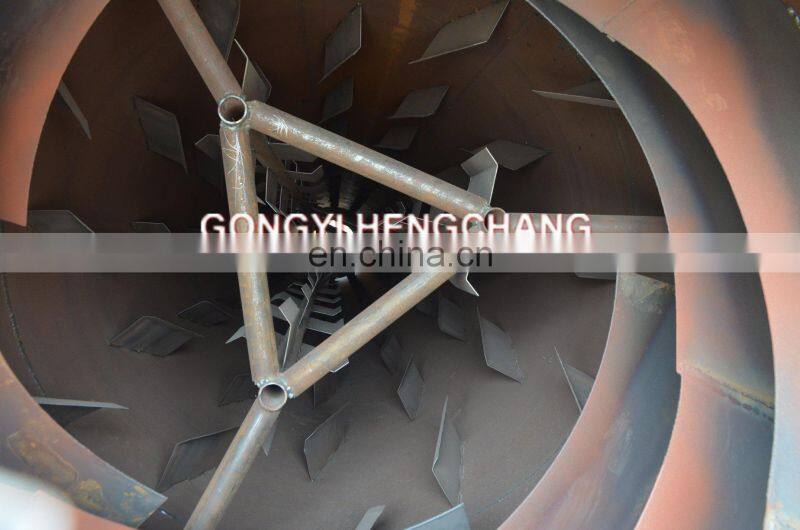

Rotary drum dryer, also known as drum dryers or tumble dryers, are among the most common and widely used dryers in mining equipment. Suitable for the drying of magnetic and heavy, floating concentrates of metallic and non-metallic minerals, clay in the cement industry, and coal slime in the coal mining industry. It is characterized by high productivity and easy operation. The tumble dryer cylinder is a horizontal rotary cylinder. The inside of the rotary cylinder is staggered with various staggered angles from the front to the back. The rotary kiln body is equipped with different types of refractory bricks according to the requirements, and is protected from falling at the feed end. Material is provided with a door circle and spiral copy board. It has the advantages of reasonable structure, excellent production, high output, low energy consumption and convenient operation.

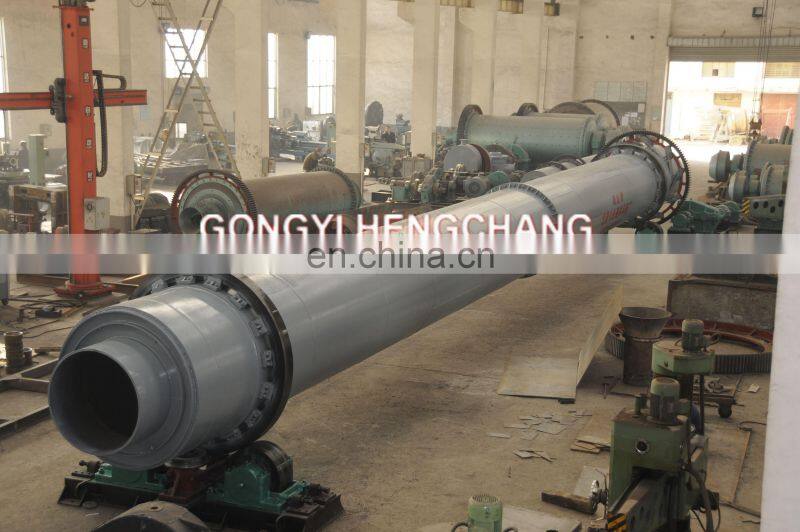

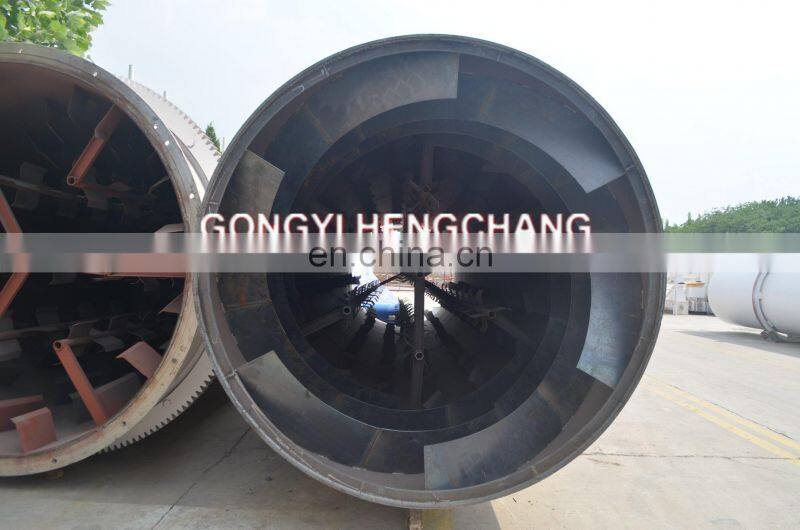

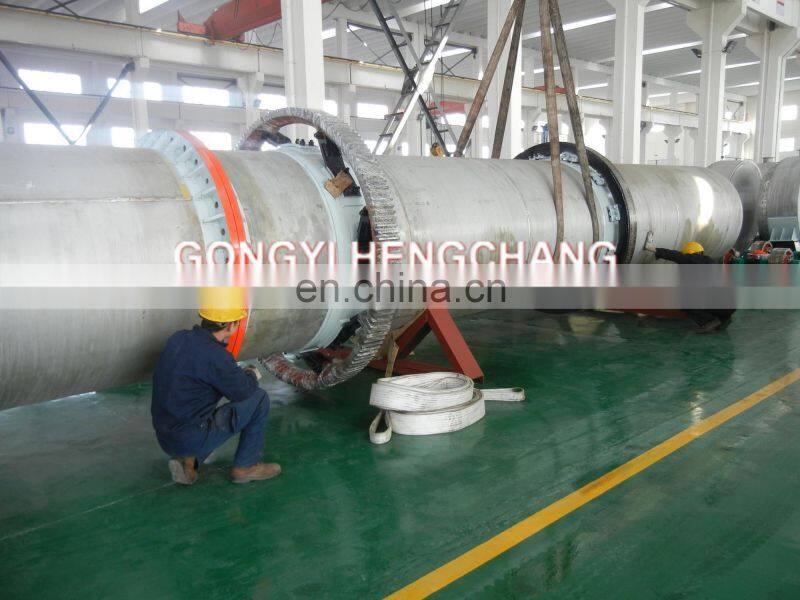

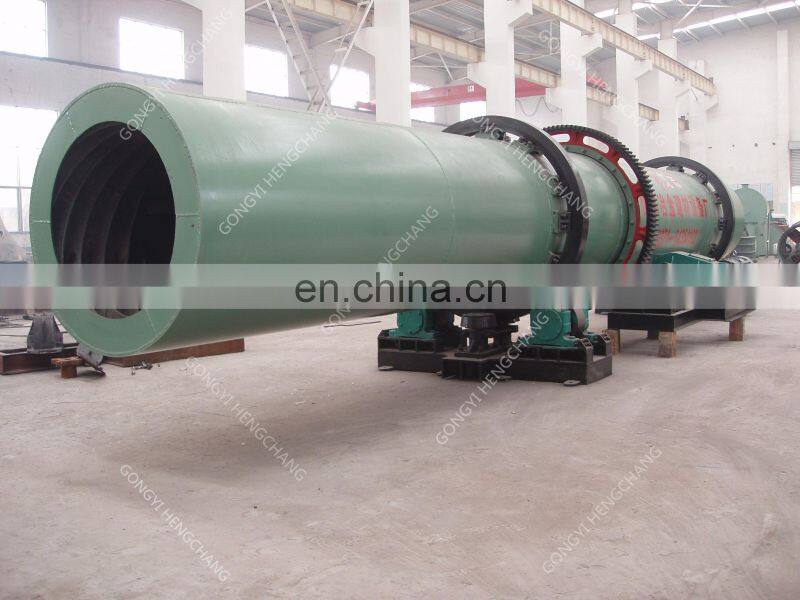

Details Images

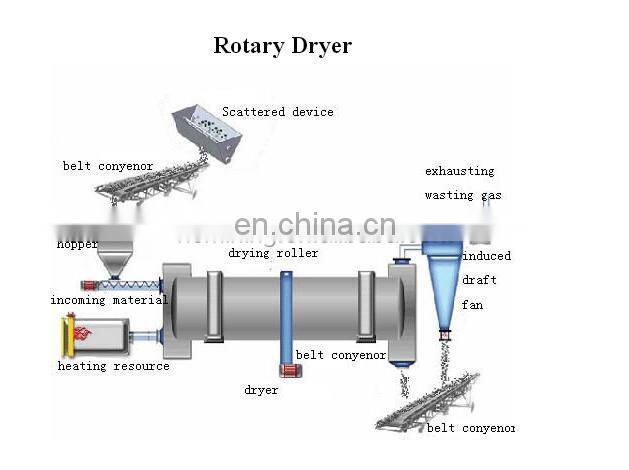

Working principle

The wet materials are conveyed to the hopper through the belt conveyor or bucket elevator, and then enter into the feed end through the hopper charger and the feeding pipe in sequence. The inclination of the feeding pipe must be greater than the natural inclination of materials in order to make the materials flow into the dryer smoothly. The dryer cylinder with slight inclination with the horizontal line. The materials enter from the higher end, and the heat carrier enters from the lower ender; the two contact each other from opposite directions, but there are also circumstances that the heat carrier flows into the dryer body together with the material.

Product Characteristics

1. The transmission gear adopts the pin and replaceable gear, which replaces the traditional cast steel gear, saves cost and investment, and greatly reduces the maintenance cost and time. 2. The centralized control system can be used to realize the centralized monitoring and management of large-scale enterprise microcomputers. 3, greater production capacity, continuous operation; 4, the structure is simple, easy to operate; 5, less failure, low maintenance costs; 6, a wide range of applications, you can use it to dry granular materials, for those with large adhesion material is also very favorable; 7. The operation flexibility is large, and the output of the products allowed in the production has a large fluctuation range, which will not affect the quality of the products; 8, easy to clean.

Product Paramenters

Model (mm)	Speed(r/min)	Slope(%)	Inlet Air Temperature(°C)	Power(kw)	Capacity(t/h)	Weight(t)
Φ800×8000	3-8	3-5	≤700	4	0.8-2	3.5
Φ1000×10000	3-8	3-5	≤700	5.5	1-3	5.6
Φ1200×10000	3-8	3-5	≤700	7.5	2-3.5	13.5
Φ1200×12000	3-8	3-5	≤700	11	2.5-4	14.2
Φ1500×12000	2-6	3-5	≤800	11	4-6	18.5
Φ1500×15000	2-6	3-5	≤800	18.5	5-8	21
Φ1800×18000	2-6	3-5	≤800	18.5	6-12	31
Φ2000×18000	1.5-6	3-5	≤800	22	8-15	35
Φ2200×12000	1.5-6	3-5	≤800	22	13-15	31.6
Φ2200×14000	1.5-6	3-5	≤800	22	14-16	33.5
Φ2200×16000	1.5-6	3-5	≤800	30	14-18	36
Φ2400×18000	1.5-6	3-5	≤800	45	16-22	42.8
Φ2400×20000	1.5-6	3-5	≤800	45	18-25	52
Φ3000×20000	1.5-6	3-5	≤800	55	25-30	77.8
Φ3000×25000	1.5-6	3-5	≤800	55	28-34	87.5
