Low Power Consumption XJK Series Minerals Ore Separation Flotation Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Mining Extraction Equipment Cyanide Gold Cip Cil Plant
-
Mining Equipment Plant Coltan Titanium Ore Zinc Slag Separator Price
-
Gold Mining Dredger With Centrifugal Concentrator Used in River for Sale
-
Good Quality Small Copper Gold Refining Machine Inflatable Mechanical Mining Sf Type Froth Flotation Mineral Machine for Sale
-
2022 Hot Selling Gold Column Zinc Pyrite Coal Mining Mineral Iron Copper Ore Froth Flotation Cell Tank Device Machine Price
-
Mineral Extraction Equipment River Gold Centrifugal Concentrator for Placer Mining
Product Description
Product Description
Application of XJK Series minerals Ore Separation Flotation Machine
Flotation cell is widely used for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and
materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.

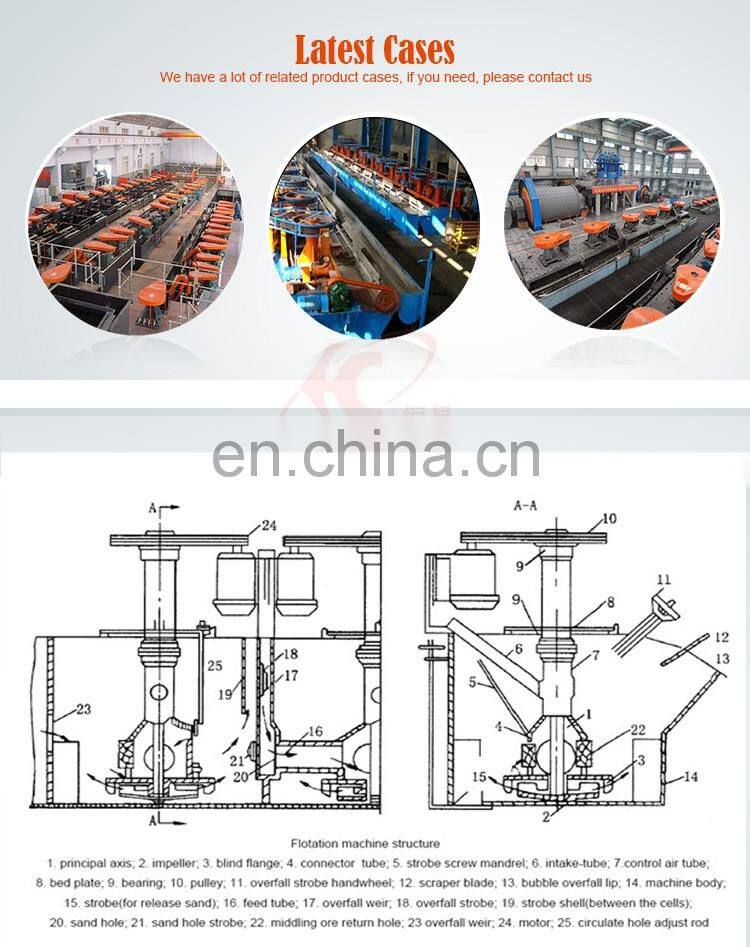

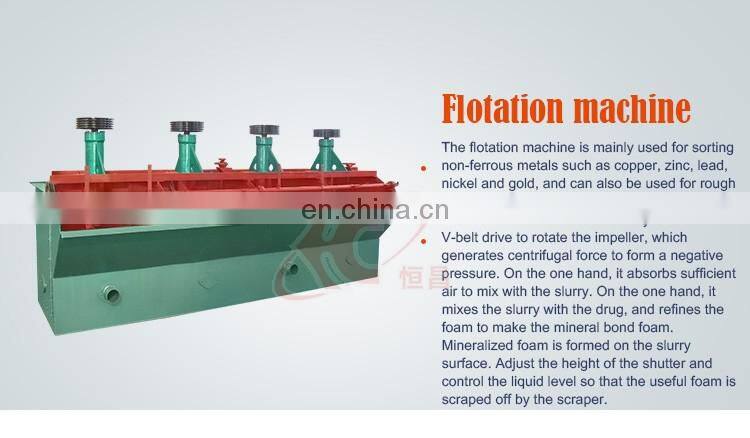

Working principle XJK Series minerals Ore Separation Flotation Machine
When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.

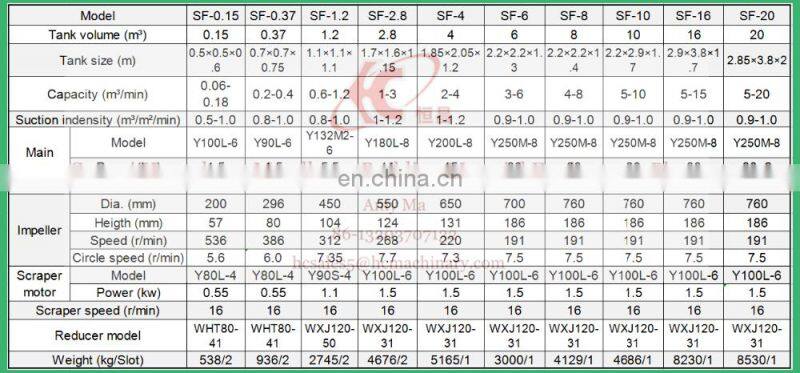

Technical Parameters of XJK Series minerals Ore Separation Flotation Machine
Main Features of XJK Series minerals Ore Separation Flotation Machine
1. large air-absorption capacity
2. less reagents consumption3. easy to maintenance and can be designed according to the users.
4. horizpntal arrangement
5. no foam pump required
6. long service life of the impeller cover plate
7. upper and lower double circulation of the ore pulp in a fixed way

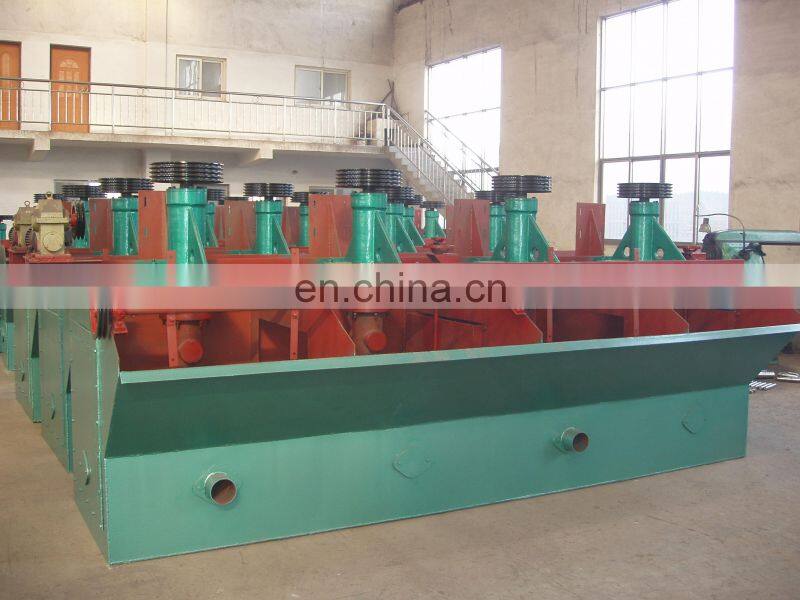

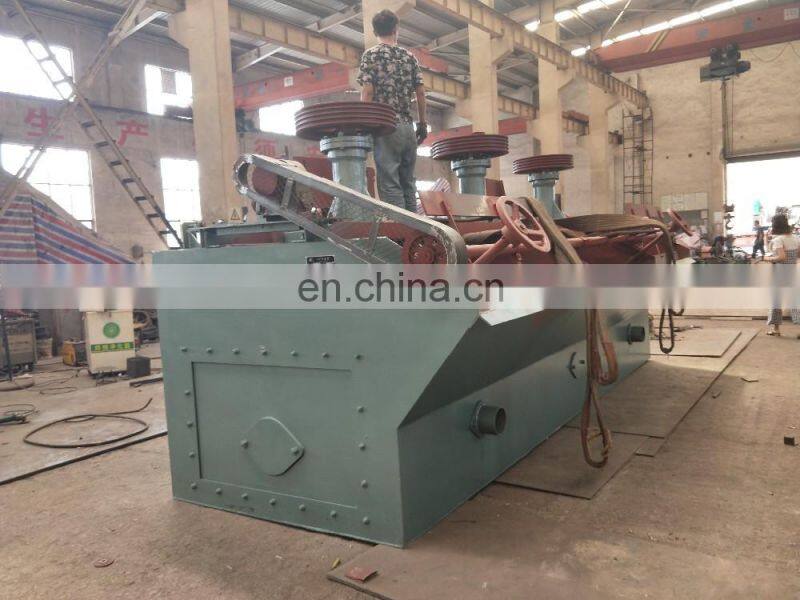

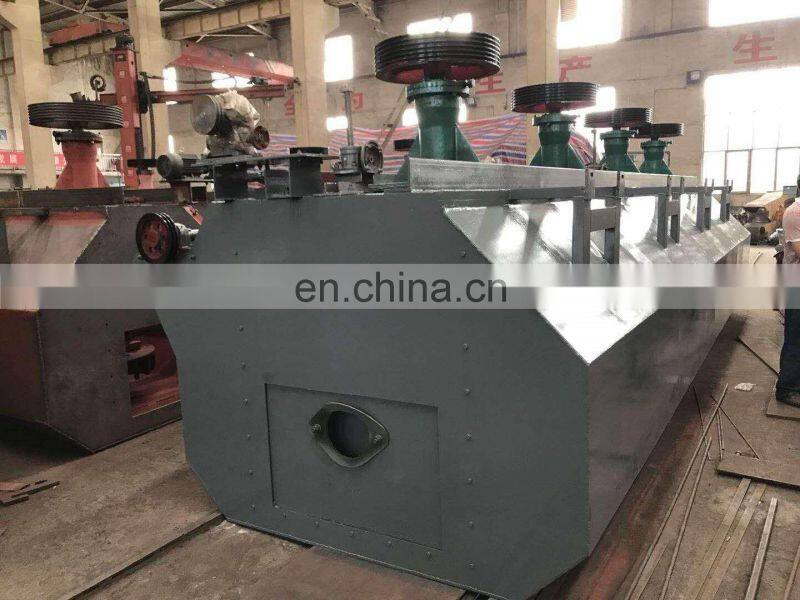

Detailed images of XJK Series minerals Ore Separation Flotation Machine

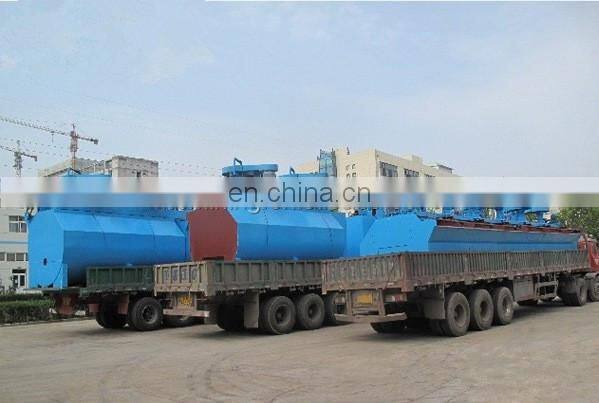

Packing & Delivery
Packaging | ||
Size | as the different model | |
Weight | as the different model | |
Packaging Details | If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our company
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.
Certifications
Our Service
Related Products
Products Name with link
XJK flotation machine
Products Name with link
Centrifugal concentrator
Products Name with link

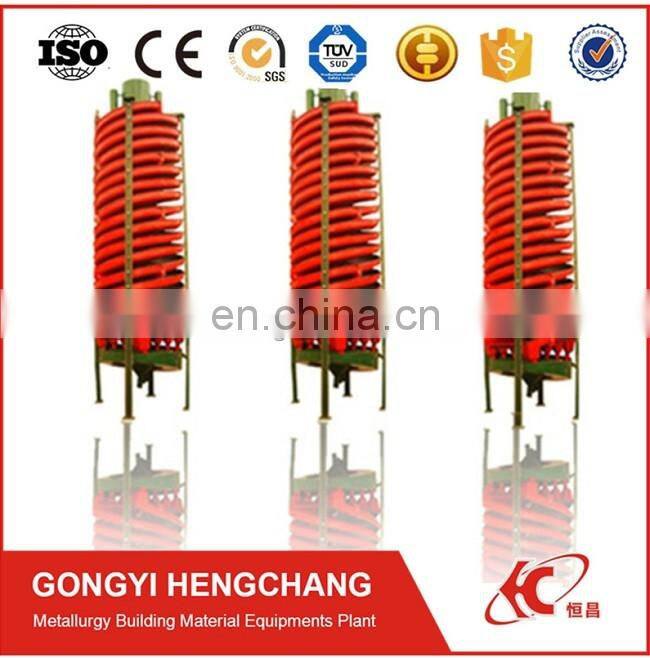

Spiral chute
Contact Us
- Gongyi Hengchang Metallurgical Building Material Equipments Plant
