Competitive Price Gravity Spiral Chutes Spiral Separator For Ore Process

General Introduction of Spiral Chute

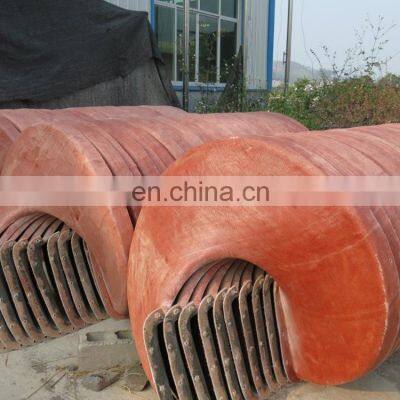

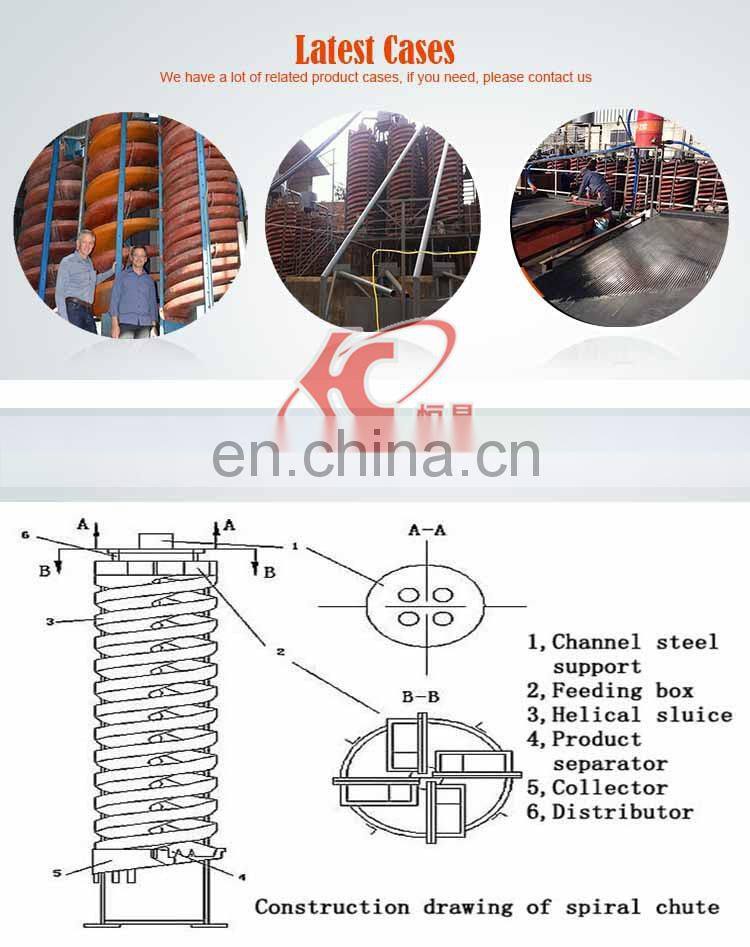

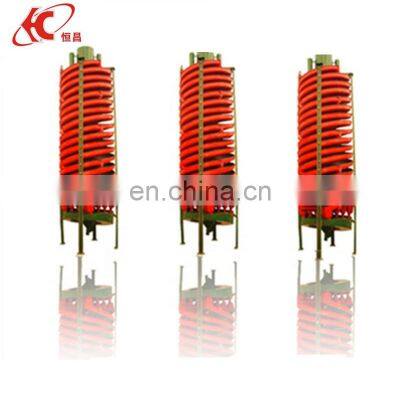

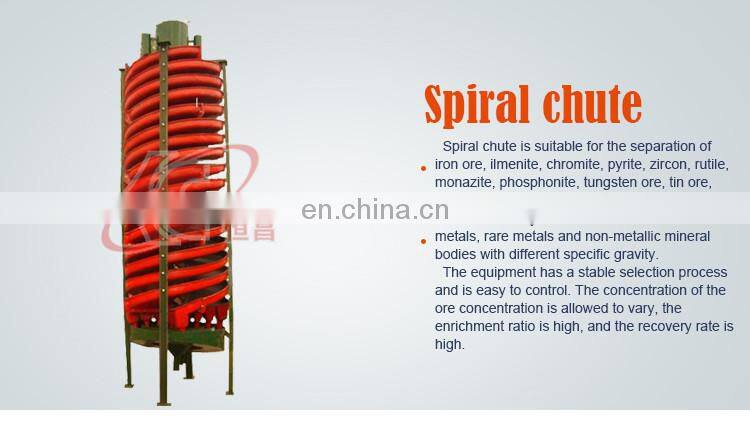

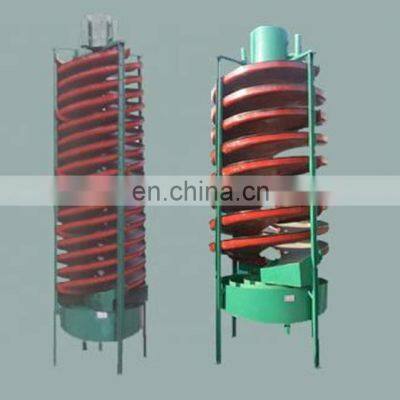

Spiral chute uses gravity to separate particles of different densities. It is used globally in the mineral processing industry, consists of an open trough that twists downward in helix configuration about a central axis.

It is used to separate the iron, tin, wolfrmite, tantalum, niobium, gold ore of the size between 0.3 and 0.02mm, and the other metals and nonmetal minerals with different gravity property .

Working principle

When working, particles are fed to the top of the spiral chute and are separated radially on the basis of density and size as the slurry gravitates downward.

In order to have a good separation, there should be a difference in specific gravity of at least 1.0.
Depending upon the material characteristics, a maximum efficiency will usually be reached somewhere in this range.

All that is required are some slurry pumps, the slurry to be separated and the banks of spirals with a feed distributor
