Product Description

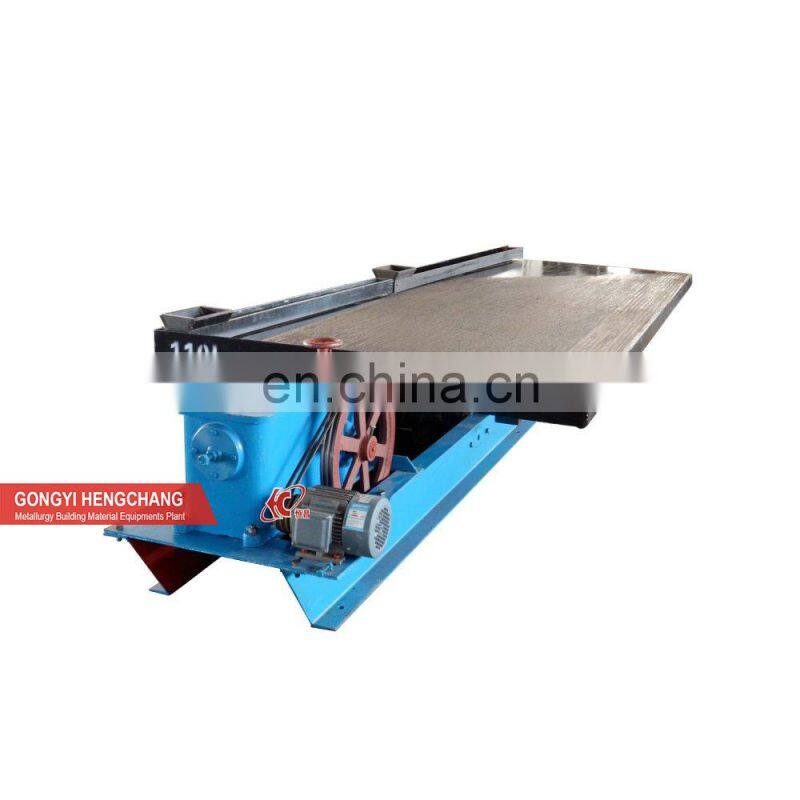

Sale Shaking Table Concentrator For Magnetite Ore Beneficiation Plant
Product Description
Gold refining Shaking Table as one of gravity mining equipment, 6S shaking table is widely applied on separating Gold, Manganese, Chrome, Lead, Zinc, Mercury, Auluminum and rare metals, the noble metal ore, also applied on sorting coal, ect.6S shaking table can be usedin different stages in mining, like rough concentration, retreat and scanvenging.
Recovery material size ranges are: coarse sand (0.5 mm to 2 mm), fine sand (0.074 mm to 0.5 mm) and slime (-0.074 mm). Effective mineral recovery size range is 0.22 mm to 2 mm.

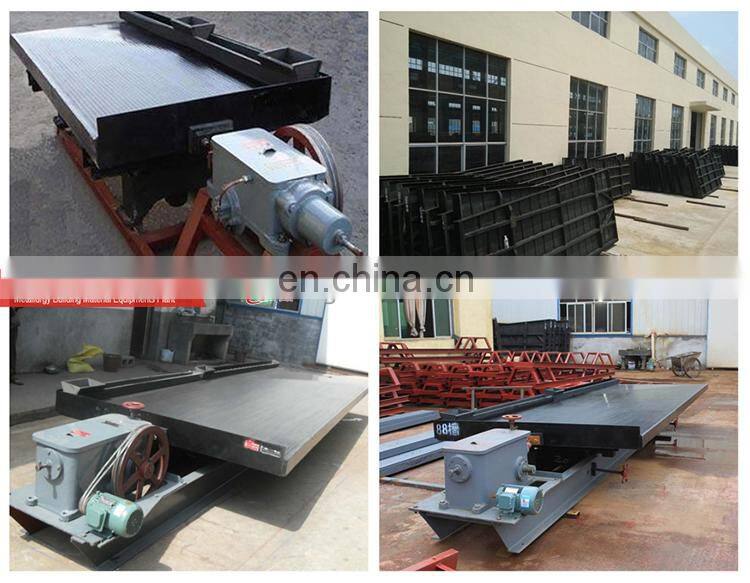

Products Display

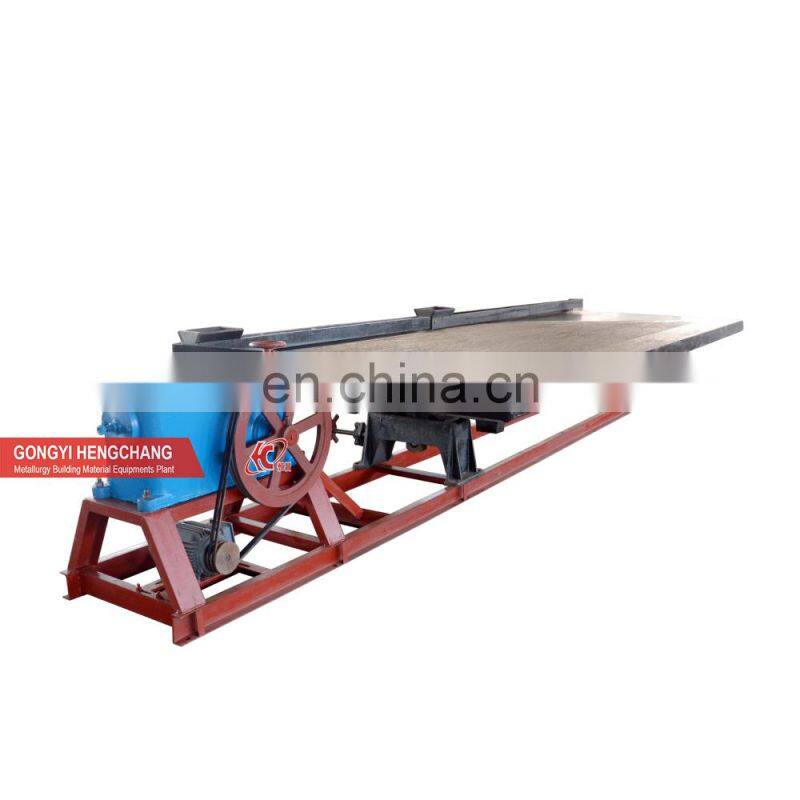

More stable, more convenient, no need pour the concrete to fix the anchor bolts on the ground. Fast install and operation, easy to
dismount and move, especially applycable to the uneven ground, false and virtual ground operation.
dismount and move, especially applycable to the uneven ground, false and virtual ground operation.
Easy to install, just need pour concrete to fix the anchor bolts on the ground, same effect compare with the normal shaking table,
the price is moderate. Most clients like choose it.
the price is moderate. Most clients like choose it.

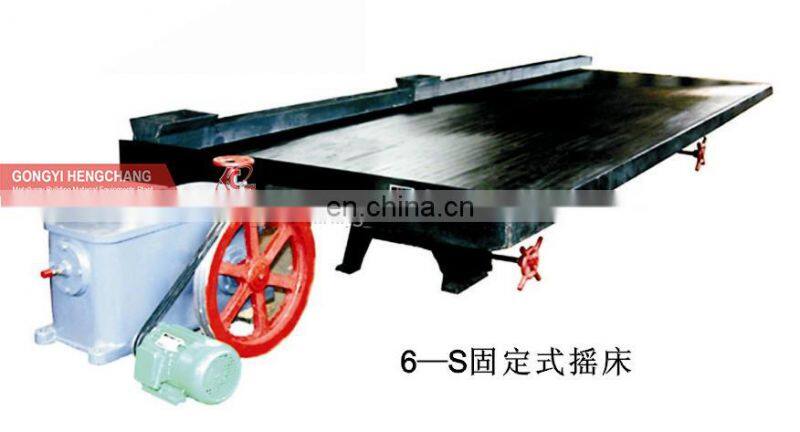

6S 4450 Fixed Type Shaking Table
Without mounting bracket, need to use concrete pouring cement casting pile to put shaking table, not convenient to move, but
relatively save cost.
Model Performance | LS4500 | LY3000 | LY2100 | LY1100 | ||
Screen Size(mm) | 4500× 1850× 1560 | 3000× 1620× 1100 | 2100× 1050× 850 | 1100× 500× 430 | ||
Horizontal Slope | Degree | 0-5 | 0-10 | 0-8 | 0-10 | |
Feeding Range(mm) | Sand ore | -2 | -2 | -2 | -2 | |
slime | -0.074 | -0.1 | -0.074 | -0.074 | ||
Feeding Density | % | 10-30 | 10-30 | 10-30 | 10-30 | |
Capacity (t/h) | Sand ore | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 | |
slime | 0.5-0.8 | 0.4-1 | 0.3-0.5 | 0.05-0.1 | ||
Water consumption | t/h | 0.4-0.7 | 0.3-1.5 | 0.2-1 | 0.1-0.5 | |
Motor power | kw | 1.1 | 1.1 | 1.1 | 0.55 | |
Dimension (mm) L× W × H | 5600× 1850× 860 | 4075× 1320× 780 | 3040× 1050× 1020 | 1530× 500× 800 | ||
Deck Weight(kg) | 370 | 310 | 180 | 50 | ||
Product Application

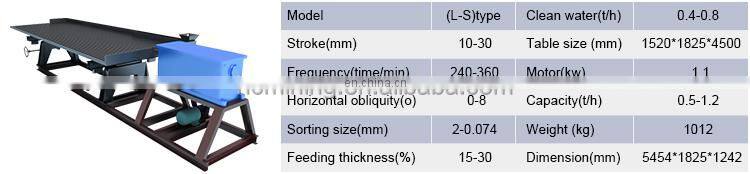

Product Parameters
Why Choose Dewo Shaking table ? |
1.International standard with ISO, CE certificate. |
2.Simple system, safe and easy operation. |
3.Flexability in fuels used (NG, Oil, Coal ect.) |
4.Year of experience with all types of Shaking tables. |
5.Capable of installation anywhere in world. |
6.True understanding of process conditions. |
Product &Details
Company Profile
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and10,000 tons of crusher parts.
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their
investments.
investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
4.Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges..
Customer Site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc.
and our products are well received by customers. Welcome to inquiry!
and our products are well received by customers. Welcome to inquiry!
Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
