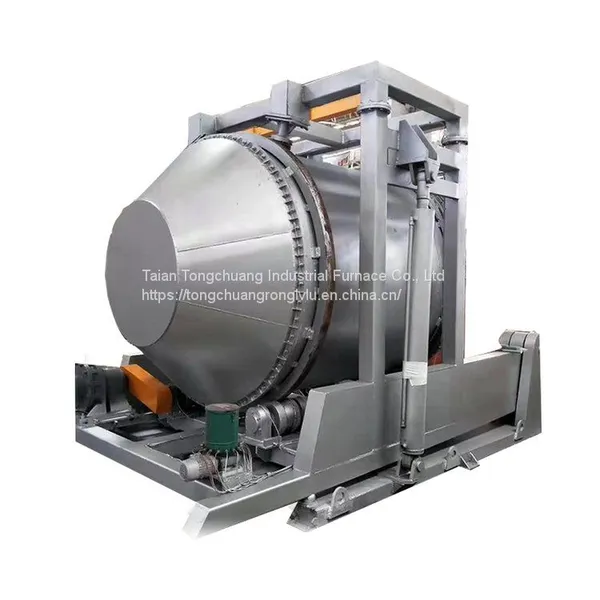

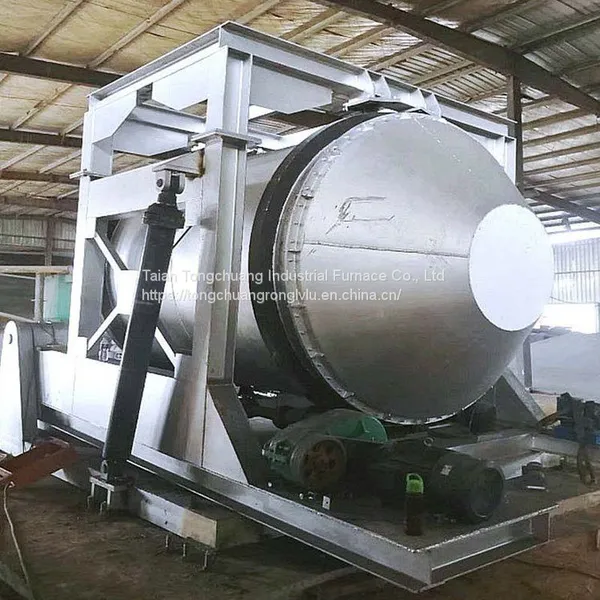

Aluminum slag tilting converter is suitable for mass processing of hot slag, cold slag and aluminum slag containing high iron. The number of configurations is small, as long as a skilled forklift worker and an auxiliary worker can, a day can deal with several tons to dozens of tons of thermite, high efficiency.
Hot slag from the furnace rake, with a rotary forklift truck sent into the converter, the use of the converter inverted rotation and fork fork rake before and after the mixing, that is, can be separated from the aluminum slag aluminum water, in the process of operation should pay attention to the control of temperature, you can add cold slag or small aluminum as a temperature control agent and secondary refining. The rotary furnace and screening type cold ash barrel are the ideal equipment to process aluminum slag and cold slag in large quantities instead of crucible and vertical frying plane.
Rotary kiln processing hot aluminum slag slag and slag cold all don't need heating device, especially when dealing with cold slag only need one bucket stove rake out hot slag, can continuous operation process, operation process in addition to equipment operation power does not need additional energy consumption, because it is centralized processing, the collection of dust to concentration, truly the energy conservation and environmental protection.
Advantages :
This equipment is recycled and utilized again by ash from slag of melting furnace. Rotary kiln used to deal with the large quantities of lv slag plant, after processing can also be here in your cold ash bucket for cooling and separation, sorting out the ash content of fine of 3, fine ash can direct delivery handling, ash and crude ash in the oven do in rotary kiln can be added in the coolant used, can make aluminum slag recycling aluminum get, economic benefit is obvious.
Main Technical Parameters
SN |
Specification |
HZL-3T |
HZL-5T |
HZL-6T |
HZL-8T |
1 |
Furnace Size |
Φ2250mm×3385 |
Φ2420mm×4120 |
Φ2420mm×4630 |
Φ2660×4830 |
2 |
The rate of Upward |
50s |
55s |
1min10s |
1min15s |
3 |
The rate of decline |
30-40s |
40s |
50-55s |
55-60s |
4 |
Furnace rotation speed |
2r/min |
|||
5 |
Transmission motor |
11kw-6P |
15KW-6P |
||
6 |
Universal coupling |
SWC-BH150 |
SWC-BH180 |
||
7 |
Transfer method |
Main motor: sprocket chain rotation / Barrel: ring type track and pallets friction drive |
|||
8 |
Automatic fuel pump |
GDB-4 |
|||
9 |
Ash capacity |
3T |
5T |
6T |
8T |
10 |
Ash feeding method |
Half round ash bucket rotary forklift feeding |
|||
11 |
Ash way |
Driven by hydraulic cylinder, the furnace body tilts and rotates to release ash |
|||
12 |
Recovery rate |
>80% |
|||
13 |
Distributed dust removal air volume |
20000m³/h |
25000m³/h |
25000m³/h |
25000m³/h |
14 |
Suction flue gas temperature |
℃ |
|||
Welcome to select and purchase!
