Home > Products > Induction melting furnace > 20kg 50kg 100kg Induction Melting Furnace for Melting Copper, Iron and Steel

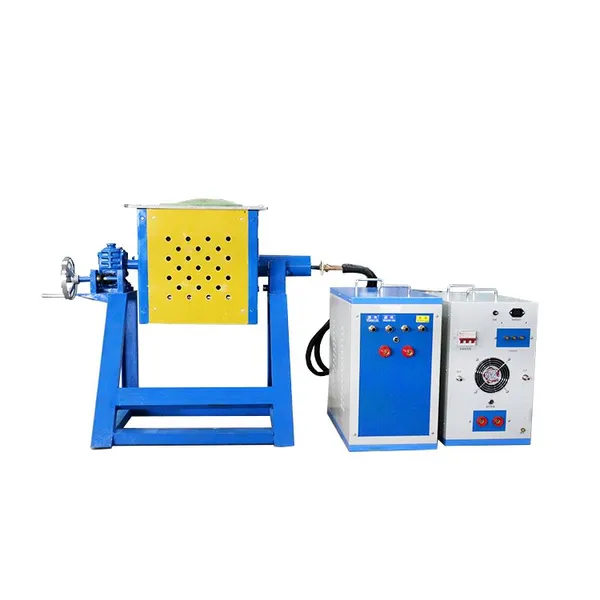

20kg 50kg 100kg Induction Melting Furnace for Melting Copper, Iron and Steel
Negotiable
/ Set
1 Set(Min. Order)
You May Like
Product Details
| Place of Origin | China | Type | Induction Furnace | |
| Certification | yes | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | yes | Weight | about 250kg | |
| Dimension(L*W*H) | 150*80*100 | Voltage | 380v | |
| Usage | Melting Furnace | Condition | New | |
| Power(W) | 45kw |
Product Description
A Industrial electric furnace include:
1. Induction Heating Generator.
2. Tilt Melting Furnace
3. Compensating capacitor
| NO | Steel, iron, nickel, chromium | Gold, silver | Copper, tin, antimony, lead, zinc and germanium | Aluminum, silicon, titanium and magnesium | Voltage | Input power | melting time |
| IRI-15 | 200G | 2KG | 2KG | 500G | 220v | 7kw | ≤8minutes |
| IRI-25 | 500G | 3-5KG | 3-5KG | 0.5KG | 380v | 15kw | ≤8minutes |
| IRIS-15 | 2KG | 10KG | 10KG | 5KG | 380v | 15kw | ≤20minutes |
| IRIS-25 | 4KG | 20KG | 20KG | 10KG | 380v | 25kw | ≤20minutes |
| IRIS-35 | 8KG | 40KG | 40KG | 20KG | 380v | 35kw | ≤30minutes |
| IRIS-45 | 15KG | 60KG | 60KG | 30KG | 380v | 45kw | ≤30minutes |
| IRIS-70 | 25KG | 100KG | 100KG | 40KG | 380v | 70kw | ≤30minutes |
| IRIS-90 | 45KG | 120KG | 120KG | 50KG | 380v | 90kw | ≤30minutes |
| IRIS-110 | 60KG | 150KG | 150KG | 60KG | 380v | 110kw | ≤40minutes |
| IRIS-160 | 100KG | 180KG | 180KG | 75KG | 380v | 160kw | ≤40minutes |
