25kw 35kw 45kw 70kw Medium Frequency Induction Melting Furnace

Zhengzhou Iris Industrial Technology Co.Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Type:

Induction Furnace

Certification:

yes

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Type Induction Furnace

Certification yes

After-sales Service Provided Engineers available to service machinery overseas

Warranty yes

Weight about 250kg

Dimension(L*W*H) 150*80*100

Voltage 380v

Usage Melting Furnace

Condition New

Power(W) 45kw

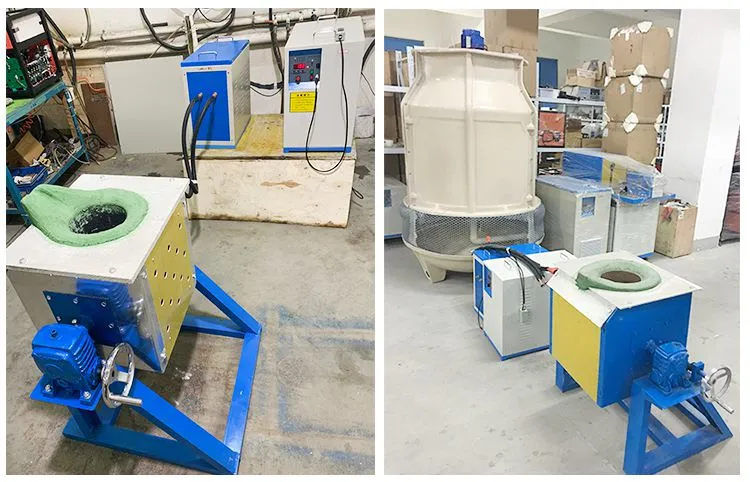

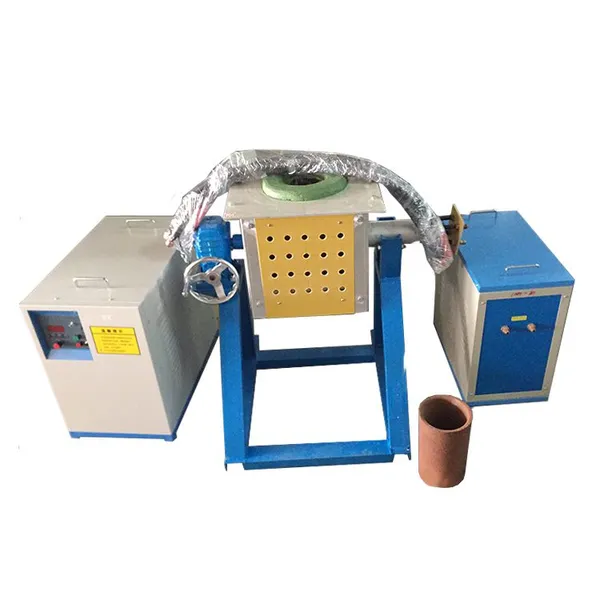

A Industrial electric furnace include:

1. Induction Heating Generator.

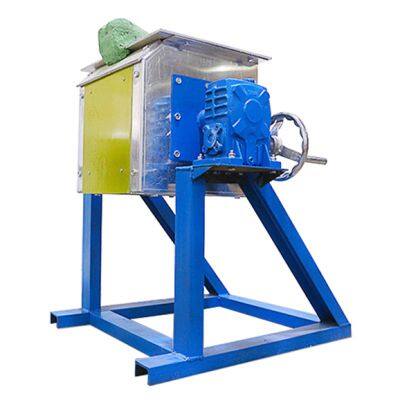

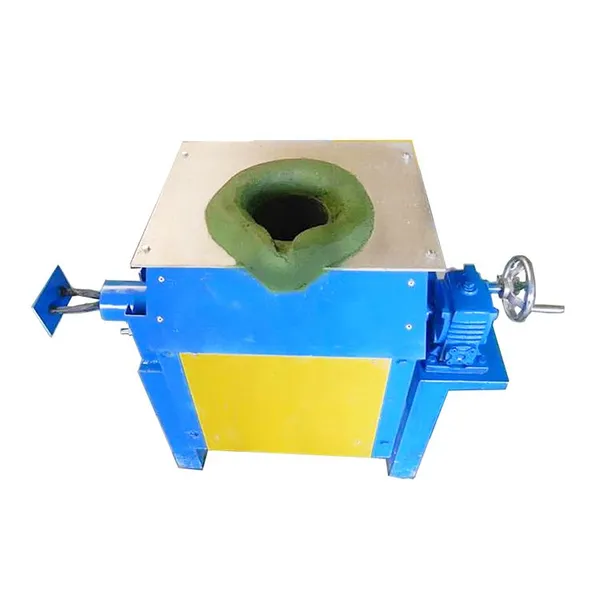

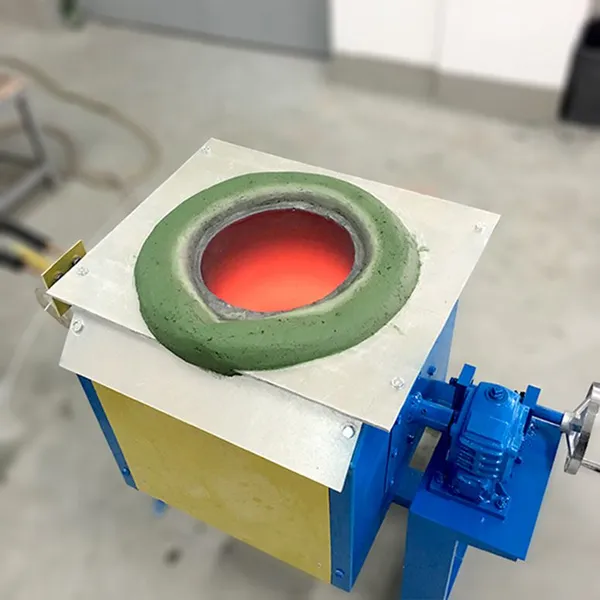

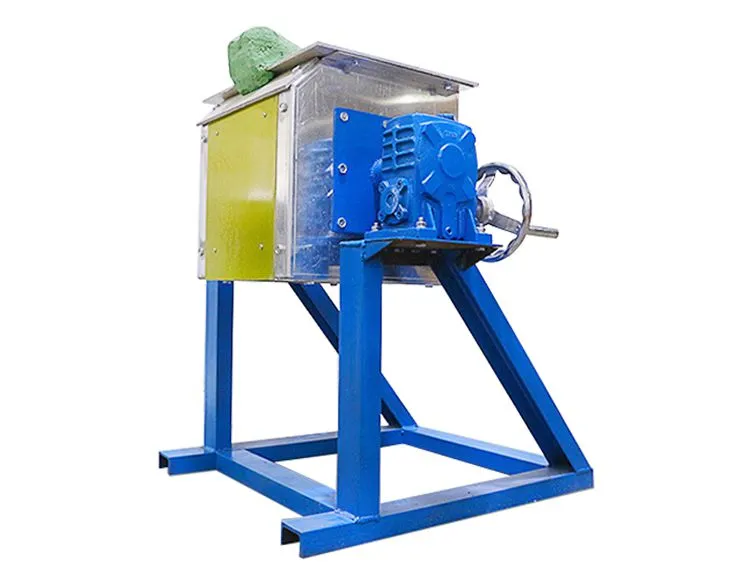

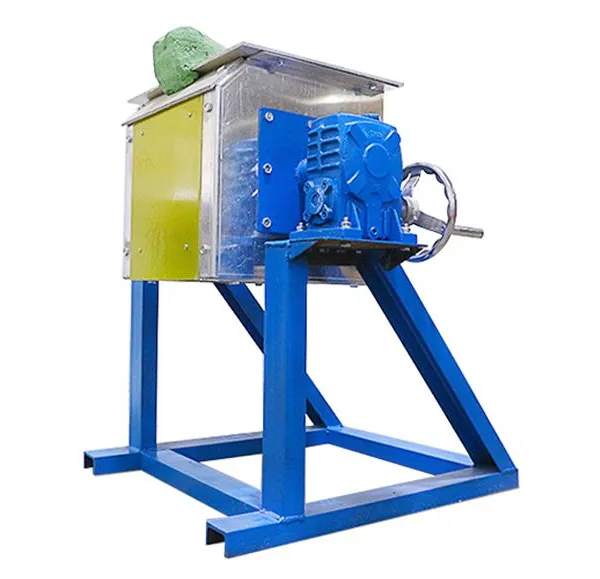

2. Tilt Melting Furnace

3. Compensating capacitor

NO	Steel, iron, nickel, chromium	Gold, silver	Copper, tin, antimony, lead, zinc and germanium	Aluminum, silicon, titanium and magnesium	Voltage	Input power	melting time
IRI-15	200G	2KG	2KG	500G	220v	7kw	≤8minutes
IRI-25	500G	3-5KG	3-5KG	0.5KG	380v	15kw	≤8minutes
IRIS-15	2KG	10KG	10KG	5KG	380v	15kw	≤20minutes
IRIS-25	4KG	20KG	20KG	10KG	380v	25kw	≤20minutes
IRIS-35	8KG	40KG	40KG	20KG	380v	35kw	≤30minutes
IRIS-45	15KG	60KG	60KG	30KG	380v	45kw	≤30minutes
IRIS-70	25KG	100KG	100KG	40KG	380v	70kw	≤30minutes
IRIS-90	45KG	120KG	120KG	50KG	380v	90kw	≤30minutes
IRIS-110	60KG	150KG	150KG	60KG	380v	110kw	≤40minutes
IRIS-160	100KG	180KG	180KG	75KG	380v	160kw	≤40minutes
