Home > Industrial Equipment & Components > Boiler & Furnace > Furnace > Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace

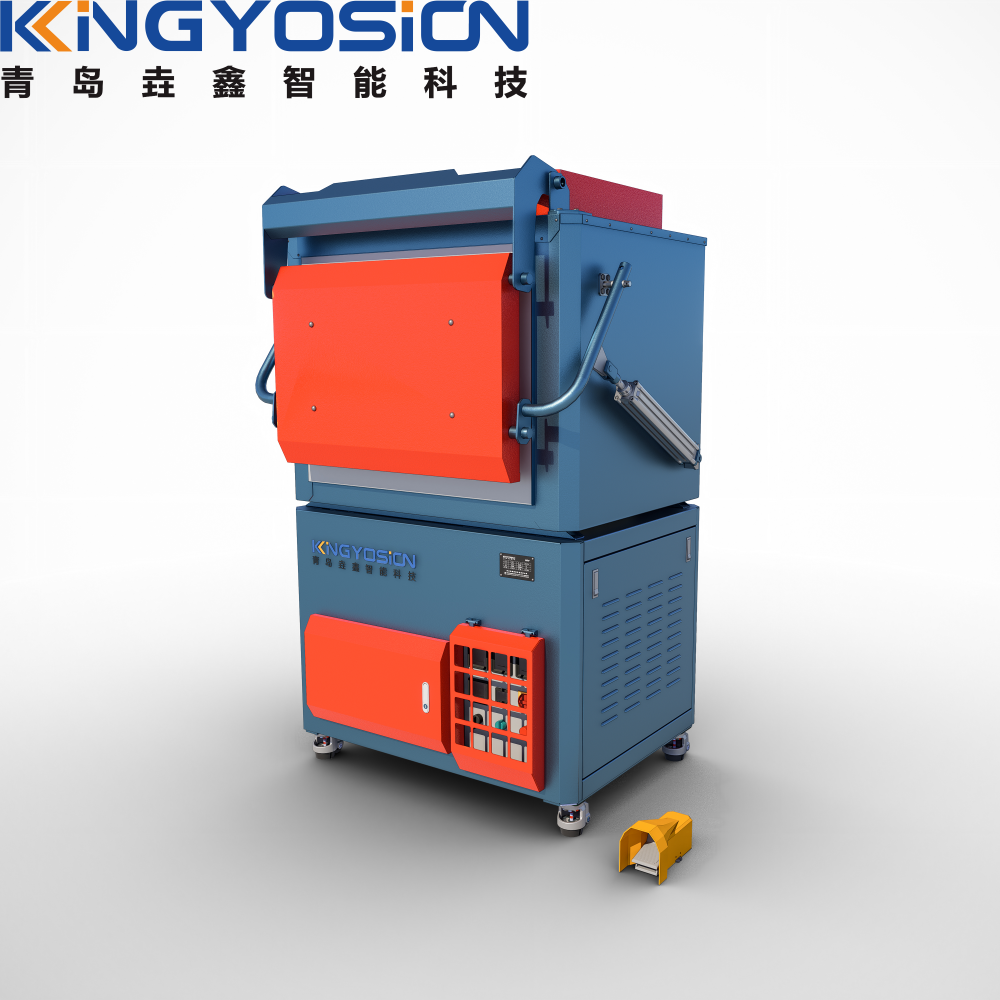

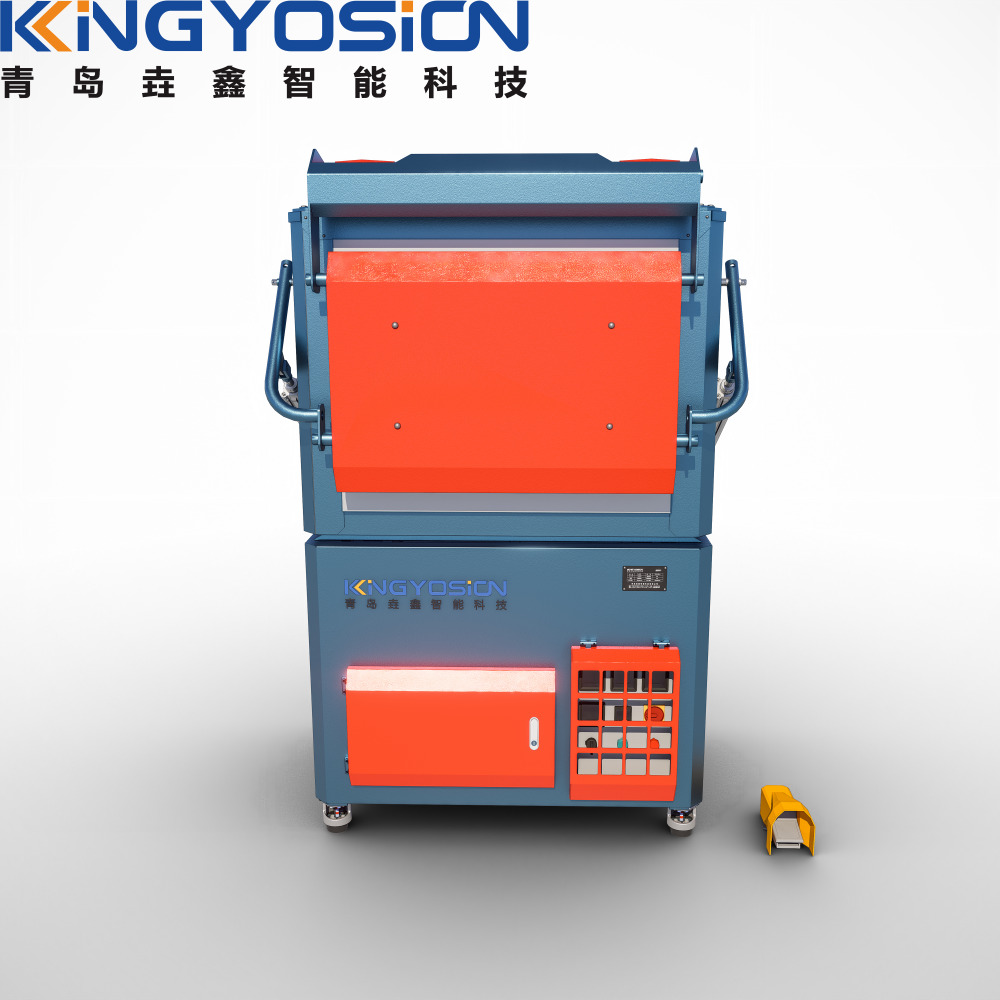

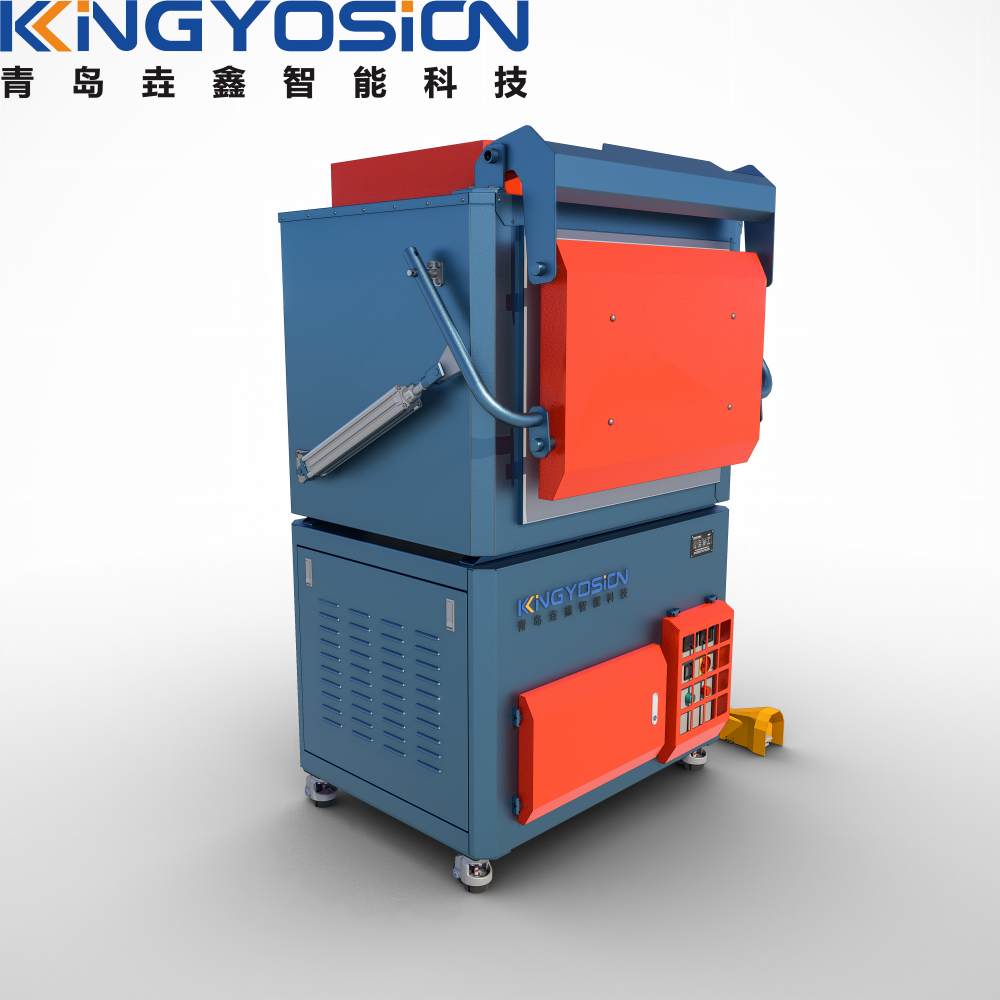

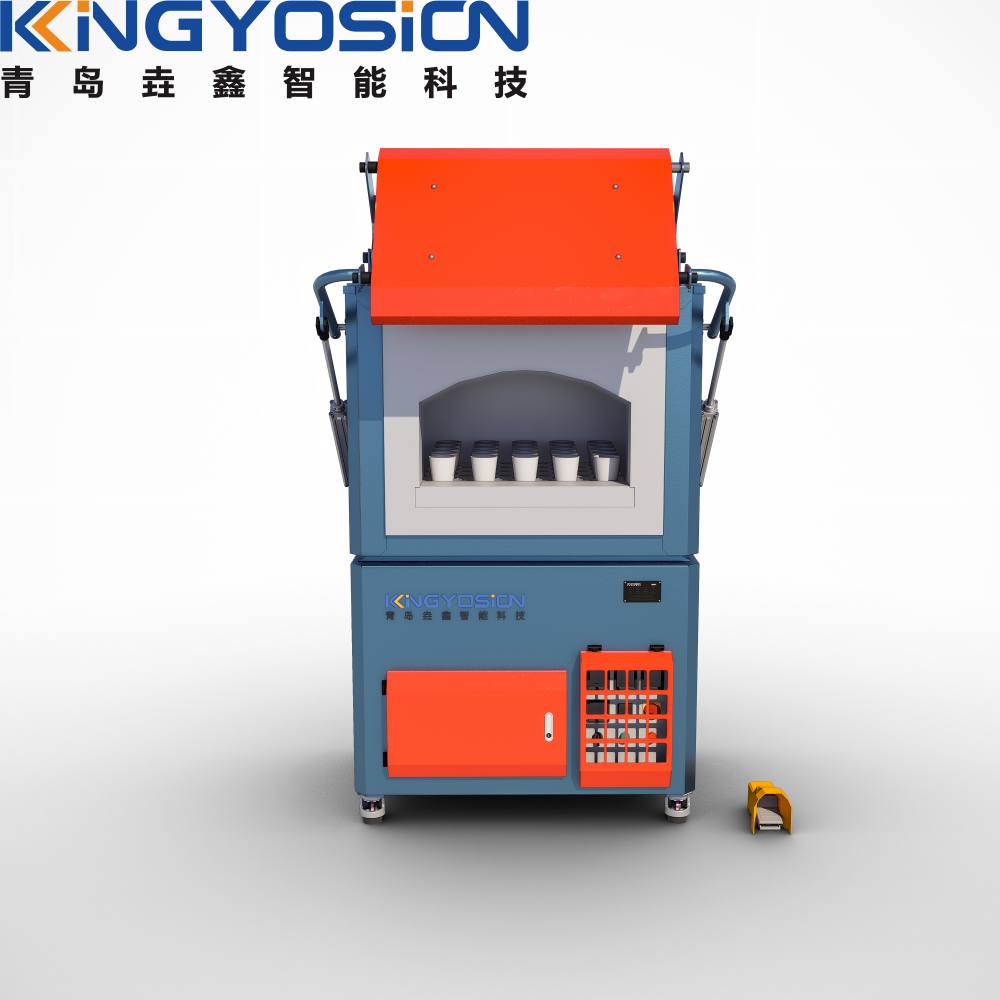

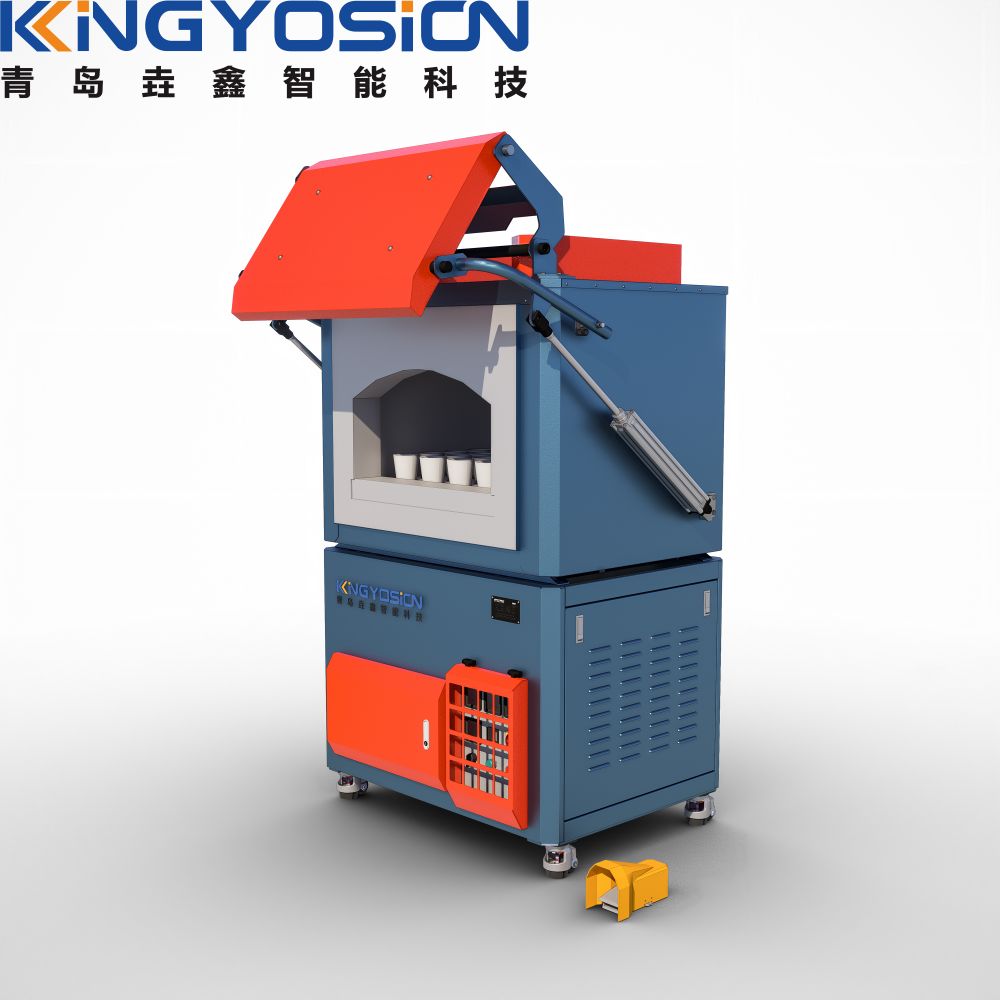

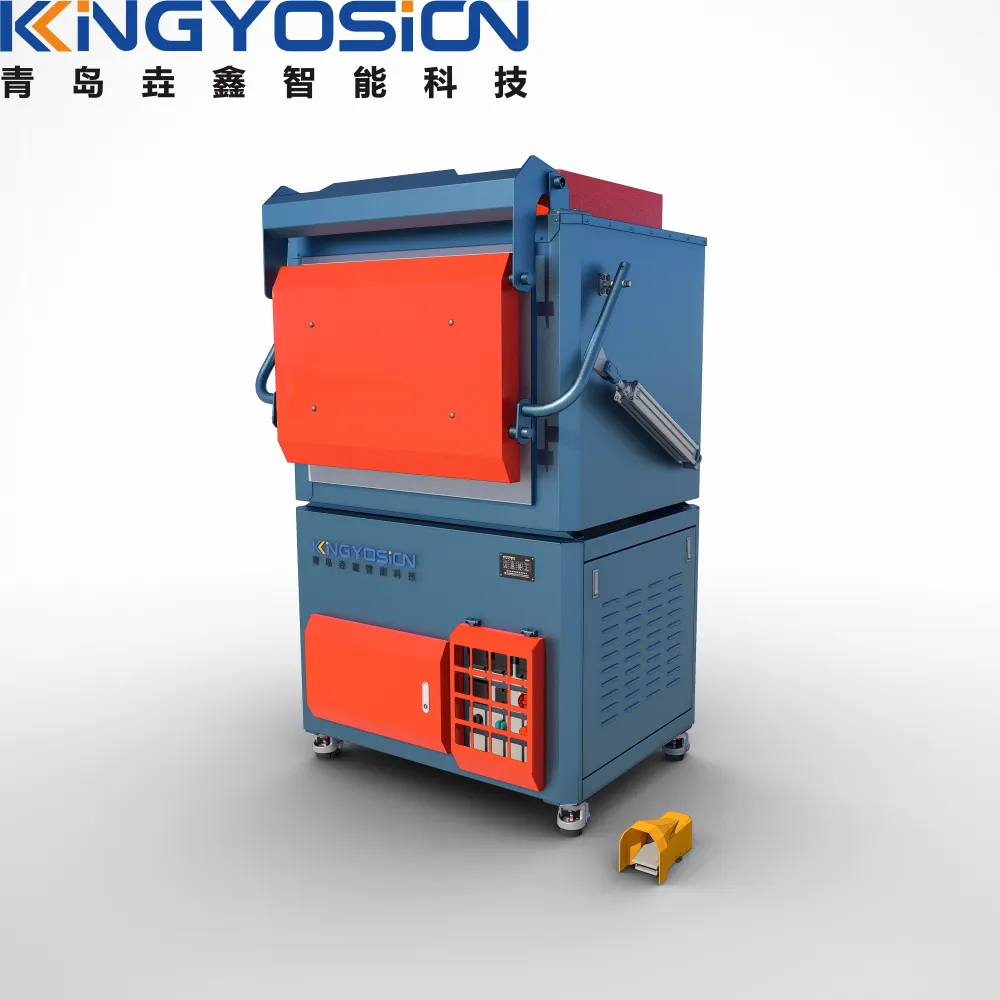

Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace

Qingdao Yaoxin Intelligent Technology Co., Ltd.
Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace thumbnail-1
Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace thumbnail-2
Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace thumbnail-3
Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace thumbnail-4
Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace thumbnail-5
Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace photo-1

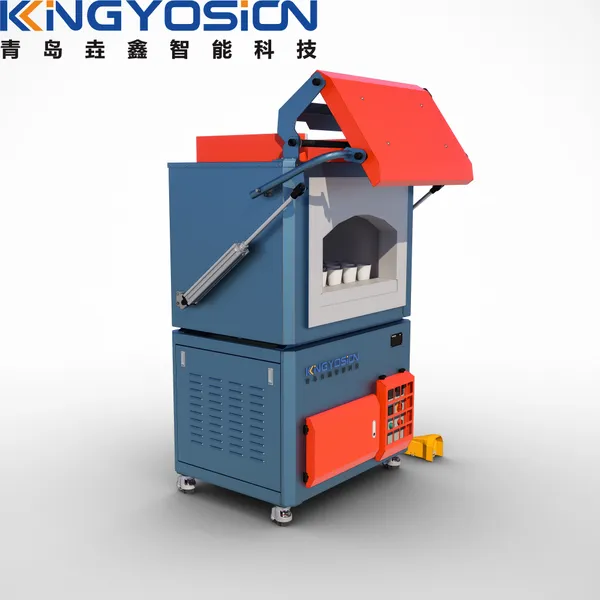

Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace photo-2
Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace photo-3
Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace photo-4
Yosion Technology YX-FF25 Fire Assay Melting Furnace;Heating the Sample;Muffle Furnace photo-5
US$ 8290 1 - 2 Set
US$ 8200 ≥3 Set
Key Specifications
Get Latest Price
Brand Name:
Kingyosion
Place of Origin:
China
Model Number:
YX-FF25
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao,Shandong
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Kingyosion
Place of Origin China
Model Number YX-FF25
Type Resistance Furnace
Warranty 1 year
Dimension(L*W*H) 1300*1100*1850
Voltage 380V/50Hz
Usage Melting Furnace
Condition New
Power(W) 40000

Electric Fusion Furnace

Usage Introduction:

The fusion furnace is used in the experiment and production of electronics, ceramics, metallurgy, glass, new material development and other fields. It is mainly used for melting samples in fire assay test.

Product Features:

l Easy to use.

l Heating element: 12 silicon carbon rods; continuous heating can extend the service life.

l Temperature is monitored and modulated automatically by a Type K thermocouple and Omron temperature controller, pre-set for a maximum temperature of 1200 degrees Celsius. This controller is simple to operate. It shows PV(set temperature) and SV(actual temperature) data.

Technical Parameter:

Model

YX-FF12

YX-FF25

Input voltage

380V

380V

Output voltage

90V-150V

90V-150V

Power

18kW,Three-phase

40kW,Three-phase

Muffle Size

465Wx380Dx310H(Internal)  500Wx430Dx360H(External)

600Wx570Dx303H (Internal)  660Wx610Dx360H(External)

Max. Temperature

1200℃

1200℃

Crucible specifications and quantity

Takes 12 x 50g,65g crucibles or 16 x 30g,40g,55g crucibles at one time

Takes 25 x 50g,65g crucibles or 36 x 30g,40g,55g crucibles at one time

Door Opening

Manual

Pneumatic, pipe diameter 8 mm , pressure 0.4-0.8 MPA

25熔样炉525熔样炉425熔样炉325熔样炉625熔样炉1

Product Tags: Fire Assay , Melting Furnace , Muffle Furnace
