Brand:GE

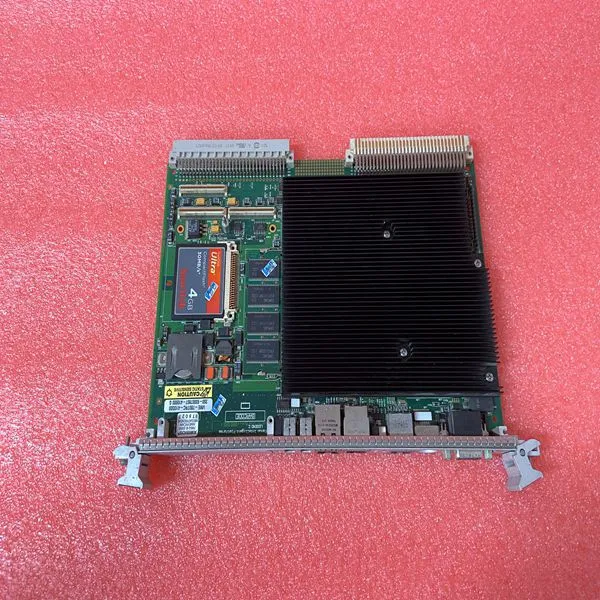

Type:VME-7807RC VME-7807RC-410000
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Importing the Add-On Instruction 1 Open the application in Studio 5000. 2 Expand the TASKS folder, and expand the MAINTASK folder. 3 Expand the MAINPROGRAM folder. The MAINROUTINE contains rungs of logic. The very last rung in this routine is blank. This is where you can import the Add-On Instruction. Note: You can place the Add-On Instruction in a different routine than the MainRoutine. Make sure to add a rung with a jump instruction (JSR) in the MainRoutine to jump to the routine containing the Add-On Instruction. 4 Right-click an empty rung in the routine and choose IMPORT RUNGS.
Select the .L5X file that you exported from PCB (Creating and Exporting the .L5X File (page 24)). This opens the Import Configuration dialog box. Click TAGS under MAINROUTINE to display the controller tags in the Add-On Instruction. Note: If you are using RSLogix version 16 or earlier, the Import Configuration dialog box does not contain the Import Content tree.
If the module is not located in the default slot (or is in a remote rack), edit the connection input and output variables that define the path to the module in the FINAL NAME column (NAME column for RSLogix version 16 or less). For example, if your module is located in slot 3, change Local:1:I in the FINAL NAME column to Local:3:I. Do the same for Local:1:O. Note: If your module is located in Slot 1 of the local rack, this step is not required. 7 Click OK to confirm the import. 8 When the import is completed, the new rung with the Add-On Instruction is visible.
Adding Multiple Modules in the Rack (Optional) Important: This procedure is for multiple MVI69E-MBS modules running in the same CompactLogix or MicroLogix 1500-LRP rack. You can add additional modules of the same type to the rack. 1 Add a new MVI69E-MBS module to the ProSoft Configuration Builder (PCB) project. 2 Export the module configuration as an L5X file. 3 Add a new MVI69E-MBS to the Studio 5000 project. 4 Import the .L5X file into Studio 5000 for the new module as an Add-On Instruction. 2.5.1 Adding Another Module in PCB 1 Start ProSoft Configuration Builder. 2 Right click DEFAULT LOCATION (which you can rename) and choose ADD MODULE. 3 Right-click NEW MODULE and choose CHOOSE MODULE TYPE. 4 In the Choose Module Type dialog box, select MVI69E in the PRODUCT LINE FILTER area, and then select MVI69E-MBS as the MODULE TYPE. Click OK. 5 Select the MVI69E-MBS module in the tree and repeat the above steps to add a second (or more) module in the PCB project.
