Help CenterCB06561 PRD-B040SSlz-62
Related Products

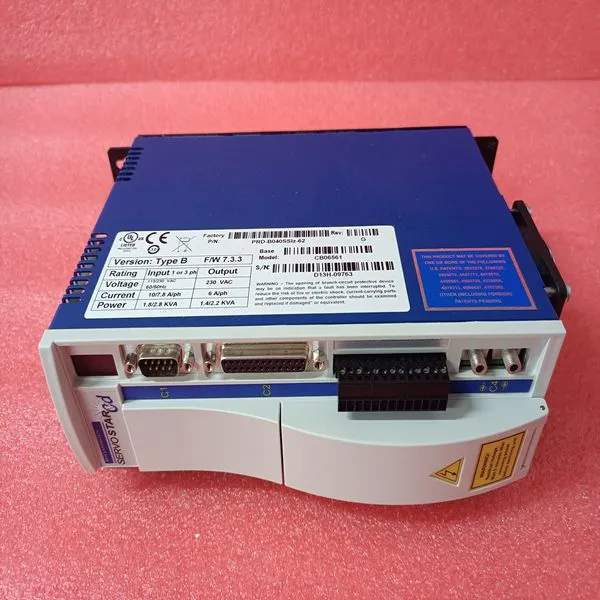

Brand:KOLLMORGEN
Type:CB06561 PRD-B040SSlz-62
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
The red F(ault) LED indicates a fault condition on CI869. A reset turns the F LED ON, till the unit is initialized. R(un) / Green The green R(un) LED indicates that the CI869 is operational. A reset turns the R LED OFF. Rx / Yellow The yellow Rx LED indicates that the CI869 receives traffic. The Rx LED is ON, without flashing, when traffic is normal. The Rx LED flashes with less frequency when no bus traffic is detected, flashes with 50% more frequency when the module has bus traffic and the device is not configured, and flashes with 75% more frequency when the device is configured, but the CDPs are not correctly polled. A reset turns the Rx LED OFF. Mast(er) This LED is not used. Prim(ary) The yellow Prim(ary) LED indicates that the CI869 is the primary module of a redundant pair. A reset turns the Prim LED OFF. Dual The yellow Dual mode LED indicates that the redundancy is active. A reset turns the Dual LED OFF
Item Value Type AF 100 Communication Interface Protocol Advant Fieldbus 100 Communication speed TWP 1.5 Mbit/s Status indicators Running normally: Green. Exceptional fault: Red. Traffic indicator – Rx -- controlled by traffic pace: Flashing Yellow Running as primary: Yellow. Running in a redundant configuration: Yellow. Connectors Twisted Pair (TWP) Current consumption (from CEXBus 24VDC) 160 mA typical (250 mA max) Power dissipation 3.8W typical (6W max) Protection Rating IP20 according to EN60529, IEC 529 Weight 500 g Dimensions W 59 x H 185 x D 127.5 mm (W 2.9 x H 7.3 x D 5.0 in)CI871 and TP867 – PROFINET IO Interface Key Features • Provides one 10/100 Mbps fast Ethernet port for PROFINET IO (RJ45 connector located on the TP867 base plate). • Simple DIN-rail mounting.
Send Inquiry to This Supplier
