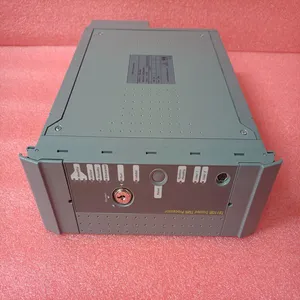

ICS TRIPLEX T8110B

Brand:ICS TRIPLEX

Type:T8110B

Origin: the United States

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

CI872 and TP858 - MOD5 Interface Key Features • CEX-Bus Module • Simple DIN rail mounting • Supports communication interface redundancy • Three full duplex fiberoptic ports • Supports MOD5-to-MOD5 protocol Description The MOD5 communication interface, type - CI872, connects the AC 800M controller to the MOD5 controllers. The baseplate has a code lock that prevents the installation of an incorrect unit onto the TP858 baseplate. The CI872 expansion unit contains the CEX-bus logic, a communication unit, and a DC/DC converter that supplies appropriate voltages from the +24 V supply through the CEX-bus. CI872 should be mounted only on a horizontal DIN- rail. The base plate has a locking mechanism that contacts the metal back plate to the DIN-rail, which provides an effective ground connection. The CI872 and its base plate are supplied as a single unit (CI872), and there is no requirement to separate them during the mounting procedure. To mount the modules on the DIN-rail, it is necessary to use only a flat bladed screwdriver. In case of assembling after a separation (hot insertion), verify that the key coding is same for the base plate and the electronic module.

Technical Data Table 105. PROFINET IO Interface CI871 - Technical Specification Item Value Type Ethernet unit Protocol PROFINET IO Communication speed CH1 10 Mbps / 100 Mbps defined in IEEE 802.3u 10/100 Base-Tx. Status indicators Running normally: Green. Exceptional fault: Red. Two traffic indicators – RxTx1 and RxTx2(LED is always switched off) controlled by traffic pace: Flashing Yellow. Running as primary: Yellow. Running in a redundant configuration: Yellow. Connectors RJ45 Current consumption (from CEX-Bus 24VDC) 160 mA typical (250 mA max). Power dissipation 3.8 W typical (6 W max). Protection Rating IP20 according to EN60529, IEC 529. Weight 500 g (700 g with package) (package CI871K01 with CI871 and TP867). Dimensions W 59 x H 185 x D 127.5 mm. (W 2.9 x H 7.3 x D 5.0 in).
