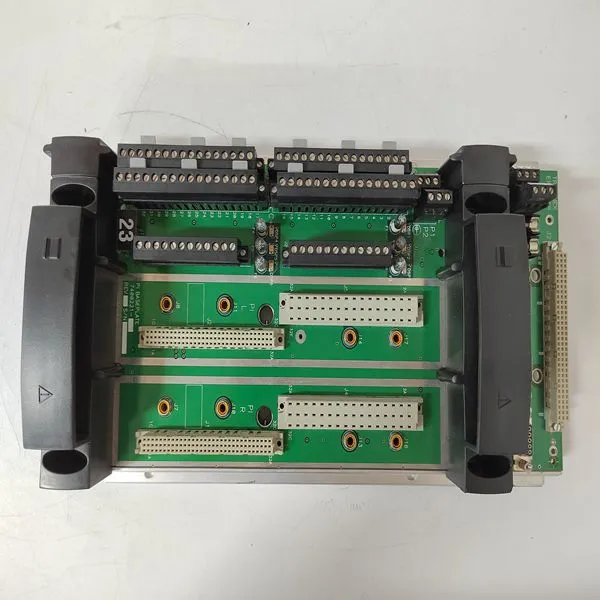

Help CenterTRICONEX EPI3382 7400221
Related Products
Brand:TRICONEX
Type:EPI3382 7400221
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
SB822 Rechargeable External Battery Unit The Li-Ion battery package is mounted inside the SB822 unit. To prevent problems you need to charge it on a regular basis. Specification for the battery package: • Type: Rechargeable Lithium-Ion, 3.75V 2.3 Ah • Size: Prismatic 14.5x43x50 mm • Lithium equivalent content: 0.8 g Replacing the Battery in an SB822 Rechargable External Battery Unit To replace the Li-Ion battery: 1. Disconnect the TK821V020 cable connector. 2. Disconnect the 24V supply cable connector 3. Release the SB822 unit from the DIN-rail. 4. Attach a properly grounded ESD wrist strap to your wrist before you proceed. 5. Carefully remove the SB822 unit cover and identify the battery package. 6. Carefully disconnect the battery connector from the PCB. 7. Carefully remove the battery package. 8. Insert the new battery and connect. Reassemble is reverse from disassemble. 9. Install the unit. 10. Dispose of the worn battery package in an approved manner.
Replacement online entails adding or removing units in a controller without disturbing the execution of the running application program. Units are connected to the CEX-Bus and the electrical ModuleBus (S800 I/O). CEX-Bus Communication interfaces (CI8xx) Can be removed or replaced online. Restrictions apply, refer to the installation section for each interface and to Appendix A, Hardware Units. Baseplates for CI8xx (TP8xx) Must not be replaced online. ModuleBus S800 I/O units Can be removed or replaced online. Module Terminal Units (MTUs) Must not be replaced online Redundant CPUs Processor unit Can be removed or replaced online (see the next following pages) RCU Link Cables Can be removed or replaced online. However, the following restriction applies; you cannot replace the RCU link cable online in a previous than 4.1 software version. For more information, see the instructions given in Exchanging a Defect RCU Link Cables Online on page 202.
