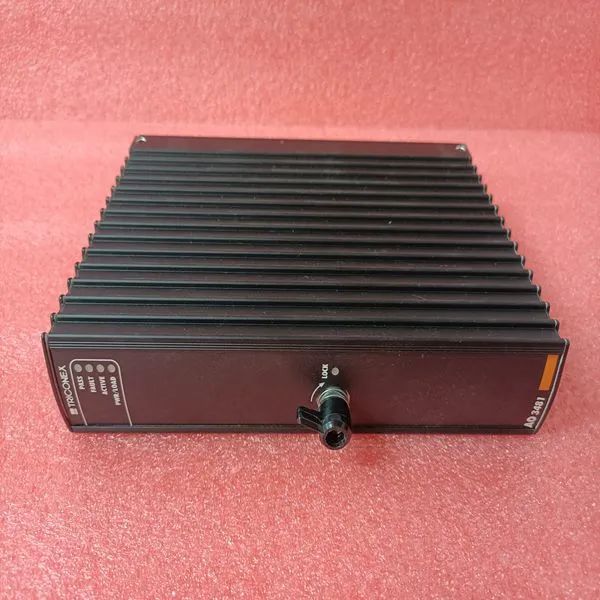

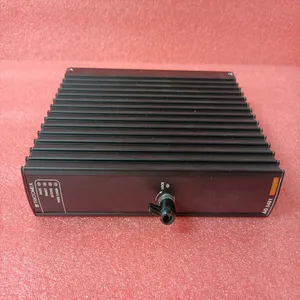

Help CenterTRICONEX 3481
Related Products
Brand:TRICONEX
Type:3481
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
MBS.CONTROL.EventCmd_ProcessorData This array allows the processor to dynamically build Modbus commands with processor data. This feature is meant for periodic execution such as resetting the clock and zeroing-out counters. Tag Name Range Description MBS.CONTROL.EventCmd_Processor Data.CmdTrigger 0 or 1 Toggle to send Event Command. 0 = Disable, 1 = Enable MBS.CONTROL.EventCmd_Processor Data.GetStatusTrigger 0 or 1 Toggle to retrieve event status. 0 = Disable, 1 = Enable MBS.CONTROL.EventCmd_Processor Data.PortNumber 1 or 2 Port number to be associated with command MBS.CONTROL.EventCmd_Processor Data.SlaveAddress 1 to 248 Slave ID of Modbus slave MBS.CONTROL.EventCmd_Processor Data.ModbusFunctionCode - Modbus function code (5,6,15, or 16) MBS.CONTROL.EventCmd_Processor Data.DeviceDBAddress 0 to 9999 Modbus address of the target slave database MBS.CONTROL.EventCmd_Processor Data.PointCount 0 to 125 Number of bit/words associated with this command. MBS.CONTROL.EventCmd_Processor Data.Data[x] 0 to 49 Data values to be sent to the slave MBS.CONTROL.EventCmd_Processor Data.EventCmdStatusReturned - Command status MBS.CONTROL.EventCmd_Processor Data.PortxStatus - Port x Status array MBS.CONTROL.EventCmd_Processor Data.PortxStatus.Status - Status code. See Communication Error Codes (page 110). MBS.CONTROL.EventCmd_Processor Data.PortxStatus.LastError - Last error code
MBS.CONTROL.SlavePoll This array allows the processor to enable, disable and retrieve status for slaves. Tag Name Range Description MBS.CONTROL.SlavePoll.Portx - Port x slave polling control. MBS.CONTROL.SlavePoll.Portx. EnableSlaves 0 or 1 Slave Poll request. 0 = Disable, 1 = Enable Note: The AOI resets the tag to 0 after being enabled. MBS.CONTROL.SlavePoll.Portx. EnableSlaveCount 1 to 60 Total number of slaves to be enabled in the MBS.CONTROL.SlavePoll.Portx.EnableSlavesIDs[x] array. MBS.CONTROL.SlavePoll.Portx. EnableSlavesIDs[x] - The list of slave ID’s to be enabled. Example: To enable slave ID’s 1, 3, and 4; enter the following values: MBS.CONTROL.SlavePoll.Portx.EnableSlavesIDs[0] = 1 MBS.CONTROL.SlavePoll.Portx.EnableSlavesIDs[1] = 3 MBS.CONTROL.SlavePoll.Portx.EnableSlavesIDs[2] = 4 A value of ‘3’ would be entered in the MBS.CONTROL.SlavePoll.Portx.EnableSlaveCount tag since there are 3 slave ID’s to enable. Note: The AOI will not reset the tag array to 0 after being enabled. MBS.CONTROL.SlavePoll.Portx. DisableSlaves 0 or 1 Triggers disable slaves request. 0 = Disable, 1 = Enable Note: The AOI resets the tag to 0 after being enabled. MBS.CONTROL.SlavePoll.Portx. DisableSlaveCount 1 to 60 Number of slaves to be disabled. MBS.CONTROL.SlavePoll.Portx.
DisableSlavesIDs[x] - The list of the slave ID’s to be disabled. Example: To disable slave ID’s 1, 3, and 4; enter the following values: MBS.CONTROL.SlavePoll.Portx.DisableSlavesIDs[0] = 1 MBS.CONTROL.SlavePoll.Portx.DisableSlavesIDs[1] = 3 MBS.CONTROL.SlavePoll.Portx.DisableSlavesIDs[2] = 4 A value of ‘3’ would be entered in the MBS.CONTROL.SlavePoll.Portx.DisableSlaveCount tag since there are 3 slave ID’s to disable. Note: The AOI will not reset the tag array to 0 after being enabled. MBS.CONTROL.SlavePoll.Portx. GetSlavesStatus 0 or 1 Triggers request to read slave status. 0 = Disable, 1 = Enabled MBS.CONTROL.SlavePoll.Portx. SlavesStatus[x] - Data array with status.
Send Inquiry to This Supplier
