Bently Nevada 3500/93 Local LCD Display Interface Module
I. Product Description
3500/93 (Hardware Part Number: 135785-01/135785-02) is a local LCD operation display module for the Bently 3500 series TSI system, integrating a color LCD display screen + physical operation keys. It can be directly installed in the 3500 rack slot without the need for an external display, keyboard, or mouse. It enables on-site viewing of real-time data, alarm status, and event logs for all measurement points such as vibration, displacement, temperature, and rotational speed of the entire machine frame. It supports channel bypass, alarm parameter viewing, sensor circuit diagnosis, and is an early on-site operation unit for the 3500 system. It supports hot plugging of the rack and complies with API670 rotating machinery protection standards.
Key Technical Parameters
Model: 3500/93, Hardware Part Number: 135785-01 (Old Model), 135785-02 (New Model)
Display Configuration: 12.1-inch industrial color LCD screen, equipped with front operation key panel
Communication Bus: Based on the internal TDI high-speed bus of 3500 rack, reads all monitoring module data of the entire rack
Basic Functions: Real-time measurement point value viewing, two-level alarm status display, gap voltage monitoring, event SOE record query, channel bypass operation, module fault diagnosis
Screen Configuration: Supports custom group monitoring screens, can display key TSI measurement points of the unit axis system in a centralized manner
Power Supply Method: DC power supply from the backplane of 3500 rack, typical power consumption of the entire machine is 15W
Operating Environment Temperature: -30℃ to +65℃; Storage Temperature: -40℃ to +85℃
Relative Humidity: 5% to 95% RH, no condensation
Protection Grade: IP20, full-height 19-inch standard rack slot installation, supports online non-stop hot plugging
Panel Indicator Lights: System OK, bus communication failure, global alarm status indicator lights
Certification: CE, UL, API670 Industrial Electromagnetic Compatibility and Mechanical Equipment Safety Certification
Product Performance
Integrated local operation design, built-in screen and buttons, no need for external upper equipment connection, can complete TSI system inspection, fault location, measurement point maintenance operation beside the cabinet, operation is convenient and efficient.
Complete retrieval of all channel operation data of the entire rack, can view shaft vibration, axial displacement, expansion difference, bearing temperature, speed, gap voltage and all process parameters, display warning and danger two-level alarm status in real time.
Built-in massive event storage, can query historical alarms, module faults, channel switching, bypass operation records, used for accident trace analysis of the unit.
Supports single-channel bypass shielding, alarm delay parameter viewing, sensor break / short circuit circuit diagnosis, when inspecting the measurement point, can temporarily isolate protection without affecting the interlock operation of other measurement points.
Compatible with all 3500 series acquisition, relay, communication modules, new and old 3500 racks are universal, old TSI system spare parts replacement does not need to modify the configuration program.
Can be used as a low-cost alternative to the external display scheme of 3500/94, suitable for cabinet scenarios where there is no extra space for external display.
Application Domains
Thermal Power Plants, Gas Power Plants, Hydropower Plants: Turbine units, gas turbines, water turbine TSI system local inspection, fault troubleshooting, sensor circuit calibration
Petrochemical Industry: Large centrifugal compressors, steam turbines, axial flow fans rotating equipment local status monitoring and operation debugging
Metallurgical Self-owned Power Plants, Blast Furnace Blowers, High-temperature Power Generation Turbine Units on-site TSI system daily inspection and alarm viewing
Air Separation, Coal Chemicals Plant Key Large Rotating Machinery Safety Monitoring System Local Operation and Maintenance
Series Matching & Comparison Model List
3500/93: Rack integrated LCD screen local display module (this model, early standard configuration)
3500/94: VGA interface display module, requires external display, keyboard, mouse, has stronger expandability
3500/92: Ethernet communication gateway module, TSI data upload to DCS, SIS, System1 upper system

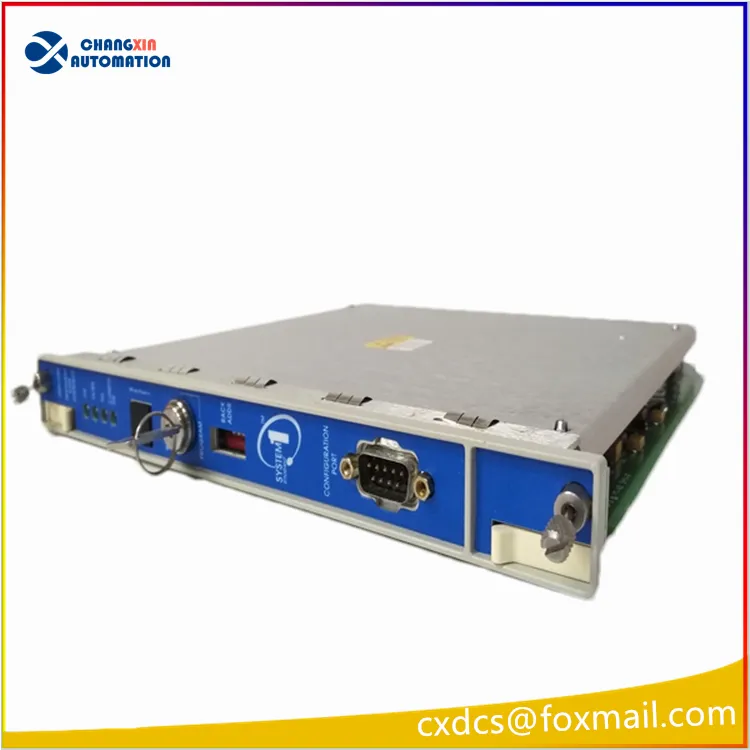

3500/22M: Rack TDI framework interface module, core of internal data bus interaction of the entire machine
3500/40M/42M/45: Vibration, displacement, temperature acquisition monitoring module
3500/34: TMR triple redundant ETS safety trip relay module
Details:
1. All quote are basic on EX-WORK
2. Delivery time: 3-5 days after payment
3. Payment Term:T/T
4. Shipment: EMS, DHL, UPS & FEDEX
5. Price: The more you order ,the lower price you will get
Application industry：
1.Power industry, the elevator industry, parking, automobile, auto ancillary.
2.feed industry, aluminum smelting machines, refrigeration industry.
3.steel industry, combustion control systems, non-ferrous metal smelting.
4.glass industry, construction machinery, textile machinery, water treatment
Bentley 3500 system is used for vibration monitoring and protection of large machinery. The Bentley 3500 system must be equipped with a rack 3500 / 05, a power supply 3500 / 15, and a rack interface module 3500 / 22m,
Bently3500 Bently power supply high voltage AC 220V, spare parts are as follows
127610-01 AC power module
125840-01 high voltage AC power input module (PIM)
125840-02 low voltage AC power input module (PIM)
129486-01 high voltage DC power module
129478-01 high voltage DC power input module (PIM)
133292-01 low voltage DC power module
133300-01 low voltage DC power input module (PIM)
0172025 spare fuse (two types of AC PIM and high voltage DC PIM)
0172045 spare fuse (low voltage DC PIM)
129767-01 power supply operation and maintenance manual
The ordering information and model of Bently 3500 / 15 are as follows:
3500 / 15-axx-bxx-cxx option description
A: Power type (upper notch)
01 low voltage AC (85-132 VAC RMS)
02 high voltage AC (175-264 VAC RMS)
03 high voltage DC (88-140 VDC)
04 low voltage DC (20-30 VDC)
05 universal AC power supply (85-264 VAC RMS) (New)
B: Power type (lower notch)
00 no power supply (only used when single power supply is required)
01 low voltage AC (85-132 VAC RMS)
02 high voltage AC (175-264 VAC RMS)
03 high voltage DC (88-140 VDC)
04 low voltage DC (20-30 VDC)
05 universal AC power supply (85-264 VAC RMS) (New)
C: Approval unit options
00: None
01 CSA/NRTL/C
02 ATEX/IECEx/CSA (Class 1, Zone 2)
Cn China
Specific models are as follows:
3500 / 15 (front panel 127610-01, back panel 125840-01)
3500 / 15-02-02-00, both the upper slot and the lower slot are installed, so it is a dual power supply,
3500 / 15-02-00-00, the upper slot is installed, the lower slot is not installed, so it is a single power supply
3500 / 15-05-05-00, both the upper slot and the lower slot are installed, so it is a dual power supply
The following is the upgraded 3500 / 15 universal AC power module:
3500 / 15 (front panel 106m1079-01, back panel 106m1081-01)
3500 / 15-05-05-00, upper slot and lower slot are installed, so it is a set of dual power supply
3500 / 15-05-00-00, the upper slot is installed, the lower slot is not installed, so it is a single power supply
Send Inquiry to This Supplier
You May Also Like
-
Bently Nevada 330101-23-39-10-12-05 Proximity Probes for Factory AutomationUS$ 10000MOQ: 1 Unit
-
Bently Nevada 330101-00-12-10-01-CN Approach-type ProbeUS$ 10000MOQ: 1 Unit
-
Bently Nevada 330101-00-12-10-01-CN Approach-type ProbeUS$ 10000MOQ: 1 Unit
-
Bently Nevada 3500/22M IN STOCK FOR SELLUS$ 1 - 5000MOQ: 1 Piece
-
BENTLY NEVADA 3500/25 Keyphasor Module IN STOCKUS$ 1 - 5000MOQ: 1 Piece
-

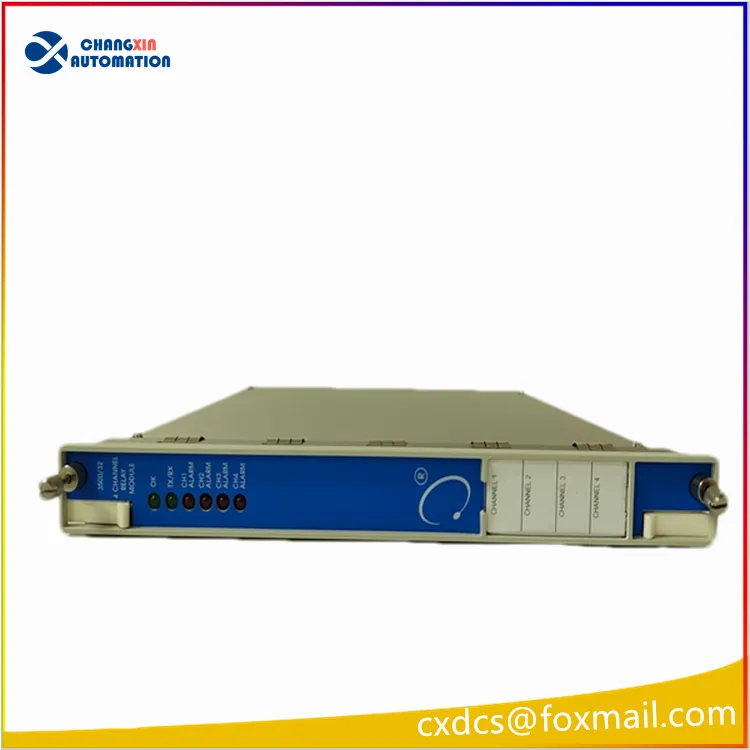

Bently 3500/32 4-channel Relay Module IN STOCKUS$ 1 - 5000MOQ: 1 Piece
-
