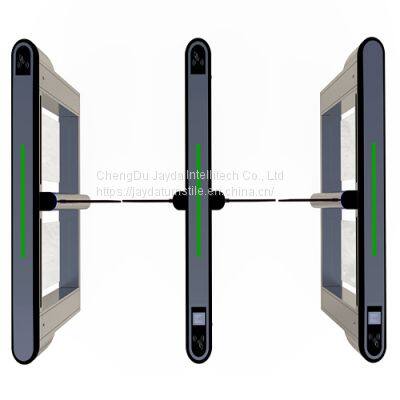

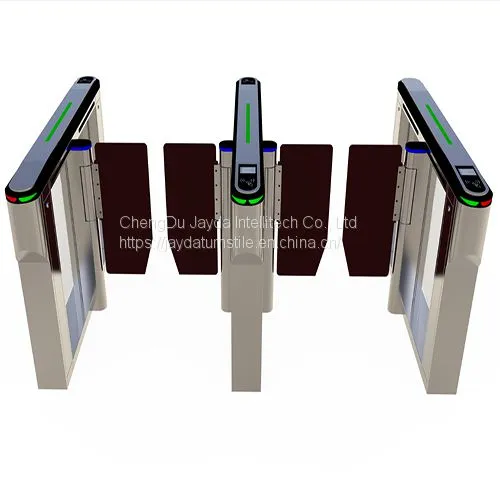

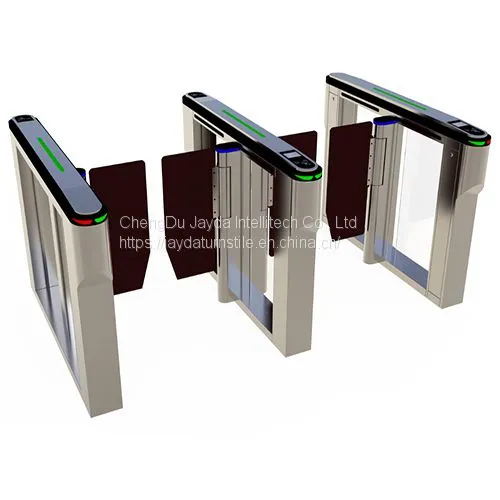

Access control system speed gate turnstile/ security speed gate turnstile/ high speed gate turnstile
- 2000 Piece / Pieces per Month
- Shenzhen, China
- T/T L/C PayPal Other
- 7 days
- Fastlane speedgate turnstile/ fastlane optical turnstile speed gate/ speed gate turnstile
- Automatic speed turnstile gate/ speed gate optical turnstile/ speed gate contactless turnstile
- Sliding gate optical turnstile/ sliding turnstile gate/ opticla sliding turnstile
- Entrance control sliding gate turnstile/ optical sliding gate turnstile/ sliding gate glass turnstile
- Automatic sliding turnstile gate/ sliding barrier optical turnstile/ sliding barrier security turnstile
- Drop-arm motorized turnstile/ security drop-arm turnstile,/ drop-arm optical turnstile
Product Details
Brand Name: | Jayda | Place of Origin: | China | Model Number: | JDSG-27 |
Product Description
Access control system speed gate turnstile, security speed gate turnstile, high speed gate turnstile operates in a fast, smooth and relible way with low power consumption
Access control system speed gate turnstile JDSG-27 is designed with a slim, mordern look and minimal footprint, operating in a fast, smooth and relible way with low power consumption and low noise, being an efficient crowd control solutions for narrow entry areas with high aesthetic and comfort requirements. It adopts unique variable speed transmission mechanism which can precisely control the movement position of speedlane turnstiles, ensuring the movement more accurate and stable. In addition, access control system speed gate turnstile JDSG-27 provides single directional or bi-direction access and flexibly integate with various access control systems.
Featurers
1.Intuitive approach detection
2. Slim tapered housing with ergonomic design and small footprint
3. Precision controlled tempered glass obstacles
4. In case of emergency the obstacles can be unlocked with a simple push to automatically open
5. Electro-mechanical locking to withstand forced entry attempts
6. Silent and smooth in operation
7. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs
8. Wider passages and higher obstacles
9. Glass obstacles up to 1800mm without or with straight or sloping overhang
10. Intelligent user guidance
Applications
Upscale corporate lobbies,
High rise building entrances
Luxury apartment complexes
Universities
Commercial office buildings
Government agencies
Parameters
Housing Material | 1.5mm~2.0mm #304 stainless sheet |
Dimension | 1400 x 160 x 980mm |
Power Supply | AC220V / AC110V, 50/ 60 Hz |
Channel Width | 600~900mm |
Drive Motor | DC 24V brushless motor or servo motor |
Pass Speed | 35 ~45 persons per minute |
Input Interface | Dry contact signal or +12V level signal or DC12V pulse signal |
Rotating Direction | Bi-directional |
Communication interface | RS485 |
Gate open when power failure | Yes |
Open Time | 0.2 second |
Life Cycle | 5 million times |
Working Temperature | -30°C~+70°C |
Working Environments | Indoor, outdoor (with shelter) |
Access Control System Speed Gate Turnstile Design
Access Control System Speed Gate Turnstile System Diagram
Project Cases for Access Control System Speed Gate Turnstile
What is an access control system speed gate turnstile?
Access control system speed gate turnstile, an upgraded touchless turnstile, is a security turnstile or handicap turnstile which provides contactless operation, using optical beam detection and motorized opening/closing to fully automate the entry process. With motorized barriers, the access control turnstiles do not need user to contact when opening and closing. Integrated with temperature check, facial recognition, proximity scanners, or other access control solutions, they can achieve fully touchless functionality.
How does access control system speed gate turnstile work?
Access control system speed gate turnstile, as a touchless turnstile, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take speed turnstile JDSG-27 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDSG-27 fixed on each side of a dual-wing type JDSG-27. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.
Can access control system speed gate turnstile be integrated with 3rd party access control systems ?
Off course, access control system speed gate turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.
What will happen when power off and in emergency situation?
Access control system speed gate turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)
Can access control system speed gate turnstile be used indoor and outdoor?
Off course, access control system speed gate turnstile is made for indoor or outdoor situations. For all Outdoor applications, we use 304 stainless steel to prevent corrosion.
Does access control system speed gate turnstile give access to ADA pedestrians?
Yes, access control system speed gate turnstile provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
