Home > Products > Speedgate Turnstile > Speed gate security turnstile/speed gate touchless optical turnstile/speed gate pedestrian turnstile

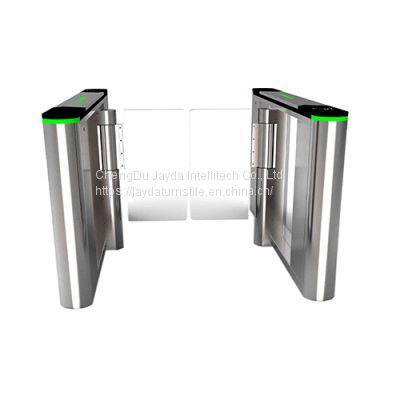

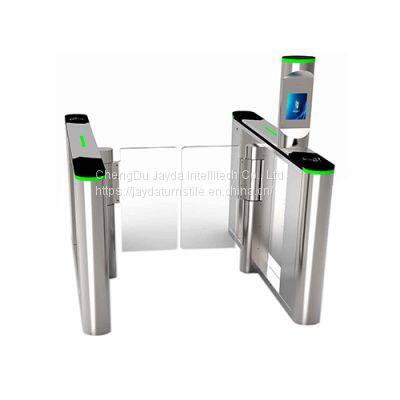

Speed gate security turnstile/speed gate touchless optical turnstile/speed gate pedestrian turnstile
- 1500 Set / Sets per Month
- Shenzhen, China
- T/T L/C PayPal Other
- 7 days
- Glass fastlane contactless turnstile/ security speed turnstile gate/ speed barrier gate turnstile
- Speed barrier gate pedestrian turnstile/ speed gate security turnstile/ optical speed gate turnstile
- Crowd control speed biometric turnstile/ biometric fastlane turnstile speed gate/ speedgate turnstile
- Full height touchless sliding turnstile/ glass sliding turnstile gate/ pedestrian sliding gate turnstile
- Pedestrian sliding turnstile gate/ sliding turnstile barrier gate/ high glass sliding turnstile
- Glass sliding barrier optical turnstile/ sliding speed gate turnstile/ speedlane sliding optical turnstile
Product Details
Brand Name: | Jayda | Place of Origin: | China | Model Number: | JDSG-11 |
Product Description
Reliable speed gate security turnstile , speed gate touchless optical turnstile, speed gate pedestrian turnstile provides slient, fast and smooth operation
Speed gate security turnstile JDSG-11 provides standard (600mm) and wide (900mm) lane widths to meet different application requirements, and the height of tempered glass panels 1.0m, 1.2m or 1.8m are available to provide increasing levels of security as required. Operating in a fast, smooth, silent and reliable way, security speed gate turnstile JDSG-11 offers an ideal contactless solution for access control and comfortable passage in an intense flow of people, and speed gate security turnstile JDSG-11 is widely used in upscale corporate lobbies, high rise building entrances, universities, and anywhere else where autonomous entry and aesthetics are important.
Featurers
1.Intuitive approach detection
2. Slim tapered housing with ergonomic design and small footprint
3. Precision controlled tempered glass obstacles
4. In case of emergency the obstacles can be unlocked with a simple push to automatically open
5. Electro-mechanical locking to withstand forced entry attempts
6. Silent and smooth in operation
7. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs
8. Wider passages and higher obstacles
9. Glass obstacles up to 1800mm without or with straight or sloping overhang
10. Intelligent user guidance
Applications
Upscale corporate lobbies,
High rise building entrances
Luxury apartment complexes
Universities
Commercial office buildings
Government agencies
Parameters
Housing Material | 1.5mm~2.0mm #304 stainless sheet |
Dimension | 1400 x 180 x 980mm |
Power Supply | AC220V / AC110V, 50/ 60 Hz |
Channel Width | 600~900mm |
Drive Motor | DC 24V brushless motor or servo motor |
Pass Speed | 30 ~35 persons per minute |
Input Interface | Dry contact signal or +12V level signal or DC12V pulse signal |
Rotating Direction | Bi-directional |
Communication interface | RS485 |
Gate open when power failure | Yes |
Open Time | 0.2 second |
Life Cycle | 5 million times |
Working Temperature | -30°C~+70°C |
Working Environments | Indoor, outdoor (with shelter) |
Speed Gate Security Turnstile Design
Speed Gate Security Turnstile Dimensions
Speed Gate Security Turnstile System Diagram
Project Cases for Speed Gate Security Turnstile
What is speed gate security turnstile?
Speed gate security turnstile, an upgraded touchless turnstile, is a security turnstile or handicap turnstile which provides contactless operation, using optical beam detection and motorized opening/closing to fully automate the entry process. With motorized barriers, the access control turnstiles do not need user to contact when opening and closing. Integrated with temperature check, facial recognition, proximity scanners, or other access control solutions, they can achieve fully touchless functionality.
How does speed gate security turnstile?

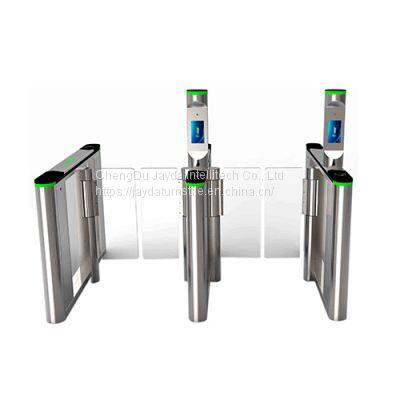

Speed gate security turnstile, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take speed turnstile JDSG-27 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDSG-27 fixed on each side of a dual-wing type JDSG-27. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.
Can speed gate security turnstile be integrated with 3rd party access control systems ?
Off course, speed gate security turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.
What will happen when power off and in emergency situation?
Speed gate security turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)
Can speed gate security turnstile be used indoor and outdoor?
Off course, speed gate security turnstile is made for indoor or outdoor situations. For all outdoor applications, we use 304 stainless steel to prevent corrosion.
Does speed gate security turnstile give access to ADA pedestrians?
Yes, speed gate security turnstile provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
