Home > Products > Sliding Optical Turnstile > Automatic sliding turnstile gate/ sliding barrier optical turnstile/ sliding barrier security turnstile

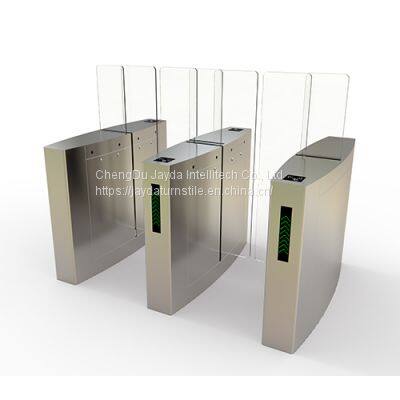

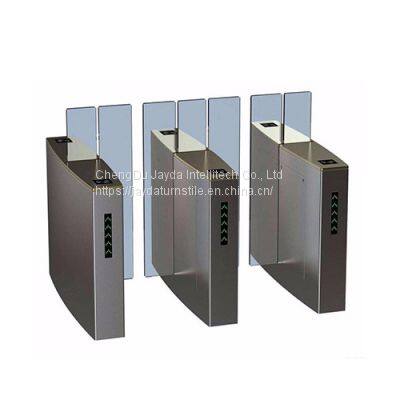

Automatic sliding turnstile gate/ sliding barrier optical turnstile/ sliding barrier security turnstile
- 2000 Piece / Pieces per Month
- Shenzhen, China
- T/T L/C PayPal Other
- 7 days
- Drop-arm motorized turnstile/ security drop-arm turnstile,/ drop-arm optical turnstile
- Drop arm pedestrian turnstile, optical arm drop turnstile, arm drop biometric turnstile
- Automatic drop arm biometric turnstile/ optical drop arm turnstile/ security drop arm turnstile
- Full height security turnstile/ full height rotor turnstiles/ motorised double full-height turnstile
- Automatic full height stadium turnstile/ double lane full-height turnstile/ full height biometric turnstile gate
- Biometric full height electric turnstile/ full height singel lane turnstile/ full-height biometric turnstile
Product Details
Brand Name: | Jayda | Place of Origin: | China | Model Number: | JDPYZ-6 |
Product Description
#304 stainles automatic sliding turnstile gate, sliding barrier optical turnstile, sliding barrier security turnstile operates in a fast, accurate, stable and quiete way with low-power consumption
Automatic sliding turnstile gate JDPYZ-6 is a classic type of optical turnstiles developd to control the access of pedestrians under high security requirements, which comes with high-density matrix of infrared beams and fast throghtput, effeciently guiding large groupes of pedestrians from entry through the authorization and onto the secured side In order. The baffle height of sliding barrier security turnstile can be max 1800mm to make climing over them more difficuty for high security. Finally, automatic sliding turnstile gate JDPYZ-6 operates in a fast, accurate, stable and quiet way with low-power consumption, and a longer service life.
Features
1. Intelligent user guidance
2. Accurate tailgating detection
3. Precision controlled movement of obstacles and detection of all obstructions
4. In case of power failure, doors will automatically retract for a clear passage, making fast evacuation
5. Dynamic and predictive algorithms ensuring top of the class performance for fraud detection
6. Precise, well-lit pictograms for intuitive user experience and ergonomic
8. Smooth integration of proximity, magnetic card readers, biometric scanners and other user authentication systems
9. Run at rather fast speed
10. Transparent and elegant design
Applications
Upscale corporate lobbies,
High rise building entrances
Luxury apartment complexes
Commercial office buildings
Government agencies
Educational institute
Parameters
Housing Material | 1.2mm~2.0mm #304 stainless sheet |
Dimension | 1400 x 350 x 980mm |
Power Supply | AC220V / AC110V, 50/ 60 Hz |
Lane Width | 500mm~550mm |
Drive Motor | DC 24V brush motor |
Pass Speed | 35 persons per minute |
Input Interface | Dry contact signal or +12V level signal or DC12V pulse signal |
Rotating Direction | Bi-directional |
Communication Interface | RS485 |
Rest Time after Power On | 3 seconds |
Open Time | 1 second |
Life Cycle | 3 million times |
Working Temperature | -30°C~+70°C |
Working Environments | Indoor, outdoor (with shelter) |
Automatic Sliding Turnstile Gate Design
Automatic Sliding Turnstile Gate System Diagram
Project Cases for Automatic Sliding Turnstile Gate
How does an automatic sliding turnstile gate works?
Automatic sliding turnstile gate is equipped with sliding flaps closed strait horizontally which operate in two-directional movements. When closed, the sliding flaps meet each other to form a barrier between restricted area and public area. When opened, the wings fully retract into the cabinet, creating free passage. It is supplied with infrared sensor to ensure that only one person enters for each authorized credential at one time. The pedestrians shows their valid credential before entry, the optical sliding turnstile will open for free access. Closure takes place immediately after passage or after and adjustable holding-open time, preventing unauthorized passage or tailgating. The opening time and closing time can be progranned depened on the height of the sliding faps. In case of power failure of in emergency, the obstacles can be unlocked with a simple push to automatically open.
Characteristics of an automatic sliding turnstile gate entrance system
1. Automatic Barrier Operation: automatic sliding turnstile gate is touchless turnstile equipped with DC motors which automatically drive barriers out of the way at requested direction to grant hand-free access, As hand-free turnstile, it must be able to function without any physical user input, and automatically open and close without any manual operation by the pedestrians
2. Proper Social Distancing: Though automatic sliding turnstile gate operates completely autonomously, it is usually for the organizations with turnstile access control systems at their entryways to have a security guard for providing assistance when necessary, it is crucial to ensure the employs are stationed a certain distance away from the touchless turnstile lane to maintain proper social distance.
3. Contactless Credential Checking: Although automatic sliding turnstile gate is completely contactless device, it is stile required to be integrated with a touch-free credential checking system to truly provide a hands-free entry experience. Some of these systems include iris scanners, facial recognition software, temperature sensors, and proximity scanners.
Can automatic sliding turnstile gate be integrated with 3rd party access control systems ?
Off course, automatic sliding turnstile gate is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.
What will happen when power off and in emergency situation?
Automatic sliding turnstile gate instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)
Can automatic sliding turnstile gate be used indoor and outdoor?
Off course, automatic sliding turnstile gate is made for indoor or outdoor situations. For outdoor applications, there is should be shelter above.
Can automatic sliding turnstile gate be operated manually or remotely?
Automatic sliding turnstile gate is to be operated by the user at the turnstile. You can have a person who monitors the security turnstile from the surveillance terminal.
