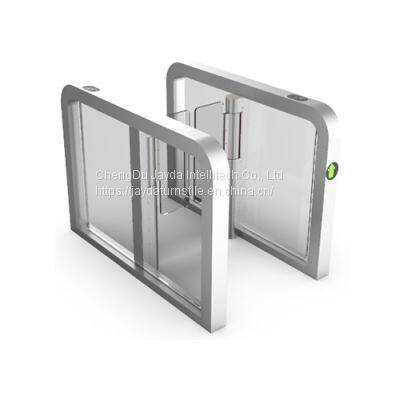

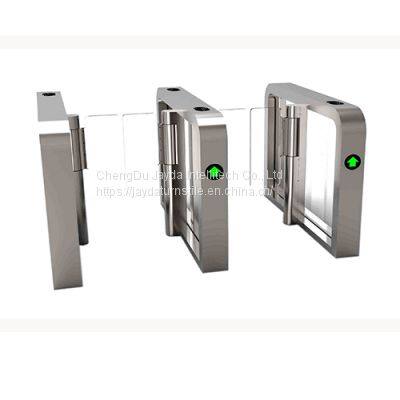

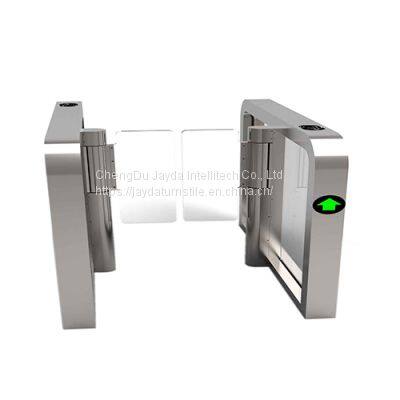

Glass Fastlane Contactless Turnstile/ Security Speed Turnstile Gate/ Speed Barrier Gate Turnstile

• #304 stainless glass fastlane contactless turnstile,  security speed turnstile gate, speed barrier gate turnstile comes with transparent and elegant design


•


• Glass fastlane contactless turnstile JDSG-10 provides standard (600mm) and wide (900mm) lane widths, and the height of tempered glass panels 1.0m, 1.2m or 1.8m are available to provide increasing levels of security as required. Operating In a fast, smooth, silent and reliable way, glass fastlane contactless turnstile JDSG-10 offers an ideal contactless solution for access control and comfortable passage in an intense flow of people, and it is widely used in upscale corporate lobbies, high rise building entrances, luxury apartment complexes, and anywhere else where autonomous entry and aesthetics are important.




Featurers
1.Intuitive approach detection
2. Slim tapered housing with ergonomic design and small footprint
3. Precision controlled tempered glass obstacles
4. In case of emergency the obstacles can be unlocked with a simple push to automatically open
5. Electro-mechanical locking to withstand forced entry attempts
6. Silent and smooth in operation
7. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs
8. Wider passages and higher obstacles
9. Glass obstacles up to 1800mm without or with straight or sloping overhang
10. Intelligent user guidance

Applications
Upscale corporate lobbies,
High rise building entrances
Luxury apartment complexes
Universities
Commercial office buildings
Government agencies

Parameters

Glass Fastlane Contactless Turnstile Design

Glass Fastlane Contactless Turnstile Dimension

Glass Fastlane Contactless Turnstile System Diagram

Project Cases for Glass Fastlane Contactless Turnstile

What is glass fastlane contactless turnstile?
Glass fastlane contactless turnstile, an upgraded touchless turnstile, is a security turnstile or handicap turnstile which provides contactless operation, using optical beam detection and motorized opening/closing to fully automate the entry process. With motorized barriers, the access control turnstiles do not need user to contact when opening and closing. Integrated with temperature check, facial recognition, proximity scanners, or other access control solutions, they can achieve fully touchless functionality.

How does glass fastlane contactless turnstile?
Glass fastlane contactless turnstile, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take speed turnstile JDSG-27 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDSG-27 fixed on each side of a dual-wing type JDSG-27. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.

Can glass fastlane contactless turnstile be integrated with 3rd party access control systems ?
Off course,  glass fastlane contactless turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power  off and in emergency situation?
Glass fastlane contactless turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can glass fastlane contactless turnstile be used indoor and outdoor?
Off course, glass fastlane contactless turnstile is made for indoor or outdoor situations. For all outdoor applications, we use 304 stainless steel to prevent corrosion.

Does glass fastlane contactless turnstile give access to ADA pedestrians?
Yes, glass fastlane contactless turnstile provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
