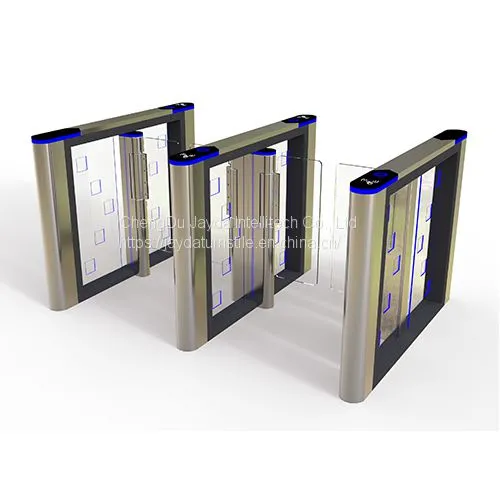

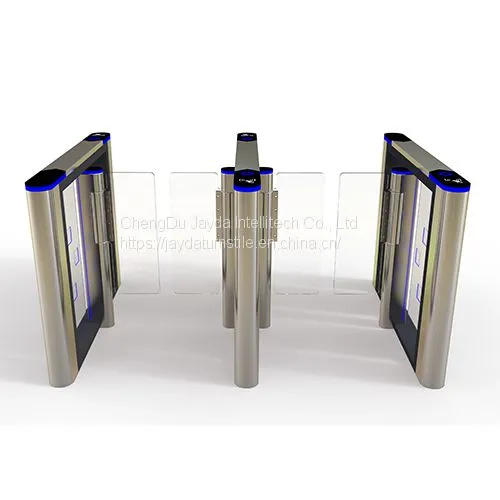

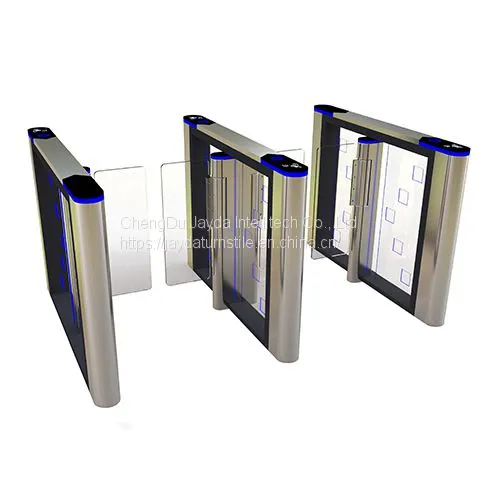

Speed Gate Touchless Slim Turnstile/ Security Speed Gate Turnstile/ Waist Height Speed Gate Turnstile

• Reliable & affordable speed gate touchless slim turnstile, security speed gate turnstile, waist height speed gate turnstile offers accurate and stable movement of security turnstile


•


• Speed gate touchless slim turnstile JDSG-20 is designed with a slim, mordern look and minimal footprint, operating in a fast, smooth and relible way with low power consumption and low noise, being an efficient crowd control solutions for narrow entry areas with high aesthetic and comfort requirements.  It adopts unique variable speed transmission mechanism which can precisely control the movement position of speedlane turnstile, ensuring the movement more accurate and stable. In addition, speed gate touchless slim turnstile JDSG-20 provides single directional or bi-direction access and flexibly integate with various access control systems.


Featurers
1.Intuitive approach detection
2. Slim tapered housing with ergonomic design and small footprint
3. Precision controlled tempered glass obstacles
4. In case of emergency the obstacles can be unlocked with a simple push to automatically open
5. Electro-mechanical locking to withstand forced entry attempts
6. Silent and smooth in operation
7. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs
8. Wider passages and higher obstacles
9. Glass obstacles up to 1800mm without or with straight or sloping overhang
10. Intelligent user guidance

Applications
Upscale corporate lobbies,
High rise building entrances
Luxury apartment complexes
Universities
Commercial office buildings
Government agencies

Parameters

Speed Gate Touchless Slim Turnstile Design

Speed Gate Touchless Slim Turnstile System Diagram

Project Cases for Speed Gate Touchless Slim Turnstile

What is a speed gate touchless slim turnstile ?
Speed gate touchless slim turnstile, an upgraded touchless turnstile, is a security turnstile or handicap turnstile which provides contactless operation, using optical beam detection and motorized opening/closing to fully automate the entry process. With motorized barriers, the access control turnstiles do not need user to contact when opening and closing. Integrated with temperature check, facial recognition, proximity scanners, or other access control solutions, they can achieve fully touchless functionality.

How does speed gate touchless slim turnstile work?
Speed gate touchless slim turnstile, as a touchless turnstile, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take speed turnstile JDSG-27 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDSG-27 fixed on each side of a dual-wing type JDSG-27. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.

Can speed gate touchless slim turnstile be integrated with 3rd party access control systems ?
Off course,  speed gate touchless slim turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.

What will happen when power  off and in emergency situation?
Speed gate touchless slim turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)

Can speed gate touchless slim turnstile be used indoor and outdoor?
Off course, speed gate touchless slim turnstile is made for indoor or outdoor situations. For all outdoor applications, we use 304 stainless steel to prevent corrosion.

Does speed gate touchless slim turnstile give access to ADA pedestrians?
Yes, speed gate touchless slim turnstile provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
