Jinan Hopetool CNC Equipment Co., Ltd.: Jinan, Shandong, China; Main products: CNC router, Laser cutting machine, laser engraving machine

Home > Products > Rotary Axis CNC Router > 4 Heads Cylindrical Cnc Router

4 Heads Cylindrical Cnc Router

FOB Price

US$ 4000 - 4500 / Set

1 Set(Min. Order)

Port Qingdao Port
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal Cash
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Hopetool	Place of Origin	China
Model Number	HT-1218-4R	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Product Description

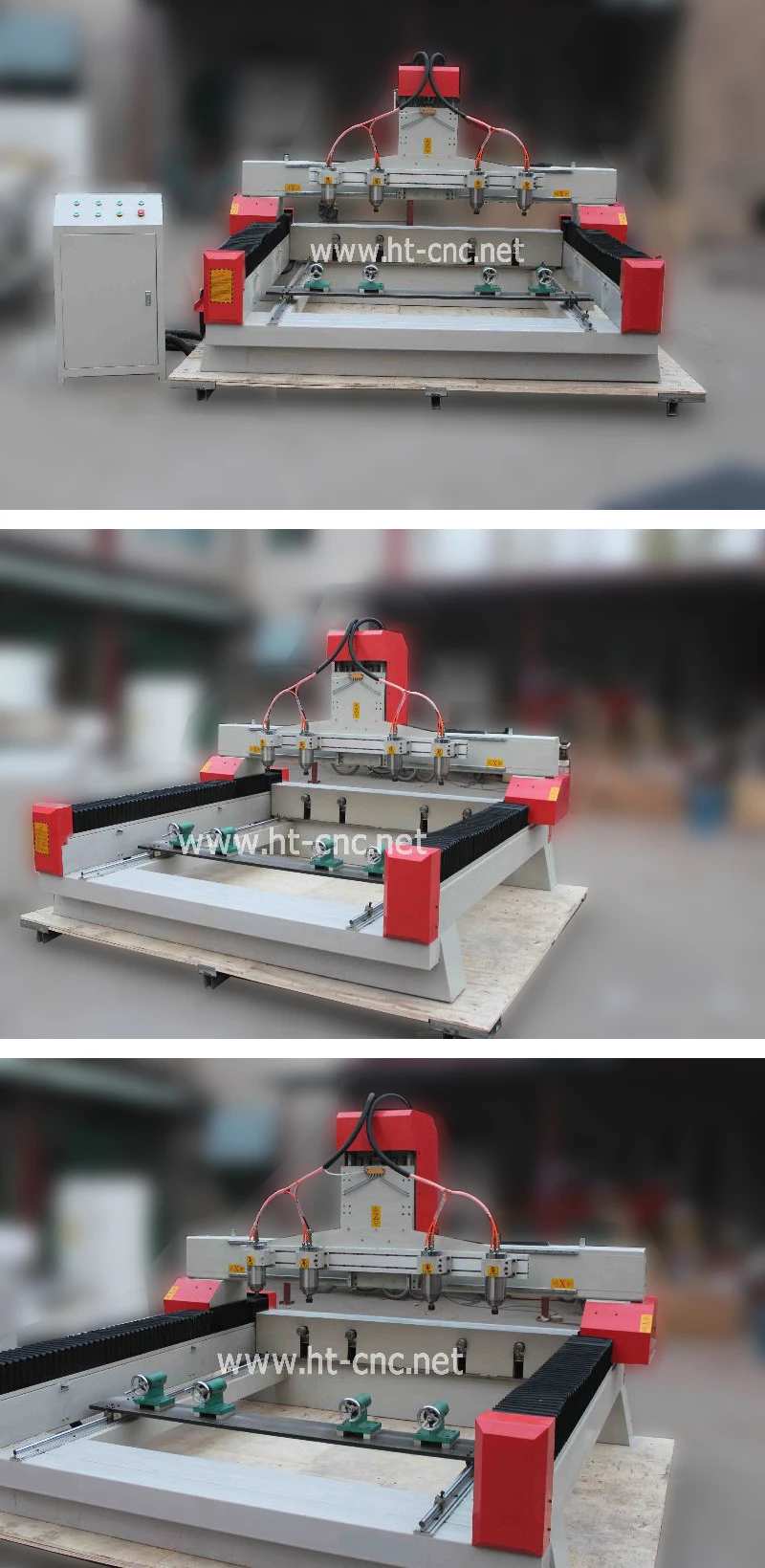

4 heads cylindrical cnc router

Product Description

Feature:

1. With 4 axises,Single Rotary, which can do any cylinder's engraving and cutting, milling, the processed cylinder diameter can be increased to 500mm, length can be 2400mm.

2.With Scanner or designed photo, it can do any 3D Engraving

3.Has the rotary which is used for engraving cylinder workpiece.

4.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.

5.Has the function of re-carving after break point and power failure.

6.Has the function of forecasting process time.

7. Adopting advanced DSP system with USB connection, operated with the handle,

8.Adopting water cooling system, it can provide good cooling effect when carving flinty materials.

9. Professional used for making : any kind of wood cylinder , foam cylinder Engraving and Milling.

Applicable industries:

Balustrade,furniture legs,stair railing ,cylinder items,handrail,desk or chair legs,teatray,The human body,avatar,3D cylinder mold,and a variety of rotational symmetry.

Wood processing:

processing of various furniture such as door, window, cabinet, furniture, craft wood door, screen and so on.

Applicable materials:

Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.

Processing effect:

It can manufacture the following effects: engraving, cutting, milling, drilling, relief, shadow, enchase and so on.

Technical Parameter

Description	Parameter
X,Y,Z Effective Working Table Area	1200mm1800mm300mm
Rotary Max.Diameer	300mm
Rotary Max.Length	1800mm
Table Size	1450mm*2000mm
Resolution	0.03mm

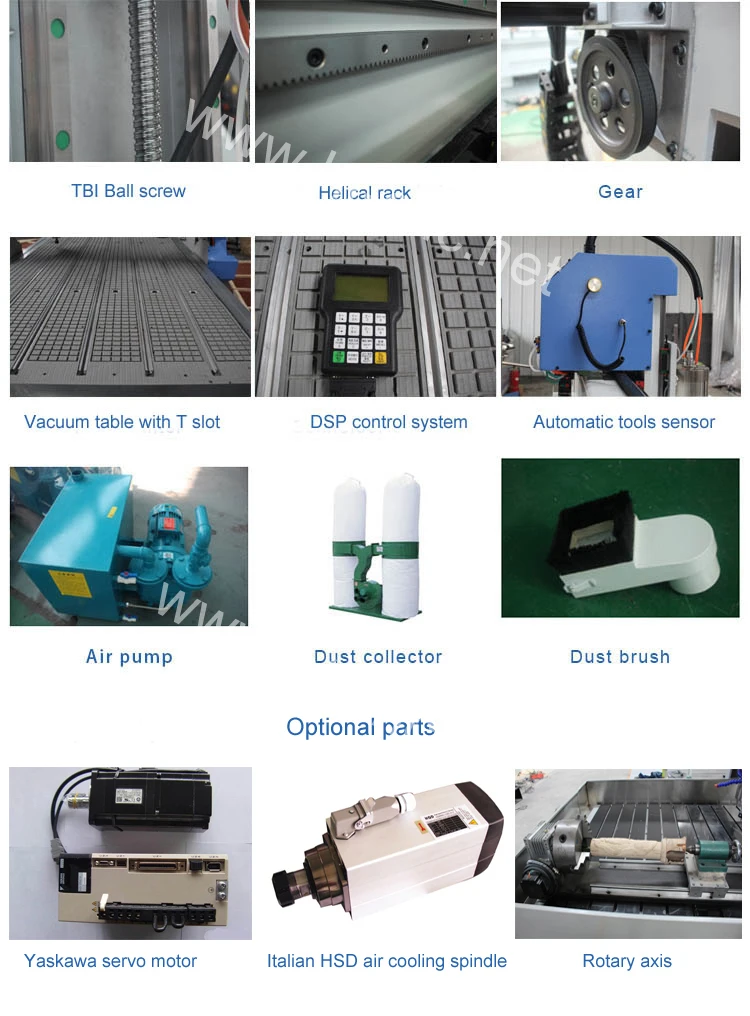

Lathe Structure	Seamless welded steel structure
X,Y Structure	Rack and pinion transmission, Hiwin square guide rail
Z Structure	Germany rolling ball screw, Hiwin square guide rail
Max. Idling Speed	35m/min
Single Spindle Power	2.2 KW water cooling spindle
Spindle Rotate Speed	0-24000r/min, variable speed
Working Voltage	AC380V/50Hz
Working Mode	stepper(servo)
Command	G code (HPGL,U00,mmg,plt)
Operating System	NC Studio control
Diameter of cutter	φ3.175-φ12.7mm
Dust-collect Function	Yes
Work-holding	By clamp
Software	Type 3, ArtCam,powermill, Wentai
Packing size	3900mm2280mm2260mm
Net Weight	1800KG

Company Information

FAQ

Q1.How to get the most suitable machine and best price Please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?The payment is 30% or 50% T/T or  trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?The proucing time is about 10-20 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

Q5.How about your after-sales service?we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
