Characteristic

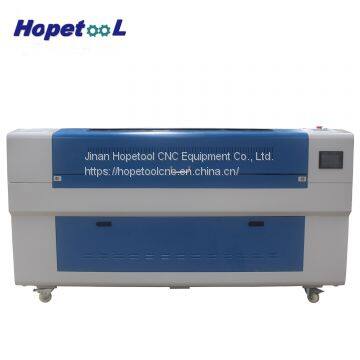

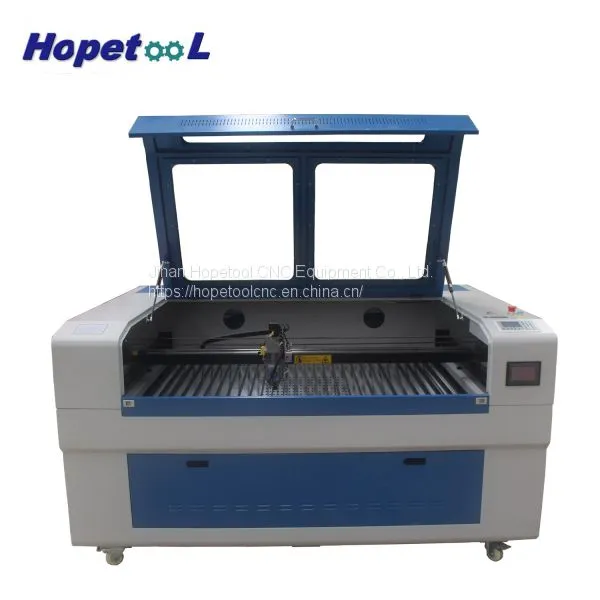

This type machine is a kind of laser engraving machine system equipped with Co2 laser tube,it is used to cut Metal and nonmetal such as acrylic, PVC, rubber sheet, plastic, wood, bamboo, leather, cloth, double-color board, etc.
Performance parameter
Model | Laser cutting machine(HT-1390) |
Working area | 130cm*90cm / 47in*35in |
Equipment Dimension | 175cm*131cm*107cm69in*52in*42in(L*W*H) |
Laser power | 150/180/280/300W |
Laser type | CO2 sealed laser tube,water-cooled |
Engraving speed | 0-6000cm/min |
Cutting speed | 0-5000cm/min |
Power supply | 220V/50HZ,110V/60HZ |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | stepper motor |
Net Weight | 400kg |
Optional parts | UP-down worktble,Rotary axis |
Applicable material | Acrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood ,metal,etc. |
Power and cutting thickness
W6(150W) | W8(180W) | Yongli 280W | Yongli 300W | |
acrylic | 20mm | 25mm | 30mm | 30mm |
plywood | 15mm | 20mm | 20mm | 20mm |
MDF | 10mm | 15mm | 20mm | 20mm |
stainless steel | 1mm | 2mm | 3mm | 3mm |
carbon steel | 1.5mm | 2mm | 3mm | 3mm |
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
3.Our engineer can go to customer's factory training.
Warranty and After service
1. Our warranty is 2 counting from the date when the Machine arrives at the port of
destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help.
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
